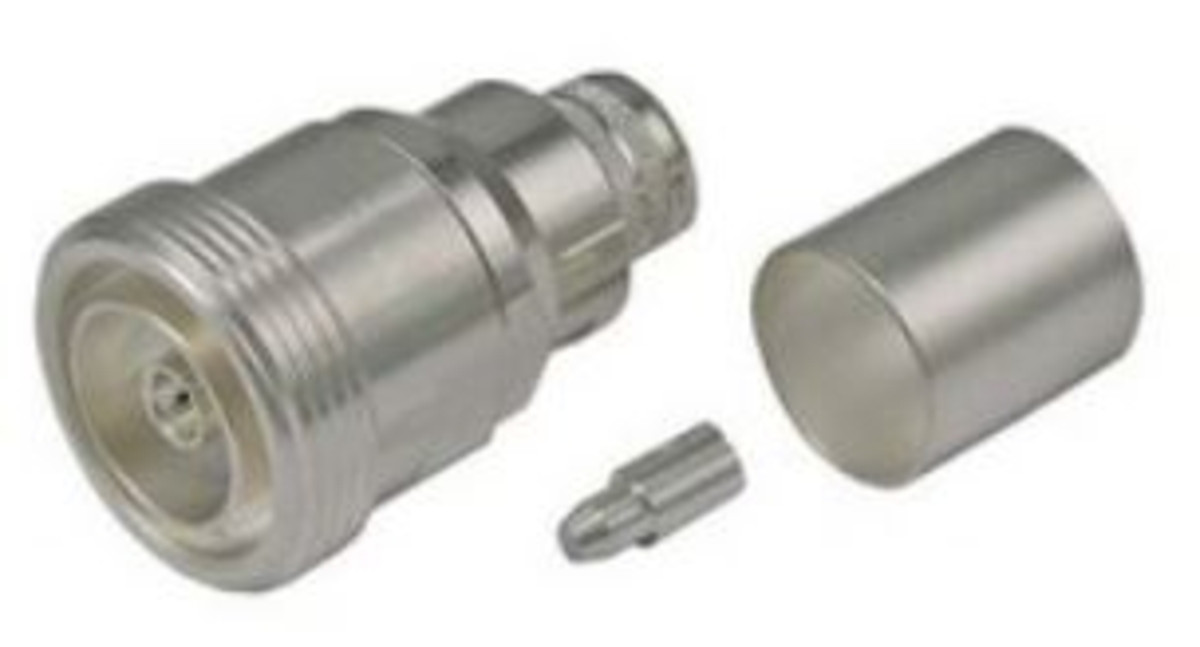

Description
7-16 DIN connectors feature a screw lock for performance where vibration resistance and environmental performance is important. The characteristic impedance is 50 ohm. They provide excellent performance for return loss and intermodulation distortion up to 7.5GHz.
Specifications:
| Cable Type Connectors | RG213 |
| Thermal Shock | MIL-STD-107 Test Cond B |
| Salt Spray | MIL-STD-101 Test Cond B |
| Cable Retention | 80 lbs min |
| Coupling Nut Retention | 60lbs Max |
| Durability | 500 matings |
| Mating | M29 x 1.5 threaded coupling |
| Outer Contact | Crimp |
| Centre Contact | Crimp |
| Vibration | MIL-STD-202 Test Cond B |
| Cable Type | RG213 |
| Operational Temperature Range | -55° to 155° C |
| Connector | 7-16 DIN(F) |
| VSWR | 1.3:1 max |
| Brand | Pulse |
| Weight [kg] | 0 |
| Component Type | Connector |
