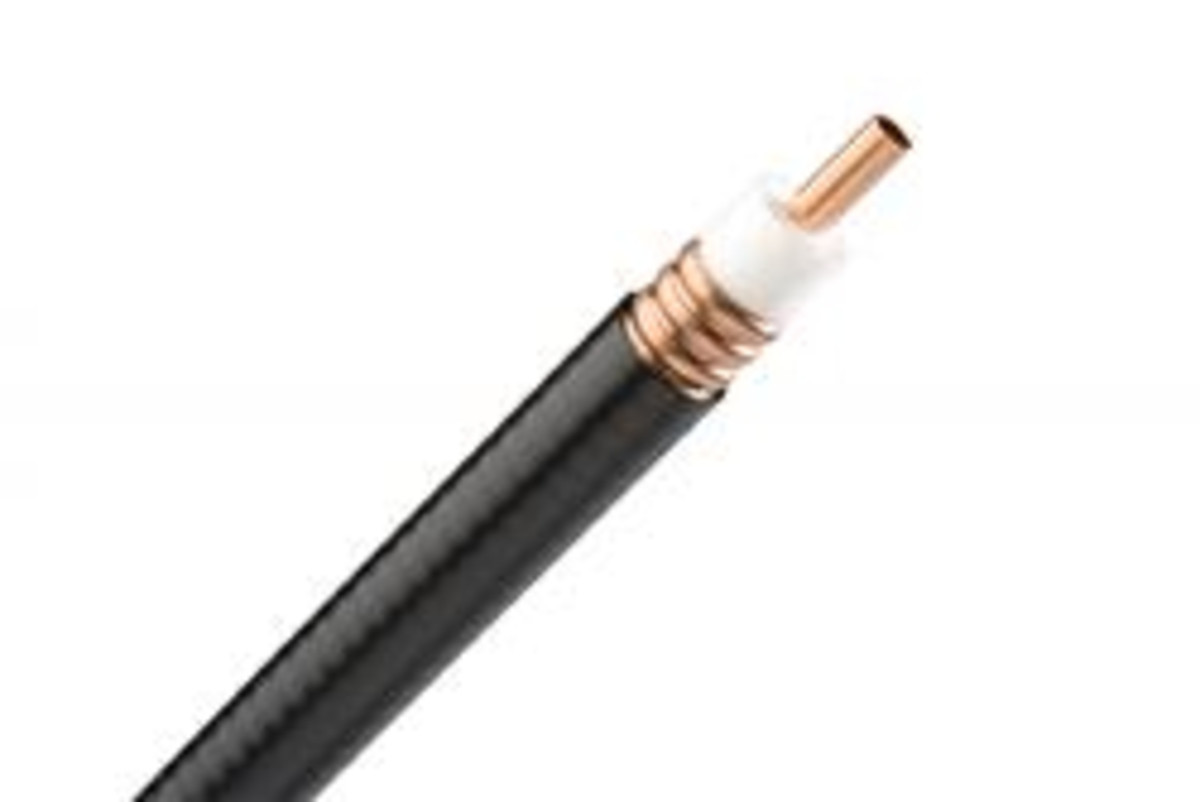

Description
Flexibility: Standard
Jacket Colour: Black
Diameter Over Dielectric: 24.13 mm | 0.95 in
Diameter Over Jacket: 27.991 mm | 1.102 in
Inner Conductor OD: 9.4488 mm | 0.372 in
Outer Conductor OD: 25.4 mm | 1 in
Nominal Size: 7/8″
Cable Impedance: 50 ohms ±1 ohm
Capacitance: 73 pF/m | 22.25 pF/ft
dc Resistance, Inner Conductor: 2.888 ohms/km | 0.88 ohms/kft
dc Resistance, Outer Conductor: 1.53 ohms/km | 0.466 ohms/kft
dc Test Voltage: 6000 V
Inductance: 0.184 µH/m | 0.056 µH/ft
Insulation Resistance: 100000 MOhms-km
Jacket Spark Test Voltage (rms): 8000 V
Operating Frequency Band: 1 – 5000 MHz
Peak Power: 91 kW
Velocity: 90%
Specifications:
| Cable Type Connectors | AVA5-50 |
| Attenuation Per 30m MHz | 1.08 dB |
| Shield | No.: 1 Type: Corrugated Solid BC Coverage: 100% |
| Type of jacket | Non-halogenated – Fire Retardant Polyolefin |
| Nominal Velocity | 91.0% |
| Jacket Outer Dimension mm | 27.94 |
| Impedance | 50 |
| Dielectric | Low-Density Polyethylene (Foam) |
| Centre Conductor | 1 x BC (Hollow) 9.4mm |
| Cable Type | 7/8″ |
| Brand | Commscope |
| Component Type | Cable |
