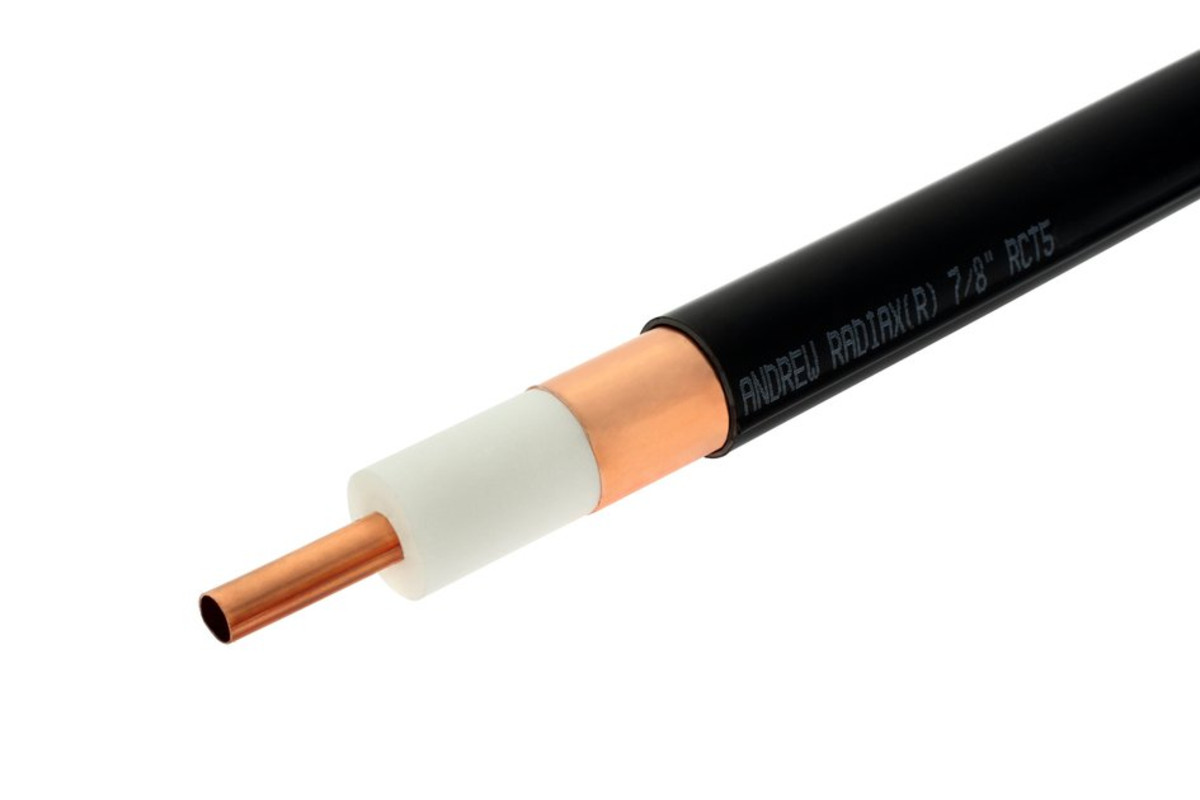

Description

General Specifications
Polarization: Vertical
Cable Type: Coupled Mode Series
Jacket Colour: Black


Dimensions
Diameter Over Jacket, maximum: 27.686 mm | 1.09 in
Inner Conductor OD: 9.449 mm | 0.372 in
Outer Conductor OD: 24.13 mm | 0.95 in
Nominal Size:7/8 in
Recommended Distance from the Wall: 101.6 mm | 4 in
Recommended Hanger Spacing: 1 m | 3.281 ft

Electrical Specifications
Attenuation Test Method: IEC 61196-4
Attenuation Tolerance: ±5%
Cable Impedance: 50 ohm ±2 ohm
dc Resistance, Inner Conductor: 1.435 ohms/km | 0.437 ohms/kft
dc Resistance, Outer Conductor: 3.4 ohms/km | 1.036 ohms/kft
dc Test Voltage: 6000 V
Insulation Resistance: 100000 MOhms-km
Jacket Spark Test Voltage (rms): 8000 V
Operating Frequency Band: 50 – 2800 MHz
Peak Power: 91 kW
Velocity: 91 %
VSWR Installed, typical:
1700–2700 MHz: 1.3799999952316284
50–960 MHz: 1.2999999523162842
VSWR on Reel, typical: 1.4299999475479126
