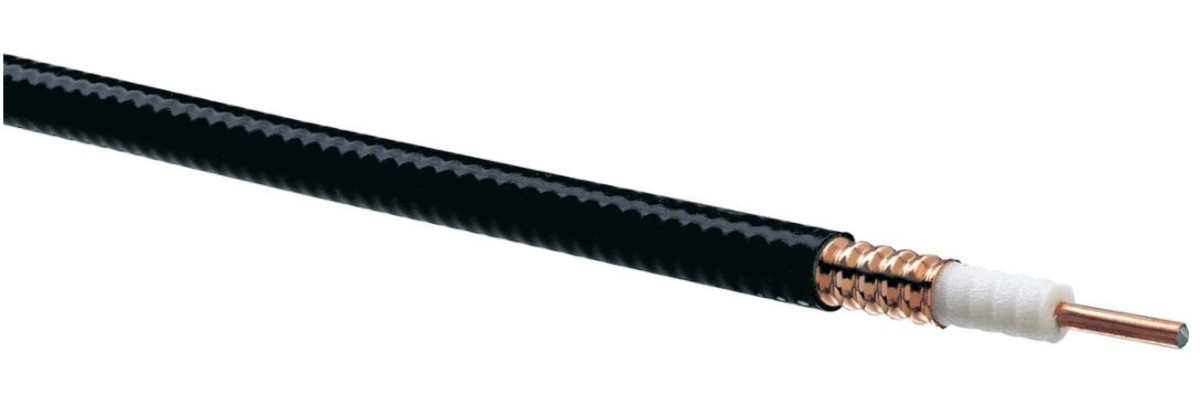

Description

Flexibility: Standard
Jacket Colour: Black
Diameter Over Dielectric: 18.034 mm
Diameter Over Jacket: 22.098 mm
Inner Conductor OD: 7.112 mm
Outer Conductor OD: 19.812 mm
Nominal Size: 5/8″

Cable Impedance: 50 ohm ±1 ohm
Capacitance: 76 pF/m | 23.165 pF/ft
dc Resistance, Inner Conductor: 0.722 ohms/km | 0.22 ohms/kft
dc Resistance, Outer Conductor: 1.378 ohms/km | 0.42 ohms/kft
dc Test Voltage: 5000 V
Inductance: 0.187 µH/m | 0.057 µH/ft
Insulation Resistance: 100000 MOhms-km
Jacket Spark Test Voltage (rms): 8000 V
Operating Frequency Band: 1 – 6100 MHz
Peak Power: 62 kW
Velocity: 88%
