Description

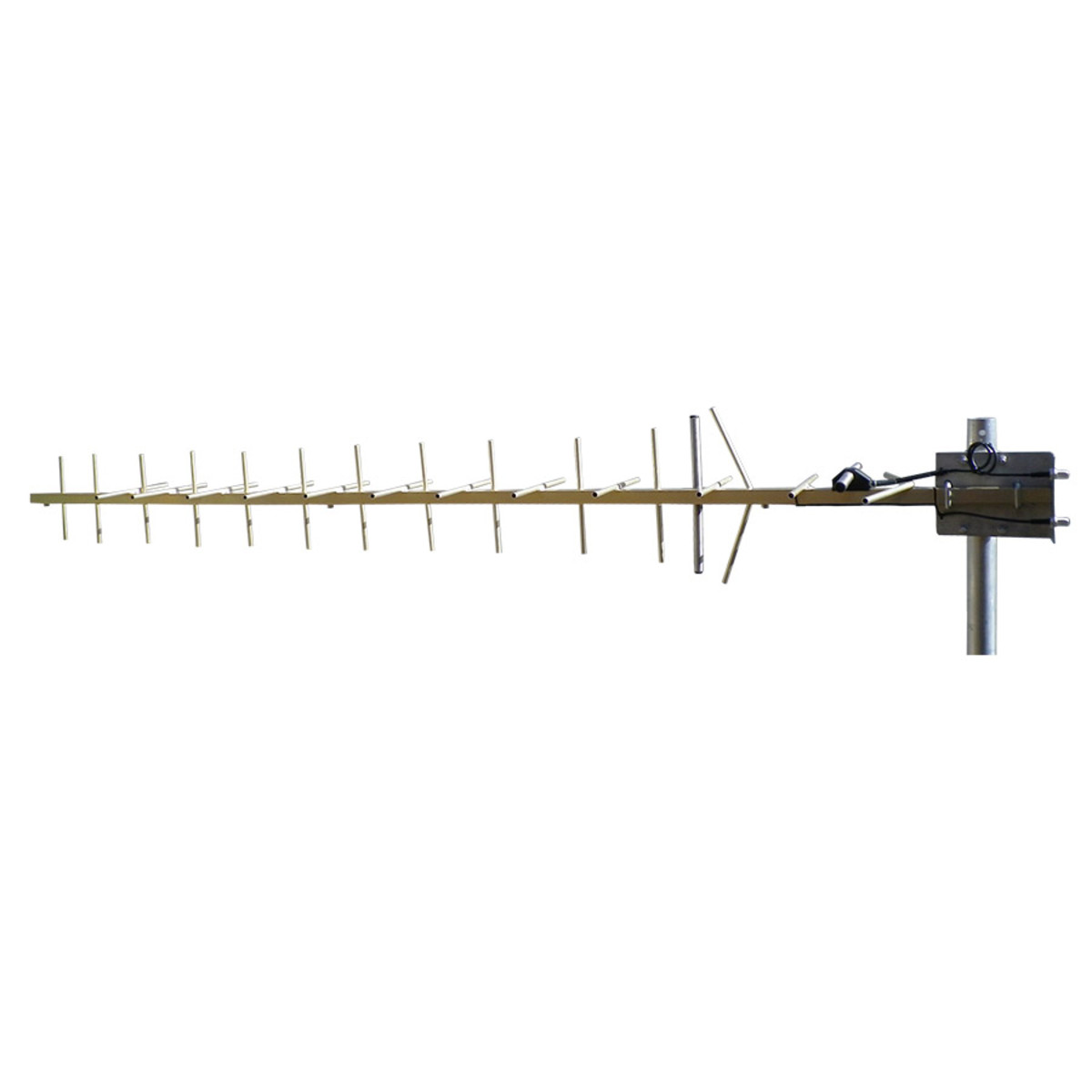

Features: YCP4047 series antennas are a crossed polarized Yagi providing outstanding isolation and Multiple Input/Multiple Output (MIMO) performance at frequencies from 400-470MHz. They are ideally suited for point-to-point applications in RF control, short or long-haul links, and other applications requiring directional MIMO antennas. The YCP4047 design has been optimized to offer lower VSWR and reduced pattern distortion. Two easily field-assembled sections allow convenient handling and cost-efficient shipping volume. The unique dipole element design simplifies the assembly process. When assembled, the vertical and horizontal polarised elements are perpendicular to each other. These models include stainless steel mounting clamps to suit typical installations. Features: • Suitable for MIMO applications • Wideband coverage from 400-470MHz • Excellent front to back ratio • Outstanding polarisation isolation • Two easily field assembled sections minimizes shipping volume • Alodined finish provides excellent reliability
Specifications:
| Frequency Range | 400 – 470 |
| Base Gain | 8 to 11 dBd |
| Power w | 100 |
| Nominal Gain Dbi | 13.2 |
| VSWR | <1.5:1 |
| Termination | Bulkhead mounted N-Type (F) |
| Construction | Alodined all welded aluminium |
| Tuned bandwidth | Full band |
| Horizontal Beamwidth | 36° |
| Front Back ratio dB | 20 |
| Length [mm] | 2480 |
| Brand | RFI |
| Weight [kg] | 3.5 |
