Description
Features: All of these antennas can be mounted to a standard 5/16 – 26 TPI base such as the MB9, MB10 or MB12. They can utilize the full line of accessories and fittings available for such applications.

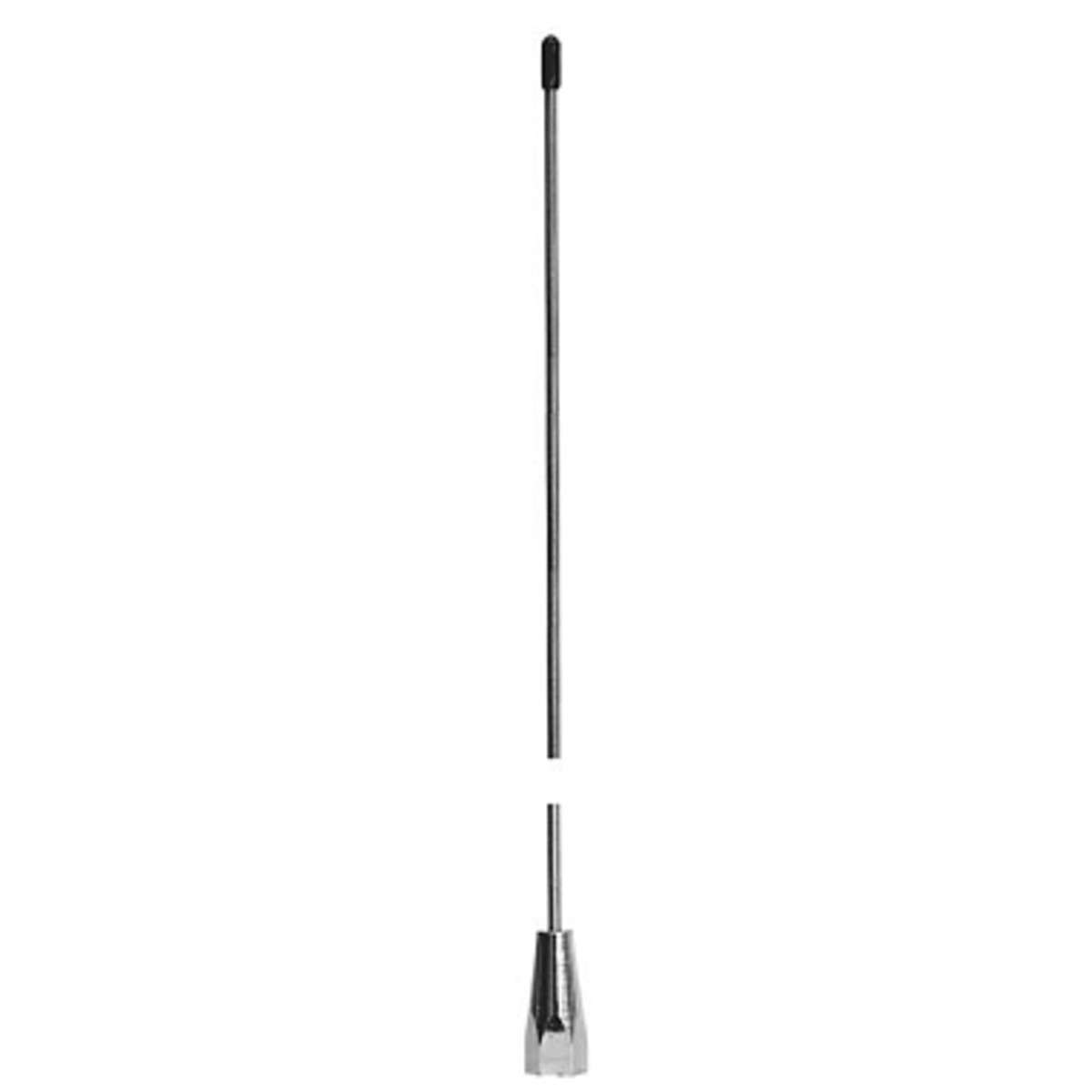

• Parallel stainless steel whip
• Interference thread locking mechanism prevents loosening of whip due to vibration
Specifications:
| Whip Material | Parallel stainless steel with chrome-plated ferrule |
| Whip Length mm | 633 |
| Cable And Connector | Not included, order separately |
| Tuning | Field tune to minimum VSWR |
| Band | 136 – 175MHz |
| Frequency Range | 136 – 175 |
| Power w | 100 |
| Nominal Gain Dbi | Unity |
| VSWR | 6% @ <1.5:1 VSWR (Typically at 150MHz) |
| Tuned bandwidth | 6% @ <1.5:1 VSWR (Typically at 150MHz) |
| Frequency MHz | 136 – 175 |
| Brand | RFI |
