Description

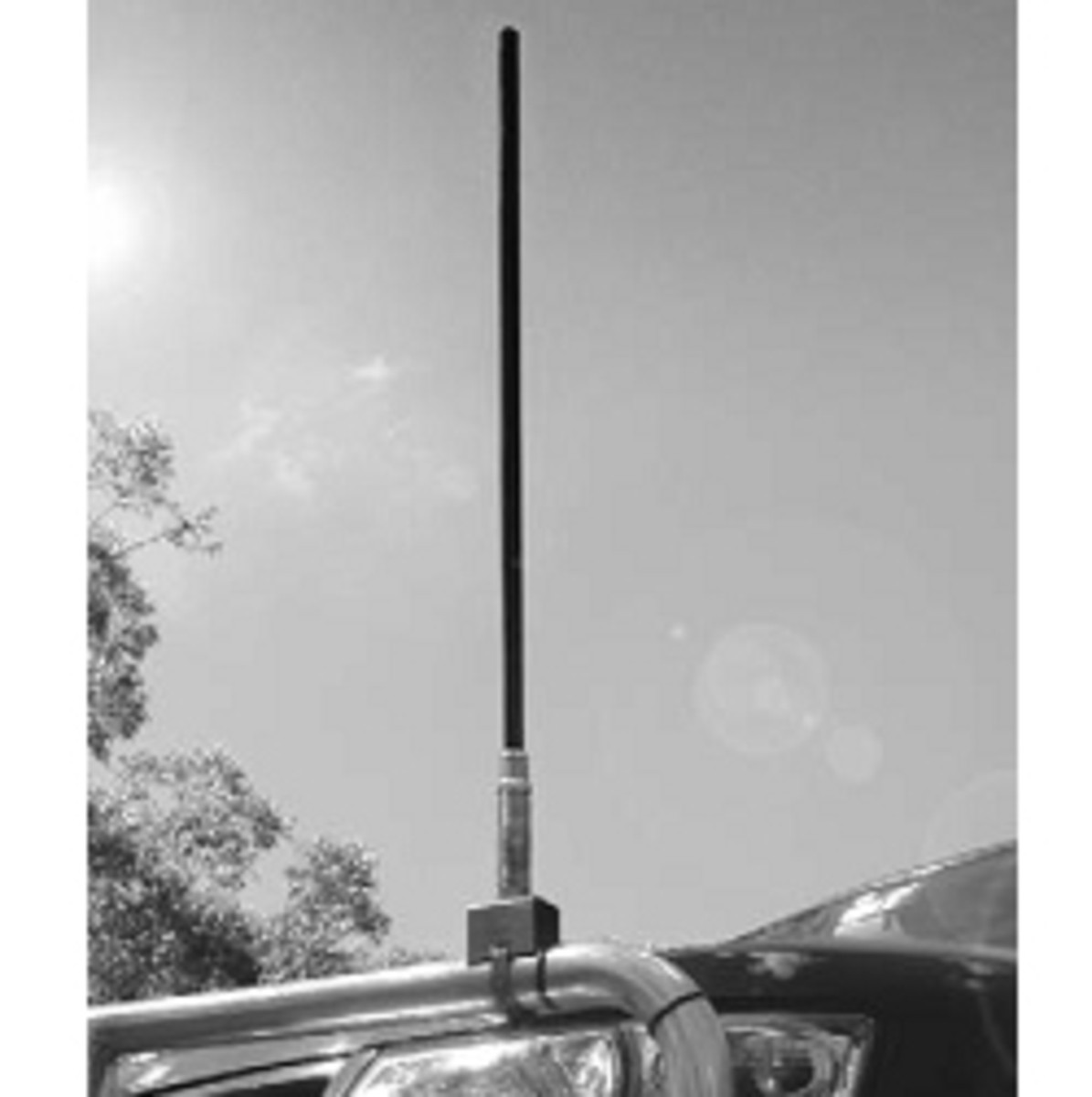

This antenna design is incredibly robust incorporating a patented PCB radiating element housed in fiberglass radome fitted to an integral heavy-duty electro-polished spring. With a 13mm stud mount and ground independent design the antenna is remarkably versatile and performance is assured in a number of mounting positions such mirror, bull bar, gutter or fender mounts. It is ideal for use in commercial vehicles and four wheel drives and the ground plane independent design even allows for it to be used as a base station antenna. • 5dBi gain • Robust design ideal for heavy-duty applications • Patented PCB Collinear design offering the ultimate in pattern and gain stability • Full band coverage 380-400MHz with no need to field tune • Available with GPS sub-assembly.
Specifications:
| Whip Material | PCB radiating element housed in high impact fiberglass |
| Cable And Connector | 5m of 9006 low loss cable with an FME101 connector |
| Tuning | Full. No tuning required |
| Band | 380 – 400MHz |
| Frequency Range | 380 – 400 |
| Power w | 50 |
| Nominal Gain Dbi | 5 |
| VSWR | <1.5:1 |
| Tuned bandwidth | 20MHz |
| Frequency MHz | 380-400 |
| Length [mm] | 1150 |
| Mounting | Threaded Stud |
| Brand | RFI |
