Description

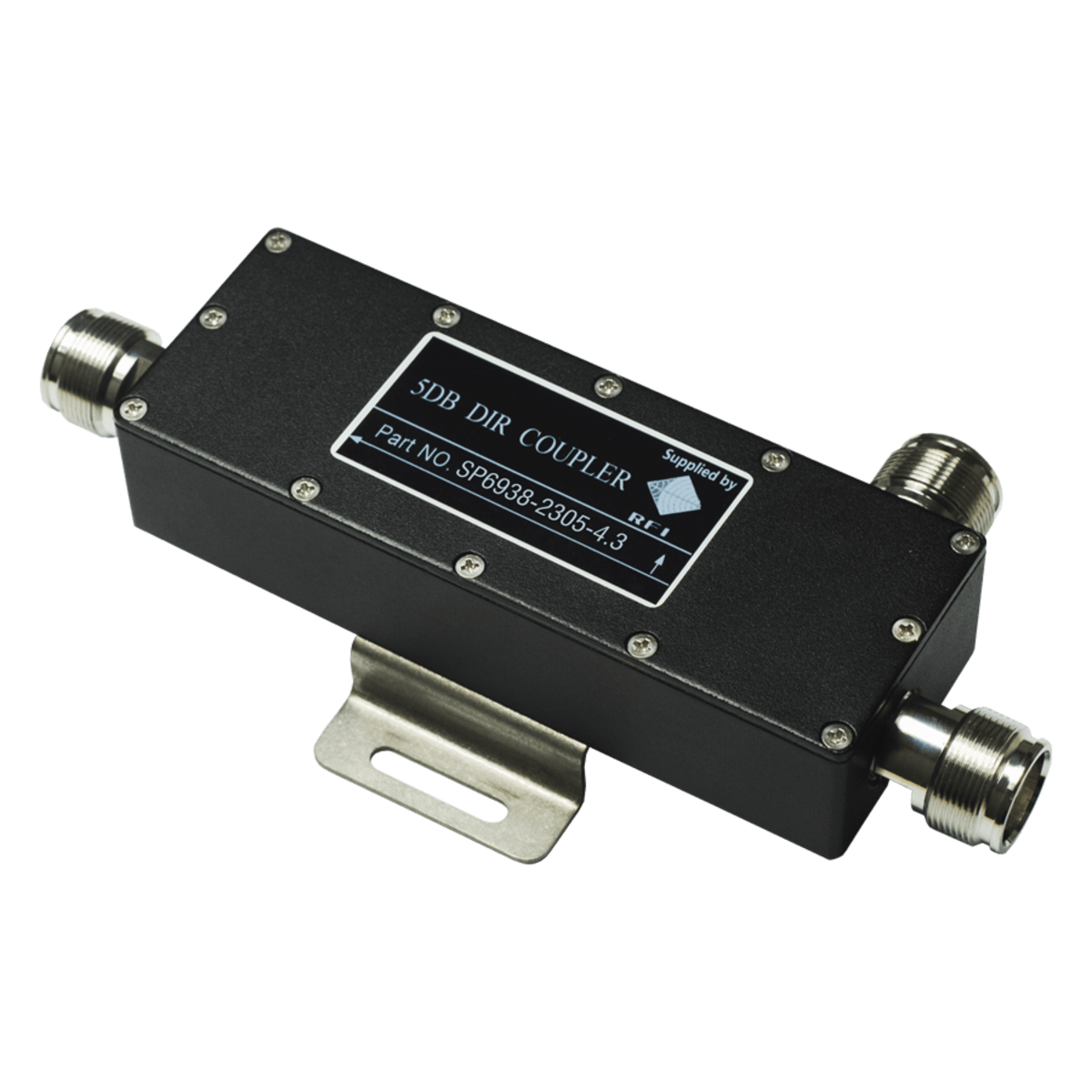

RFI 3-Port Directional Couplers are used in a variety of RF combining, sampling RF for fiber fed systems and or distributing power throughout feeder cable networks. RFI provides a wide product range of coupling values in the most popular frequency bands which enables optimized and balanced system levels.
SP6938-23xx-4.3 Series Features: • Broadband 694-3800MHz covering multi-cellular bands • Manufactured to a low PIM ? -160dBc (3rd Order 2x43dBm carriers) rating • Primarily used for optimizing feeder cable signal distribution.
• Suitable for use with simplex and duplex channels, analog or digital communications.
• Suitable for use in multi-carrier environments • Wide range of coupling values up to 30dB • Environmental IP 65 Rating.
Models available SP6938-23xx-4.3, where xx: | 05 | 06 | 07 | 08 | 10 | 13 | 15 | 20 | 30 |
Specifications:
| PIM 3rd Order 2x43dBm | <160dBc |
| Finish | Black – Painted |
| Connector Types All Termination Ports | 4.3-10 (F) |
| Connector | 4.3-10(F) |
| Frequency Range | 698 – 3800 |
| Brand | RFI |
