Description
General Specifications
Polarization: Vertical

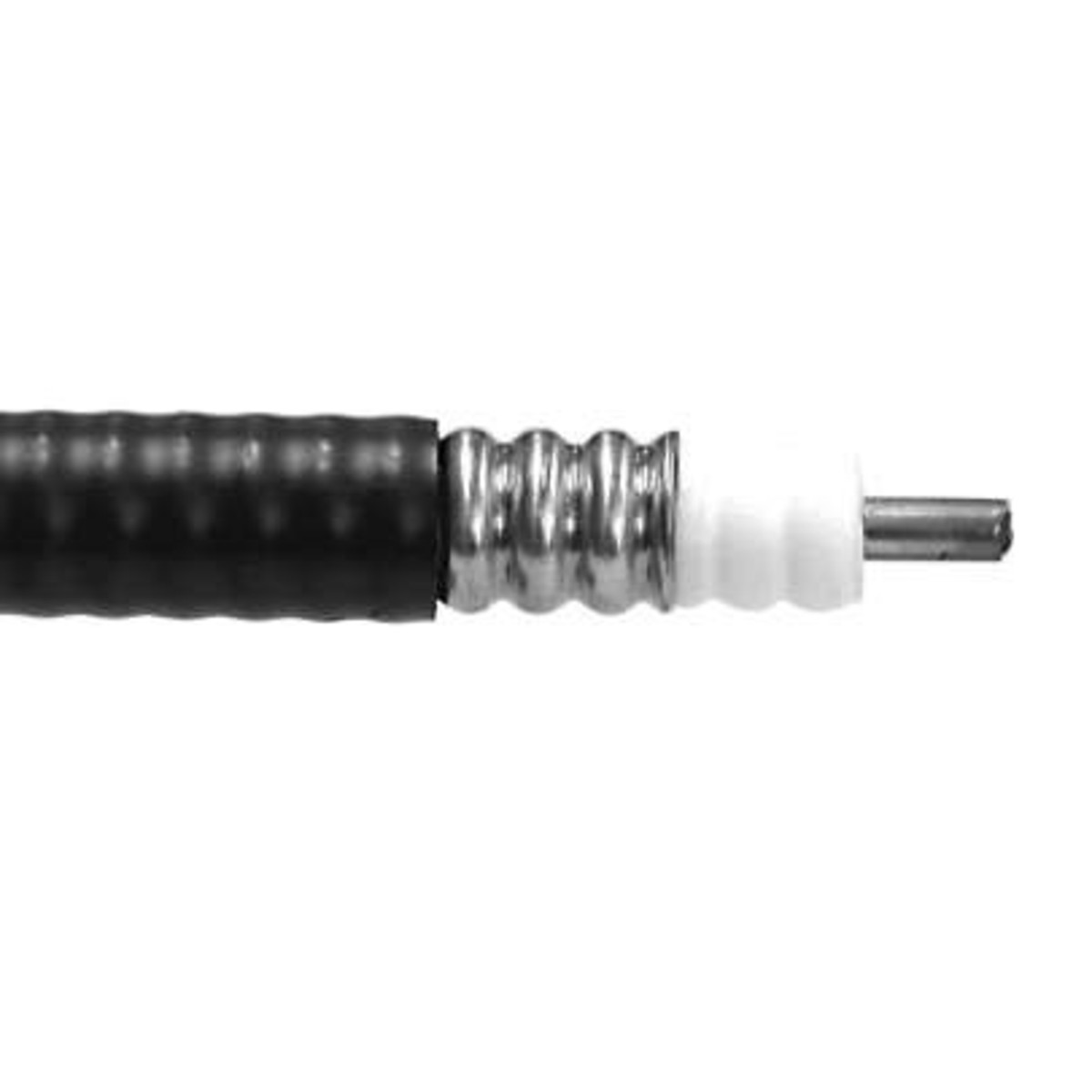

Cable Type: Coupled Mode Series
Jacket Colour: Black
Dimensions
Diameter Over Jacket, maximum: 16.256 mm | 0.64 in
Inner Conductor OD: 4.826 mm | 0.19 in
Outer Conductor OD: 12.954 mm | 0.51 in
Nominal Size: 1/2 in
Recommended Distance from the Wall: 50.8 mm | 2 in
Recommended Hanger Spacing: 1 m | 3.281 ft
Electrical Specifications
Attenuation Test Method: IEC 61196-4
Attenuation Tolerance: ±5%
Cable Impedance: 50 ohm ±3 ohm
dc Resistance, Inner Conductor: 1.48 ohms/km | 0.451 ohms/kft
dc Resistance, Outer Conductor: 5.305 ohms/km | 1.617 ohms/kft
dc Test Voltage: 4000 V
Insulation Resistance: 100000 MOhms-km
Jacket Spark Test Voltage (rms): 8000 V
Operating Frequency Band: 50 – 3800 MHz
Peak Power: 40 kW
Velocity: 88 %
VSWR Installed, typical:
1700–2700 MHz 1.3799999952316284
50–960 MHz 1.2999999523162842
VSWR on Reel, typical: 1.4299999475479126
Specifications:
| Attenuation Per 30m MHz | 3.6 dB |
| Shield | No.: 1 Type: Corrugated Solid BC Coverage: 100% |
| Type of jacket | Black Polyethylene UV stabilized |
| Nominal Velocity | 86.0% |
| Jacket Outer Dimension mm | 8.8 |
| Impedance | 50 |
| Dielectric | Low Density Polyethylene (Foam) |
| Centre Conductor | 1 x CCA 2.6mm |
| Brand | Commscope |
