Name: RFI 2.4 & 5.0 GHz Omnidirectional WiFi MIMO Dome Antenna 2 X 1.5m SMA(M) - Digital Sydney Communications
Price: 74.43 AUD
Availability: InStock
Rating: 5.00 (1 reviews)

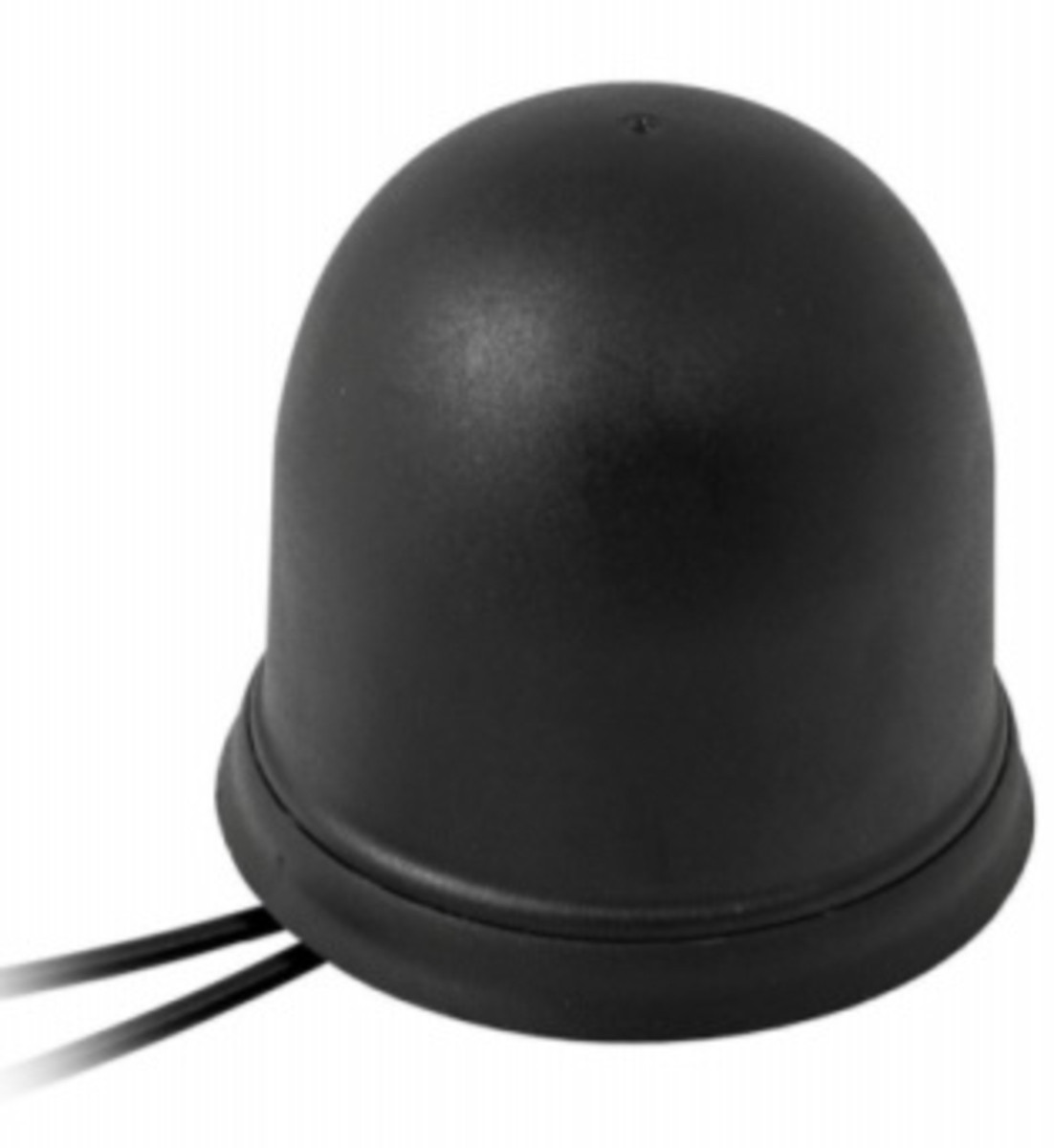

RFI 2.4 & 5.0 GHz Omnidirectional WiFi MIMO Dome Antenna 2 X 1.5m SMA(M)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

This antenna is an omnidirectional heavy-duty, fully IP67 waterproof external antenna for use in an application using WiFi, Bluetooth®, ZigBee or ISM bands. This unique antenna delivers powerful MIMO antenna technology for Wi-Fi either at 2.4GHZ and 5.0GHz.

$74.43

Description

The antenna is ground independent and can radiate on any mounting surface such as metal or plastic without affecting performance. Features
• Threaded Stud Mount
• Ruggedised Compact Design
• Ground Plane Independent
• IP67, IK09, IP69K

Specifications:

Packaging	Plastic Bag
Cable And Connector	2 x 1.5M LM195 terminated with SMA(M) connectors
Base Gain	4 to 7 dBd , 8 to 11 dBd
Nominal impedance	50
Power w	25
Nominal Gain Dbi	2.6 / 4.4
Polarisation	Vertical
VSWR	<2.0:1
Termination	2 x 1.5m LMR195 terminated with SMA male

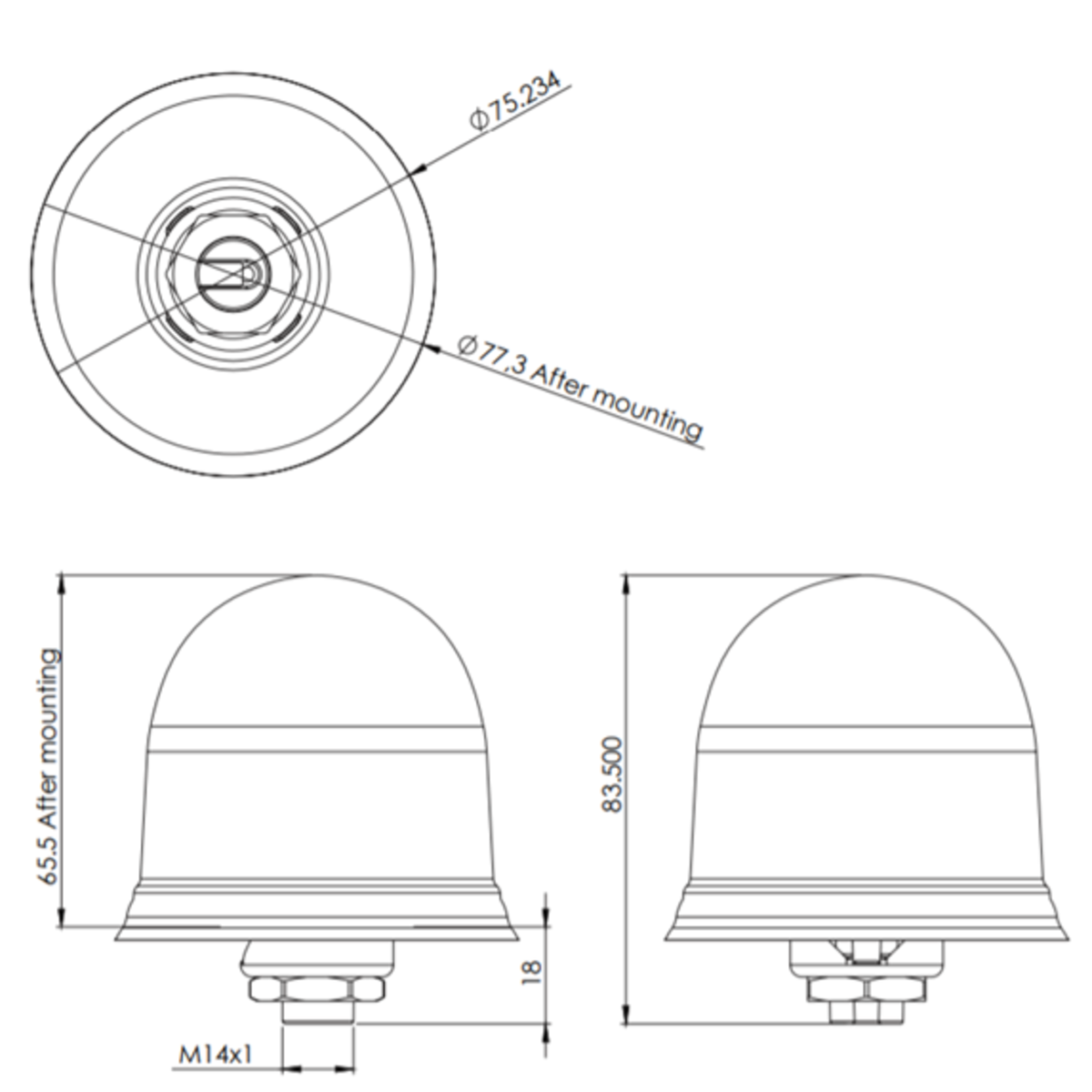

Radome Diameter Mm	77.3
Construction	ASA black radome with Zamak base
Tuned bandwidth	Full. No tuning required
Frequency MHz	824-960/1710-2500
IP Rating	IP67
Brand	RFI
