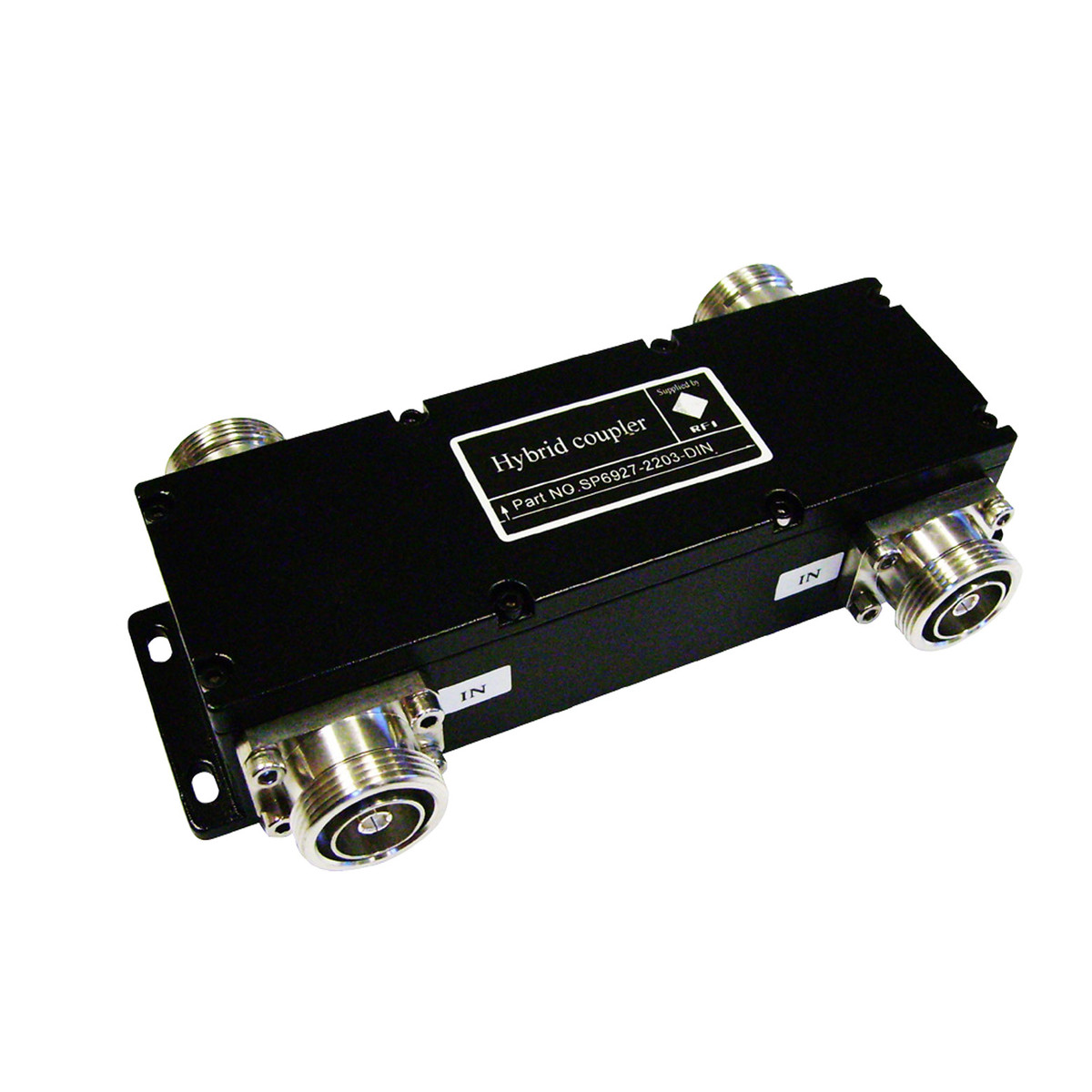

4 Port Hybrid Coupler 698-2700MHz 3 DB DIN Type

4 Port Hybrid Coupler 698-2700MHz 3 DB DIN Type

(1 customer review)

The 4-Port 3dB Hybrid Coupler covers all cellular bands from 698-2700MHz with a low Passive Inter-Modulation, high Peak Instantaneous Power and high environmental IP rating. Typically used to combine either in-band carriers or carriers across multiple bands to be fed into antenna feeders or In-Building leaky feeder or in-building Distributed Antenna Systems. Designed to IP67 the Hybrid Coupler can be used in both indoor and outdoor applications.

$236.70

Category: Tag:

Description

Features: -Broadband 698-2700MHz covering all cellular bands. -Low Insertion Loss -High Isolation (Ports 1 & 2) across full bandwidth >28dB -Suitable for use in high power multi-carrier transmission systems -Manufactured to a low PIM ? -150dBc (3rd Order 2x43dBm carriers) rating -PIP Rating of 1000W -Average Power rating of 500W -Environmental IP 67 rating



Specifications:

Finish Black – Painted
Connector Types All Termination Ports N (F)
Power Rating Watts 500W
Operational Temperature Range -40°C to +60°C / -40°F to 140°F
Connector DIN(F)
Frequency Range 698 – 2700
Brand RFI
Component Type Hybrid Coupler
