Description

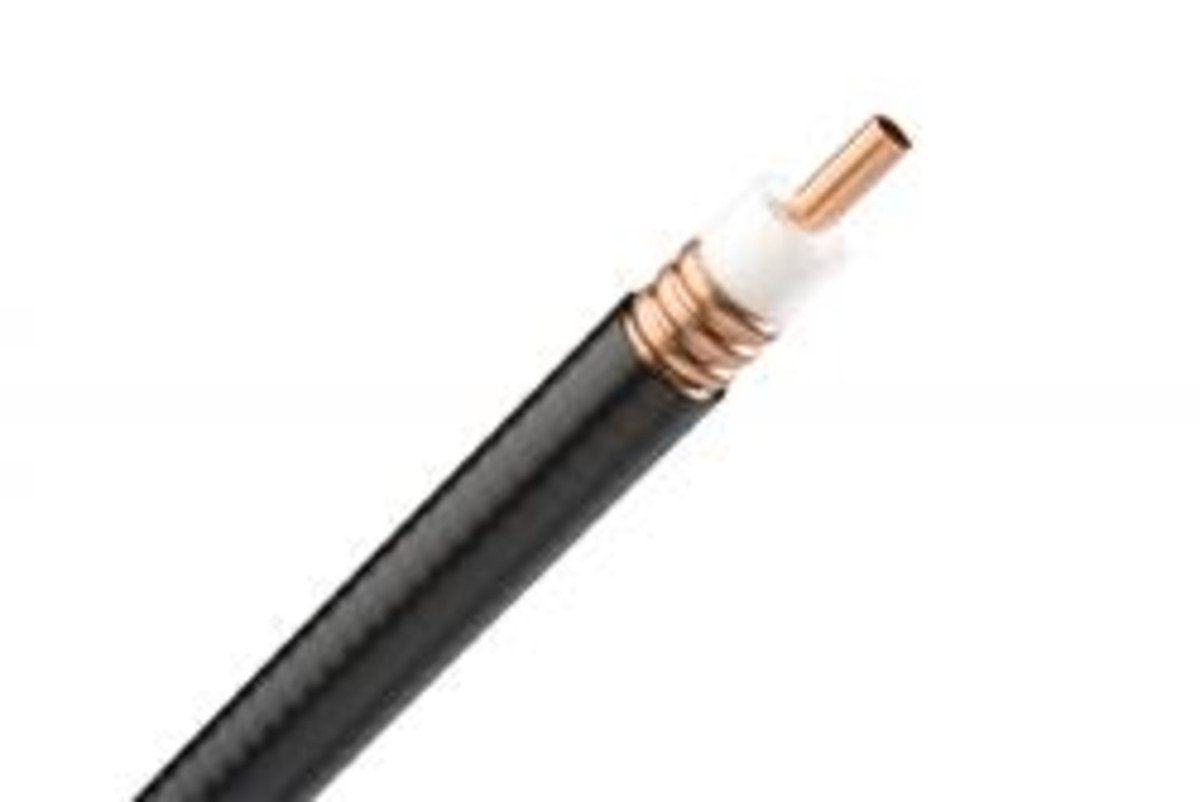

Product Classification Brand HELIAX ® Product Series AVA5-50 Product Type Coaxial wireless cable Standards And Qualifications EN50575 CPR Cable EuroClass B2ca | s1a | d1 | a1 Construction Materials Jacket Material Non-halogenated, fire retardant polyolefin Outer Conductor Material Corrugated copper Dielectric Material Foam PE Flexibility Standard Inner Conductor Material Copper tube Jacket Color Black
Specifications:
| Cable Type Connectors | AVA5-50 |
| Attenuation Per 30m MHz | 1.08 dB |
| Shield | No.: 1 Type: Corrugated Solid BC Coverage: 100% |
| Type of jacket | Non-halogenated – Fire Retardant Polyolefin |
| Nominal Velocity | 91.0% |
| Jacket Outer Dimension mm | 27.94 |
| Impedance | 50 |
| Dielectric | Low-Density Polyethylene (Foam) |
| Centre Conductor | 1 x BC (Hollow) 9.4mm |
| Cable Type | 7/8″ |
| Brand | Commscope |
| Component Type | Cable |
