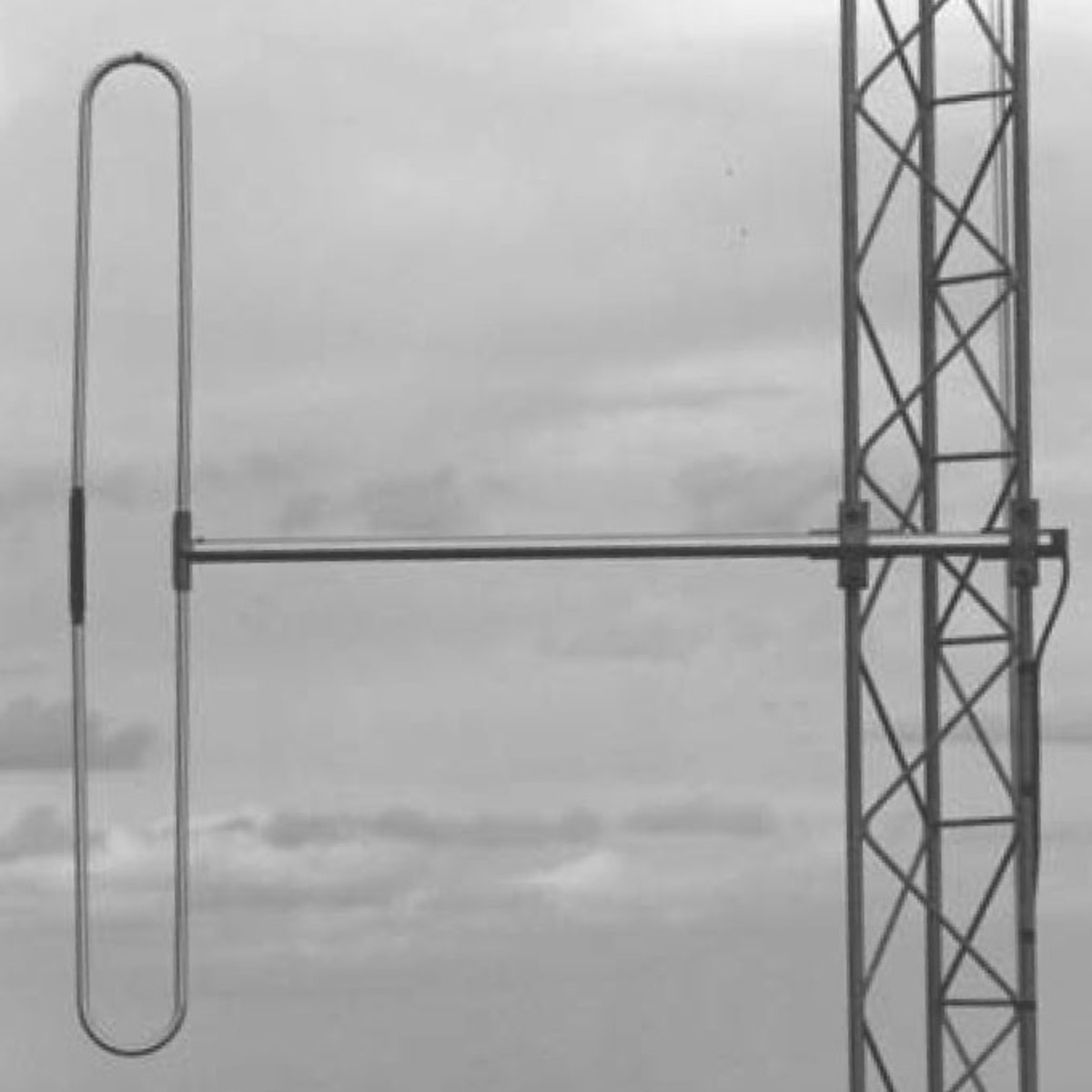

Description
Features: -Can be phased to provide 3dBd or 6dBd gain in a variety of patterns to suit specific requirements. An extensive range of phasing harnesses is available. -Full bandwidth coverage for both single antennas and phased arrays – ideal in community sites -Ruggedised and stainless steel versions available -Low PIM models available -DC grounded for lightning protection and dissipation of static noise
Specifications:
| Frequency Range | 70 – 85 |
| Power w | 300 |
| Polarisation | Vertical |
| VSWR | <1.5:1 |
| Termination | N female with RG213 cable tail |
| Mounting area | 300mm x 40mm diam. aluminum |
| Construction | Thick-walled aluminum with cast aluminum hub |
| Tuned bandwidth | Full. No tuning required |
| Horizontal Beamwidth | Typically 260° at ¼ l antenna – mast spacing |
| Frequency MHz | 70 – 85 |
| Length [mm] | 1800 |
| Brand | RFI |
| Weight [kg] | 2.5 |
