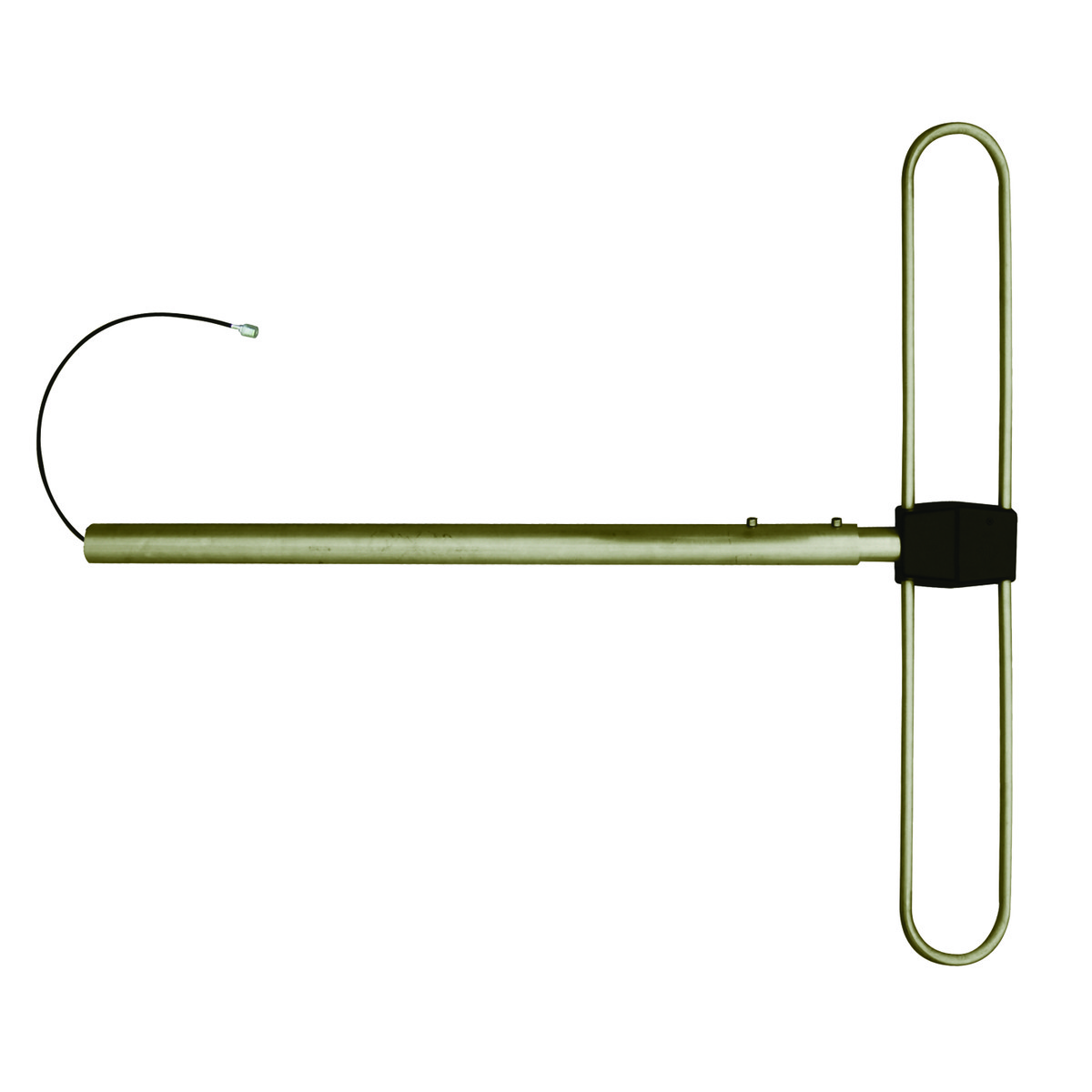

VHF Low PIM Side Mounted Broadband Dipole Antenna 130-150MHz

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

These side-mounted dipoles are Low PIM broad band antennas which, through different phasing and mounting arrangements can offer a variety of patterns (generally cardioid) tailored to specific coverage requirements. These antennas can be mounted in dual arrays for 3dB gain, or four-stack arrays for 6dB gain over a single dipole.

$269.91

Out of stock

Description

Features: -Can be phased to provide 3 dBd or 6 dBd gain, in a variety of patterns tailored to suit specific requirements. An extensive range of phasing harnesses is available. -Full bandwidth coverage for both single antennas and phased arrays – ideal in community sites -DC grounded for lightning protection and dissipation of static noise – -150dBc Passive Intermodulation (PIM) rating

Specifications:

Frequency Range	130 – 150
Power w	750
Polarisation	Vertical
VSWR	<1.5:1
Termination	N female with 9142 cable tail
Mounting area	500mm x 48mm diam.
Construction	Welded aluminum with alodined finish
Tuned bandwidth	Full. No tuning required
Passive IM 3rd Order (2x20W) dBc	<-150
Horizontal Beamwidth	Typically 228° at ¼ l antenna – mast spacing
Frequency MHz	130-150
Length [mm]	1240
Brand	RFI
Weight [kg]	3
