Description

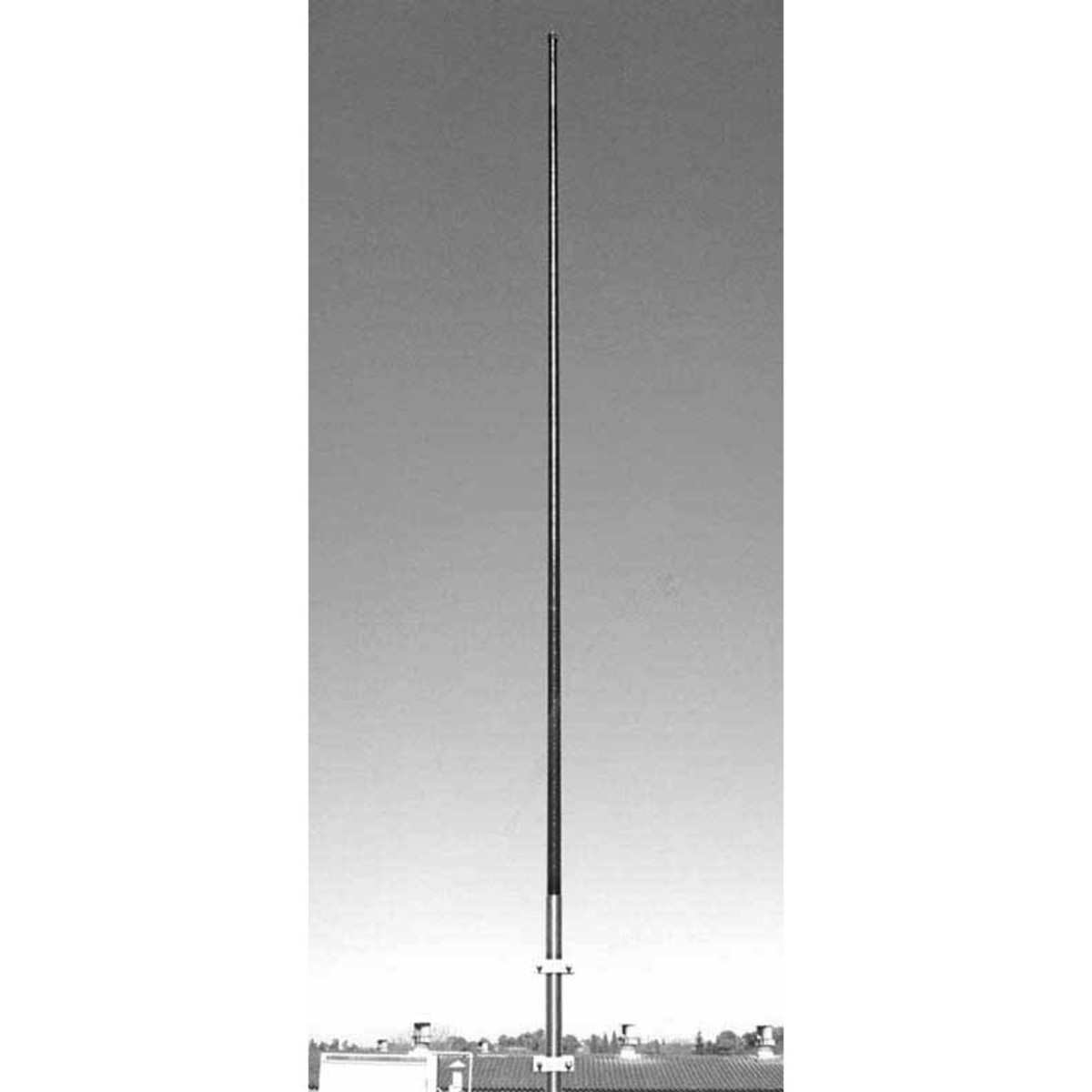

This is designed to suit the FM low band and suitable for use in the most extreme climatic conditions. The radome which houses the active elements of the COL1 was originally designed to serve as the mast of recreational sailboards and is immensely strong. The radome is colored black to maximize solar heat retention and this has been shown to aid significantly in ice shedding. The antenna is fitted with a large, 60mm diameter alodined aluminum mounting tube.
Specifications:
| Frequency Range | 70 – 88 |
| Base Gain | 0 to 3 dBd |
| Power w | 200 |
| Polarisation | Vertical |
| VSWR | <1.5:1 |
| Termination | N female bulkhead |
| Mounting area | 750mm x 60mm diam. alodined aluminum |
| Construction | Alodined aluminum elements with ruggedized black fiberglass radome |
| Tuned bandwidth | 3.00% |
| Horizontal Beamwidth | Omni +/- 0.5dB |
| Frequency MHz | 70 – 88 |
| Length [mm] | 5800 |
| Brand | RFI |
| Weight [kg] | 8 |
