Description

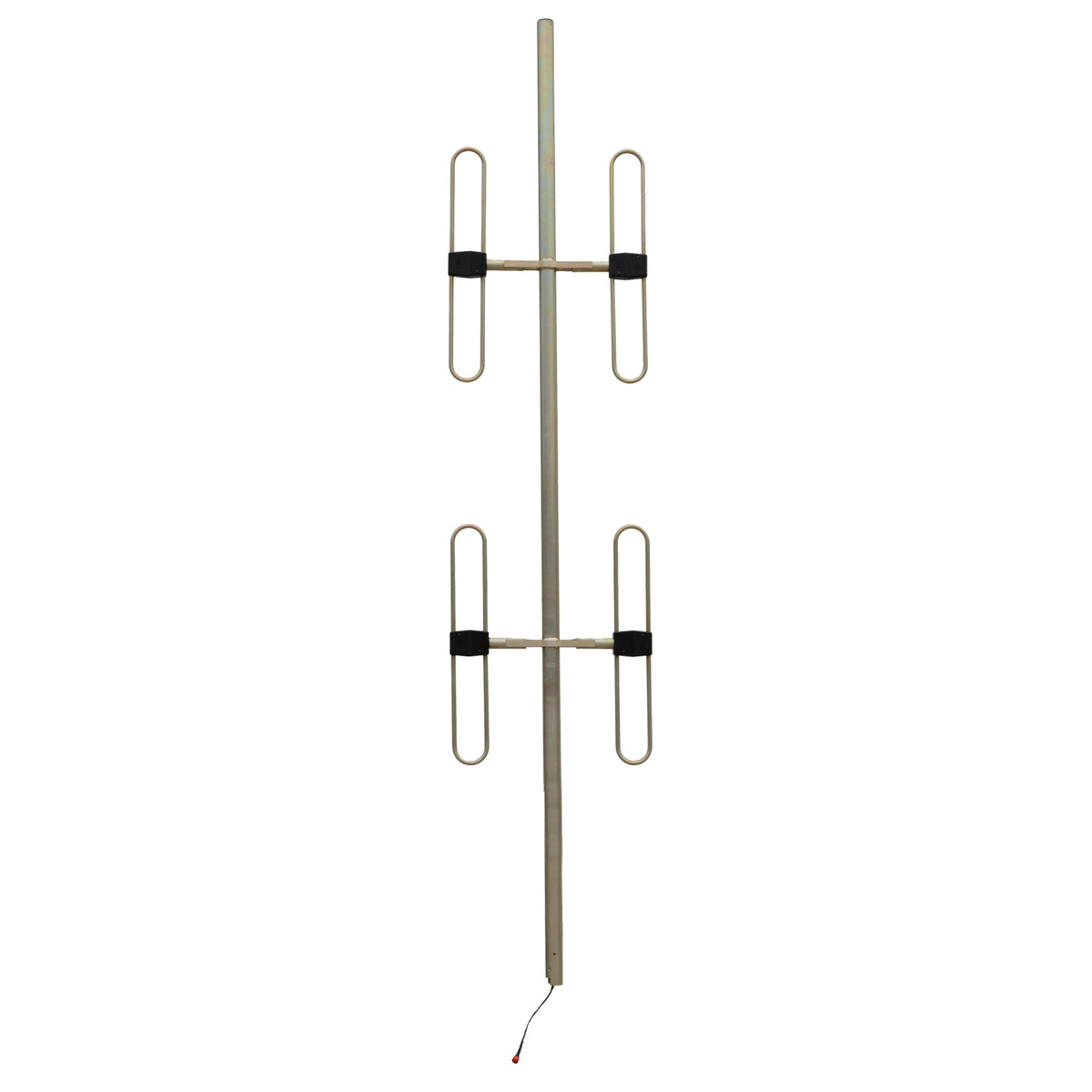

Features: The folded dipoles utilize an internal phasing harness in stable, PTFE-based double-screened coaxial cable with PE Jacket for optimal weatherproofing. These elliptical arrays incorporate extensive sidelobe suppression, null fill, and accommodate power input levels of 750 watts continuous. With all welded construction and superior internal harness construction, these antennas provide not only excellent radiation characteristics but also high levels of intermodulation and noise suppression. The entire array rests at ground potential and offers the ultimate in lightning-resistant antennas. • New 4.3-10 high-performance connector • High gain elliptical pattern with 5dBd or 8dBd versions available • Operate over entire 136-174 MHz band without tuning or adjustment • Inverted mounting version available • Industry-leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum performance Options available include: •All stainless steel 316 grade construction (5dBd array only) •EA40 series can be optionally supplied in all-welded 316 grade stainless steel. Dimensions vary slightly
Specifications:
| Frequency Range | 136 – 174 |
| Base Gain | 4 to 7 dBd |
| Power w | 750 |
| Polarisation | Vertical |
| VSWR | <1.5:1 |
| Termination | 4.3-10 female with 0.5m RG142 cable tail. |
| Mounting area | 750mm x 63mm diam. aluminum |
| Construction | All welded aluminum with alodined finish. |
| Tuned bandwidth | Full. No tuning required |
| Passive IM 3rd Order (2x20W) dBc | <-150 |
| Horizontal Beamwidth | 104° |
| Frequency MHz | 136 – 174 |
| Downtilt | 0° Std |
| Length [mm] | 3500 |
| Brand | RFI |
| Weight [kg] | 14.5 |
