Description

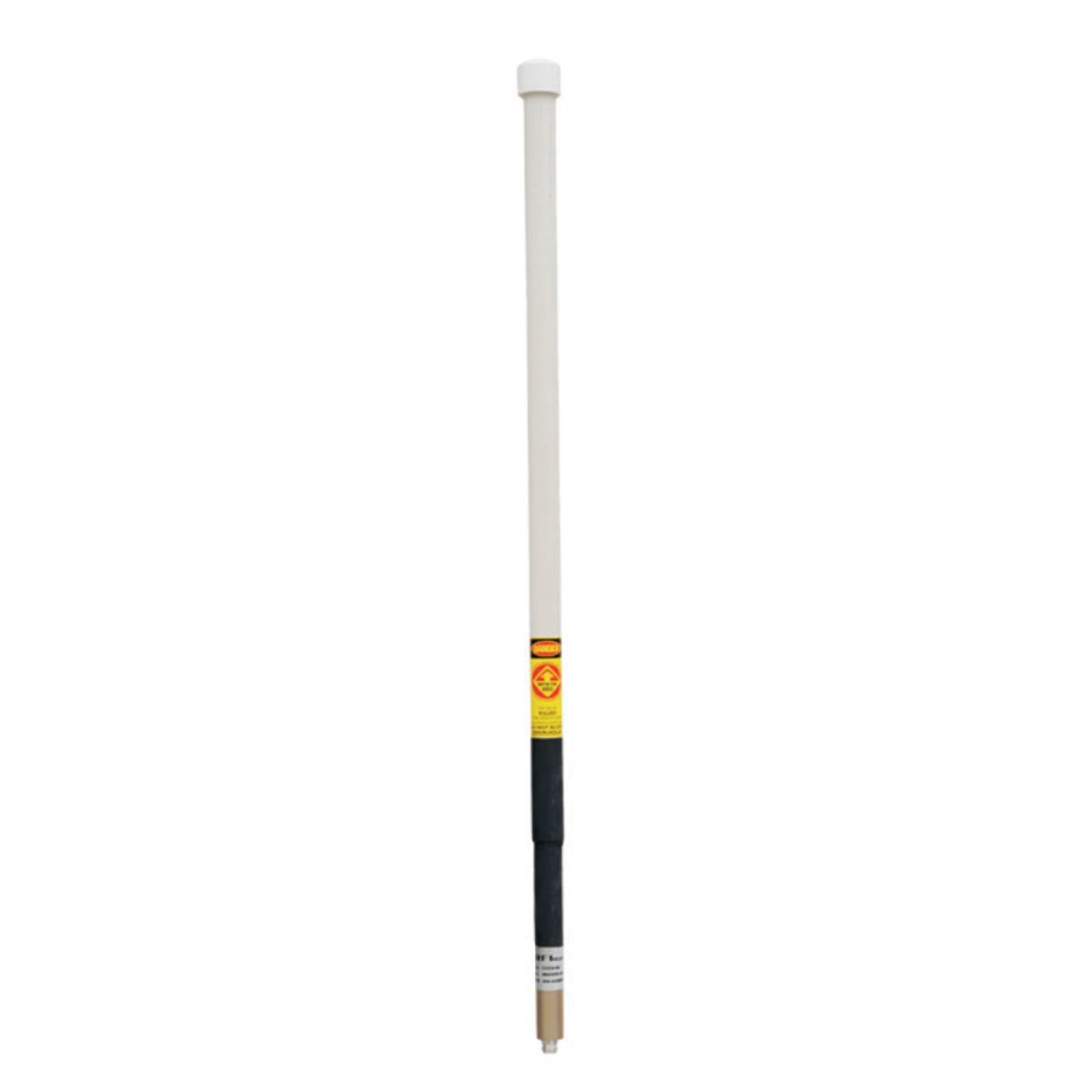

This unity gain broadband dipole antenna is designed to cover the entire 380-470MHz frequency band. Suitable applications include low power base stations and RF Control Stations in the emerging whole-of-government UHF frequency allocations, and other applications requiring a wide operating frequency bandwidth. A unique circuit board radiator design provides a balanced and effective center-fed dipole radiator. As a center-fed antenna, not only is gain consistent across its entire frequency band but the vertical radiation pattern is stable in beam width, resulting in consistent performance across the entire frequency band. This antenna is internally DC grounded for optimum lightning protection and for the reduction of static noise and is lightweight for easy installation on support structures.
Specifications:
| Frequency Range | 470 – 490 |
| Base Gain | 0 to 3 dBd |
| Power w | 100 |
| Nominal Gain Dbi | 2 |
| VSWR | <1.5:1 |
| Termination | N series jack |
| Mounting area | 100mm x 25mm diam. alodined aluminium |
| Construction | White fibreglass composite PCB and Aluminium tube |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | Omni +/- 0.5dB |
| Frequency MHz | 470 – 490 |
| Brand | RFI |
| Weight [kg] | 0.56 |
