Description

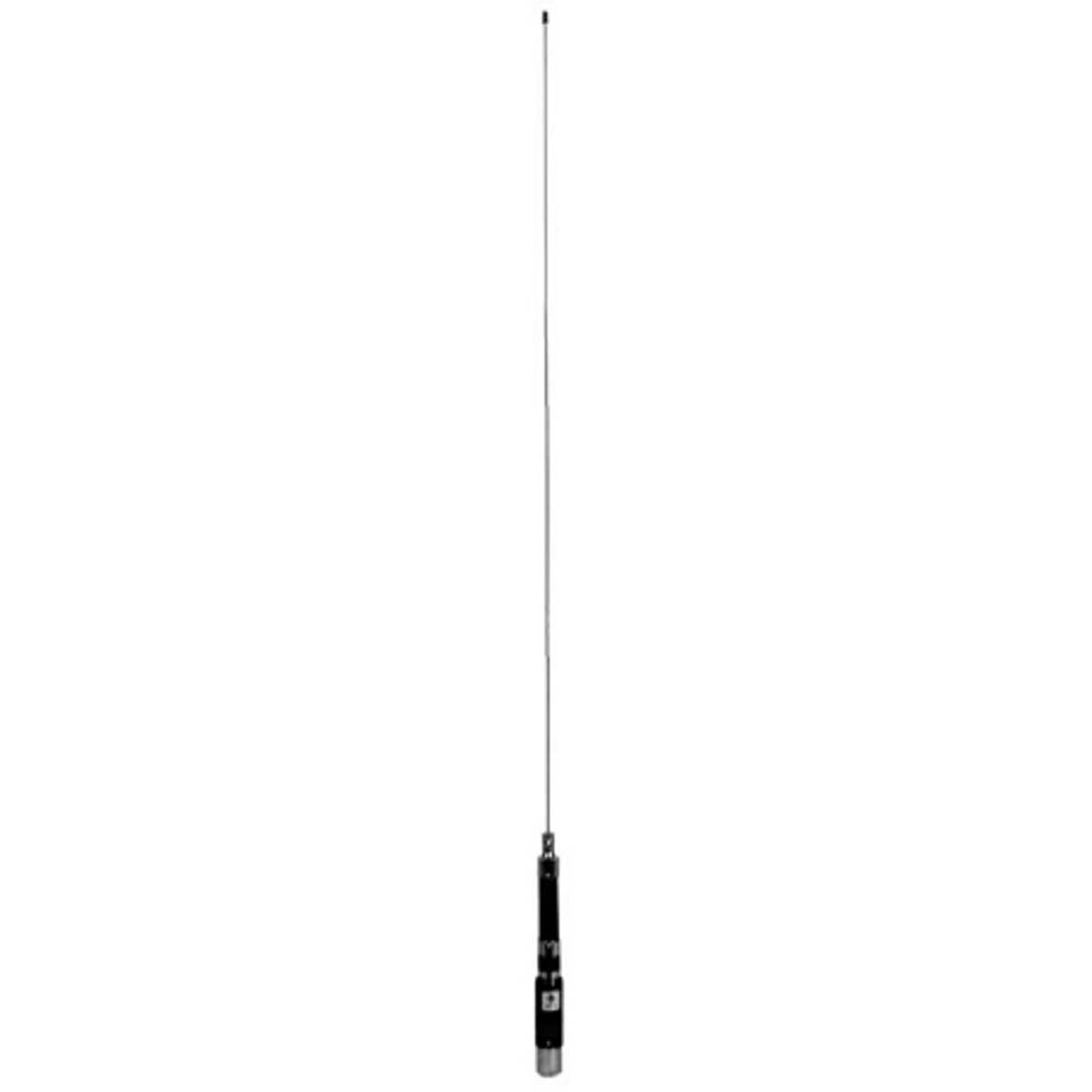

Features: • Ground independent Mopole™ design allows installation in a variety of mounting locations • Bandwidth of over 3 MHz for VSWR <1.5:1 accommodates most duplex requirements • High impedance matching transformer allows end feeding of electrical half-wave element • Shortened half-wave radiators suit restricted height applications NOTE: This is a highly compressed 1/2 wave antenna and although they function independently of a ground plane, perform markedly better if earthed. Earthing via a gutter or mirror style bracket will ensure the best possible field performance.
Specifications:
| Whip Material | 17-7PH stainless steel whip with fiberglass base coil assembly |
| Whip Length mm | 1500 |
| Cable And Connector | 5.0m RG58 C/U |
| Tuning | Field tune to minimum VSWR with supplied chart |
| Band | 70 – 77MHz |
| Frequency Range | 70 – 77 |
| Power w | 50 |
| Nominal Gain Dbi | 1.5 |
| VSWR | 3.0 MHz @ <1.5:1 VSWR |
| Tuned bandwidth | 3.0 MHz @ <1.5:1 VSWR |
| Frequency MHz | xx denotes Freq band: 26 = 70 – 77MHz 27 = 77 – 85MHz |
| Mounting | Threaded Stud |
| Brand | RFI |
