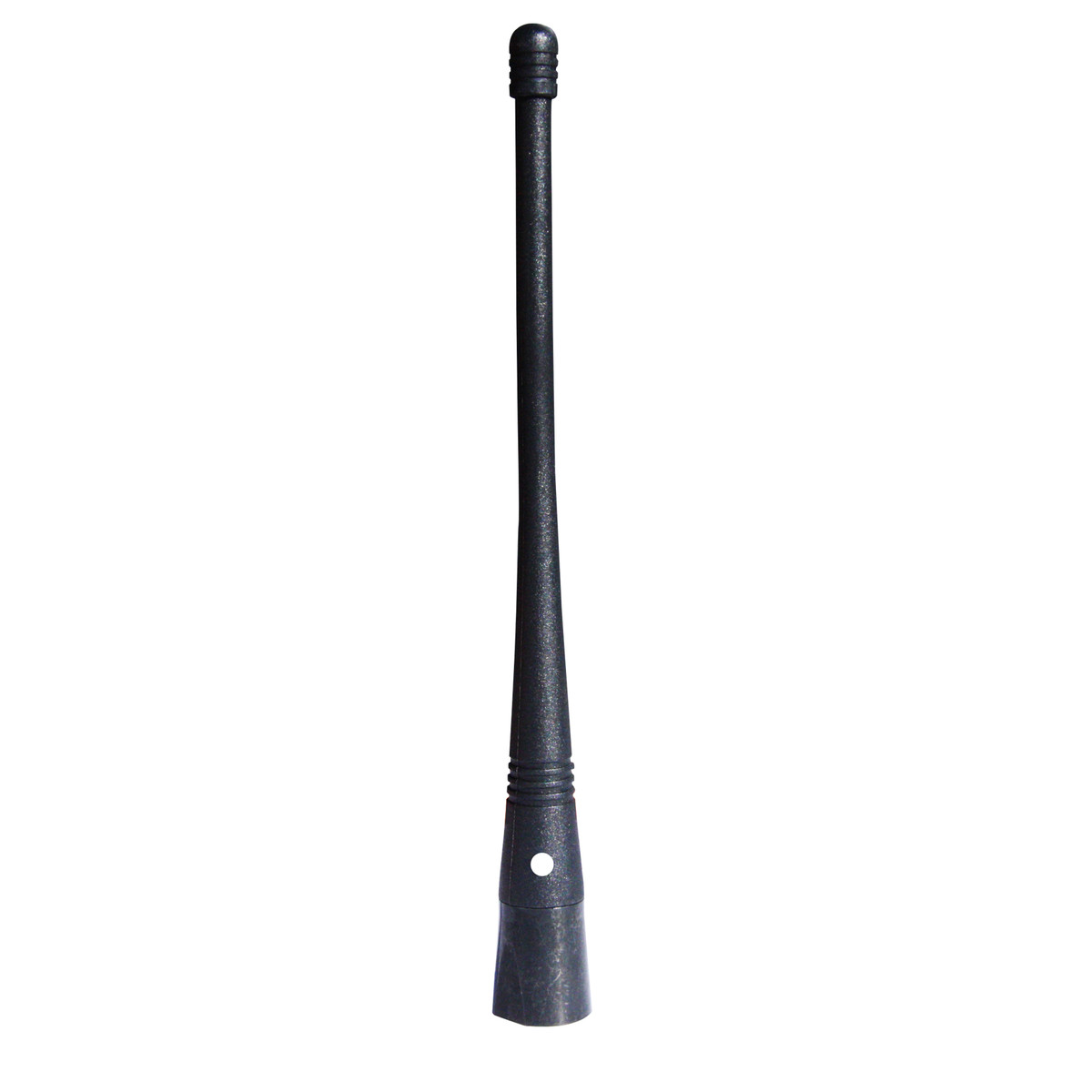

RFI UHF Black – White Dot 1/4 Wave Antenna 380-400MHz

RFI UHF Black – White Dot 1/4 Wave Antenna 380-400MHz

This series is a range of low-profile, flexible ¼ wave whips which provide excellent omnidirectional performance when mounted high on a vehicle. They make an ideal roof mount antenna when coupled with either an MB10/MB12 or on to a CD90/900 Series elevated feed choke for other mounting locations. They are available either pre-tuned to specific bands (380MHz to 520MHz) or in the case of the SW120, field tunable from 400-520MHz. By the nature of their location, these types of antennas are generally exposed to extreme conditions. These are constructed from twisted stainless steel wire, surrounded by an injected UV stabilized TPU radome which results in a flexible yet robust antenna.

$11.91

Category: Tag:

Description

Features:
• Omnidirectional unity gain performance
• Robust UV stable construction
• Supplied pre-tuned to specific bands and color-coded for easy identification
• SW120 is field tuneable from 400-520MHz
• Mounts to a standard 5/16” – 26 TPI base (MB10 or MB12)



Specifications:

Nominal Gain dBq Unity
Packaging Clear Bag
Whip Material Flexible stranded stainless steel whip covered by black TPU radome
Whip Length mm 167
Cable And Connector Not included, order separately
Tuning Supplied tuned at 380 – 400MHz.. Can be field tuned to 400 – 520MHz using supplied cutting chart
Frequency Range 380 – 400
Power w 100
VSWR <2.0:1
Tuned bandwidth Supplied tuned at 380 – 400MHz. Can be field tuned to 400 – 520MHz using supplied cutting chart
Frequency MHz 806 – 870
Brand RFI
