Description

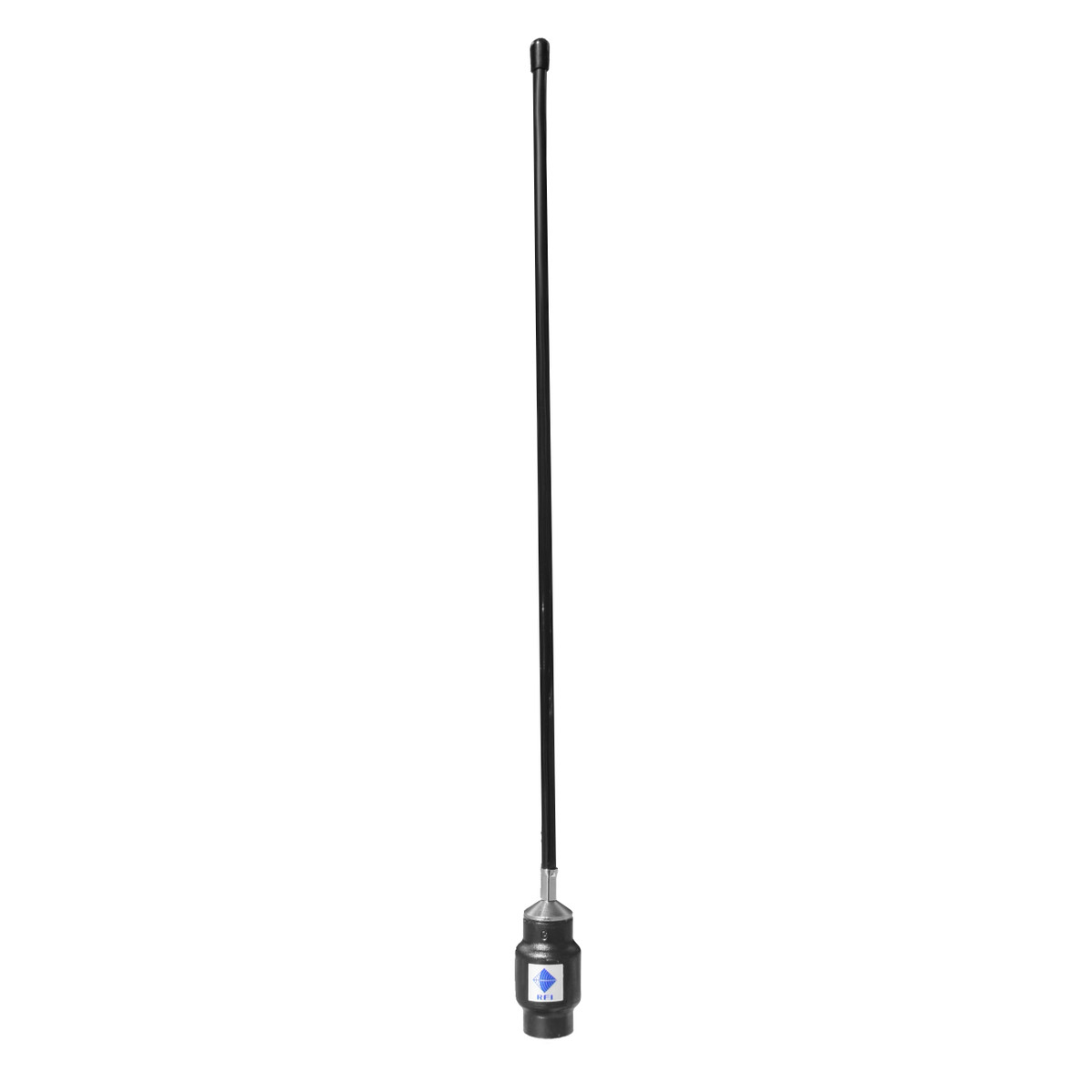

When the CD51 gets mounted on a vehicle gutter or similar position, these UHF Mopoles provide optimum performance with a largely omnidirectional pattern. Due to the low angle of radiation inherent in the dipole antenna pattern, a 4.0 dB improvement in performance is typical when compared to a 3 wave whip in the center of a metal roof. The end fed design of the UHF Mopoles incorporates a truly unique transformer in the base section. In this patented feed assembly, the dielectric of the coaxial feeder cable is trimmed to a set length and then introduced into the coil in termination. The result is a precisely matched feed that is so consistent that tuning to frequency from a chart becomes a matter of course. CD51 antennas are fitted with a flexible nylon radome over a copper element – ideal in industrial applications. CD50 antennas have an elegant and durable tapered stainless steel whip section. There are two styles of mounting arrangements offered. The CD50-xx-70 and CD51-xx-70 versions mount via a threaded stud and nut assembly. The antenna can be easily terminated, tuned and re-terminated in the field using the instructions supplied. Its patented design allows the coaxial cable to be replaced in the field without specialized tools or soldering. The CD50-xx-50 and CD51-xx-50 versions mate with the MBC coaxial base providing an internal, permanent connection in a completely sealed unit. The MBC base is easy to install and allows the entire antenna to be removed and replaced at will.


Features
– Ground plane independence allows alternative mounting locations
– High performance and largely omnidirectional pattern when not center roof-mounted
– Patented design allows termination or pre-termination in seconds
– Stainless steel whip or flexible nylon whips cater to individual needs
– Base coil is virtually indestructible
– Unique transformer design
– Australian Patents #596830 and #656793


(1) Mopole™ antennas such as the CD50 and CD51 exhibit a 4dB improvement in performance over a ¼ wave whip but in pattern tests deliver only 2.0 to 2.5dB of actual gain. This improvement in performance can be attributed to a lower angle of radiation and is of particular benefit to users in rugged terrain conditions and in heavily built-up city areas. (2) Available pre-terminated with 5m 8058 RG58C/U. Use -73 or -53 suffix to replace -70 or -50 suffix.
