Description
The integrated matching circuit is housed in a rugged, impact-resistant base for maximum durability with a fully molded highly flexible whip. The CD61 is designed to interface with standard PL259 (MBC) mobile mounts, facilitates existing installation upgrades on public safety vehicles.
Features:
– Ground plane independent design allows alternative mounting locations
– Ultra-broadband coverage means no tuning in the field
– Highly flexible over-molded whip
– Base is virtually indestructible
Specifications:
| Nominal Gain dBq | 4 |
| Whip Material | Highly flexible over-molded whip |
| Whip Length mm | 370 |
| Cable And Connector | No included |
| Band | 380-470 MHz |
| Nominal impedance | 50 |
| Power w | 25 |
| Polarisation | Vertical |

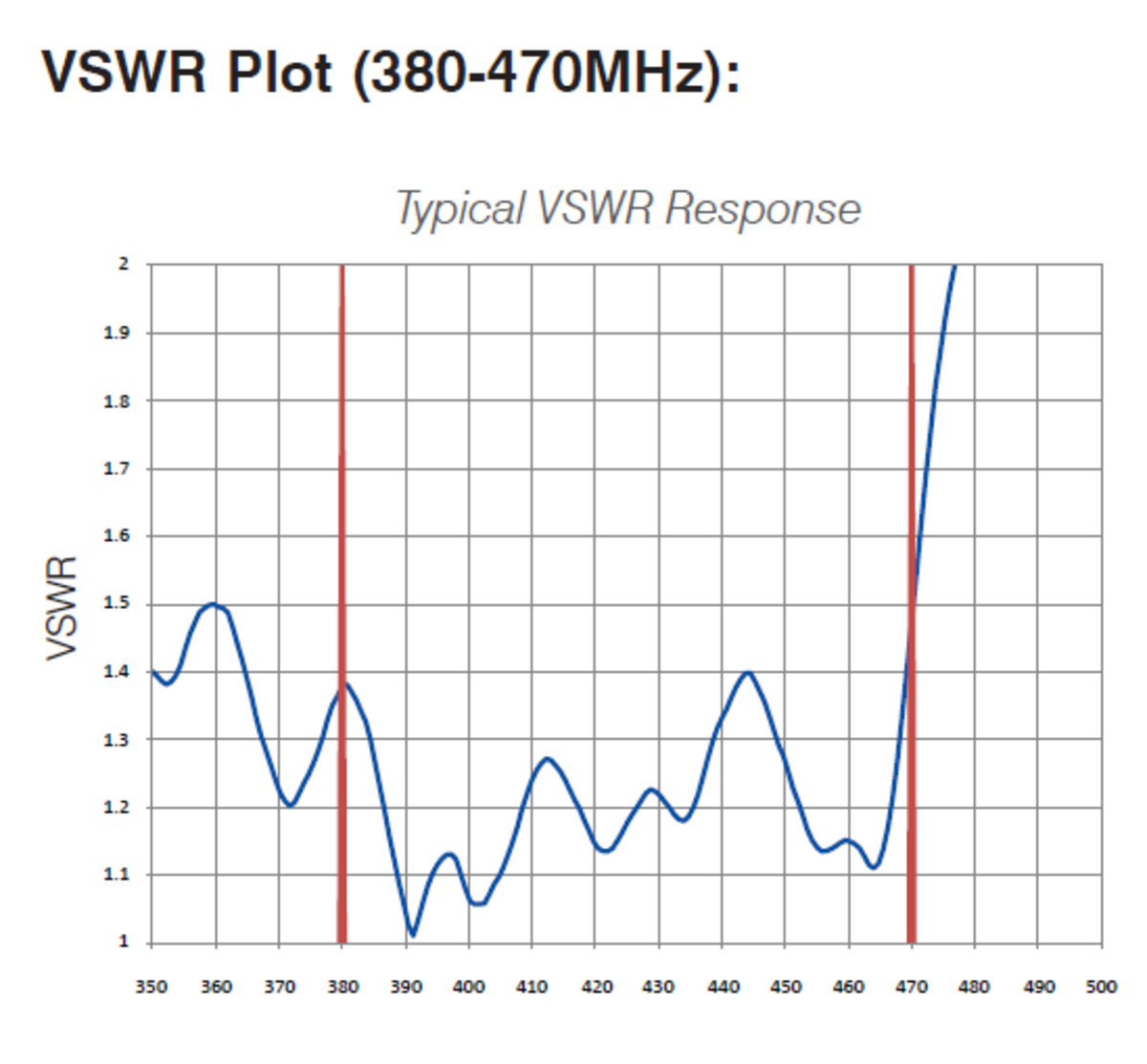

| VSWR | <1.7:1 |
| Tuned bandwidth | Full |
| Brand | RFI |
