The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm and includes 10 meters of low loss RG58 cable terminated with an SMA male connector.
Features:
– Wideband frequency range
– Excellent front-to-back ratio
– Easy installation using supplied hardware
SPECIFICATIONS:
| Cable And Connector | 10 meters cable terminated with male SMA connector |
| Frequency Range | 1710 – 2170, 2300 – 2700, 698 – 960 |
| Base Gain | 8 to 11 dBd |
| Power w | 10 |
| Dimensions | 1100 x 180 x 60 |
| Polarisation | Linear |
| VSWR | <2.0:1 |
| Tuned bandwidth | Full |
| Horizontal Beamwidth | 55 |
| Front Back ratio dB | 20 dB |
| Frequency MHz | 698-1000 / 1500-3000 |
| Length [mm] | 1100 |
| Brand | RFI |
| Weight [kg] | 1.85 |
$167.10
Out of stock

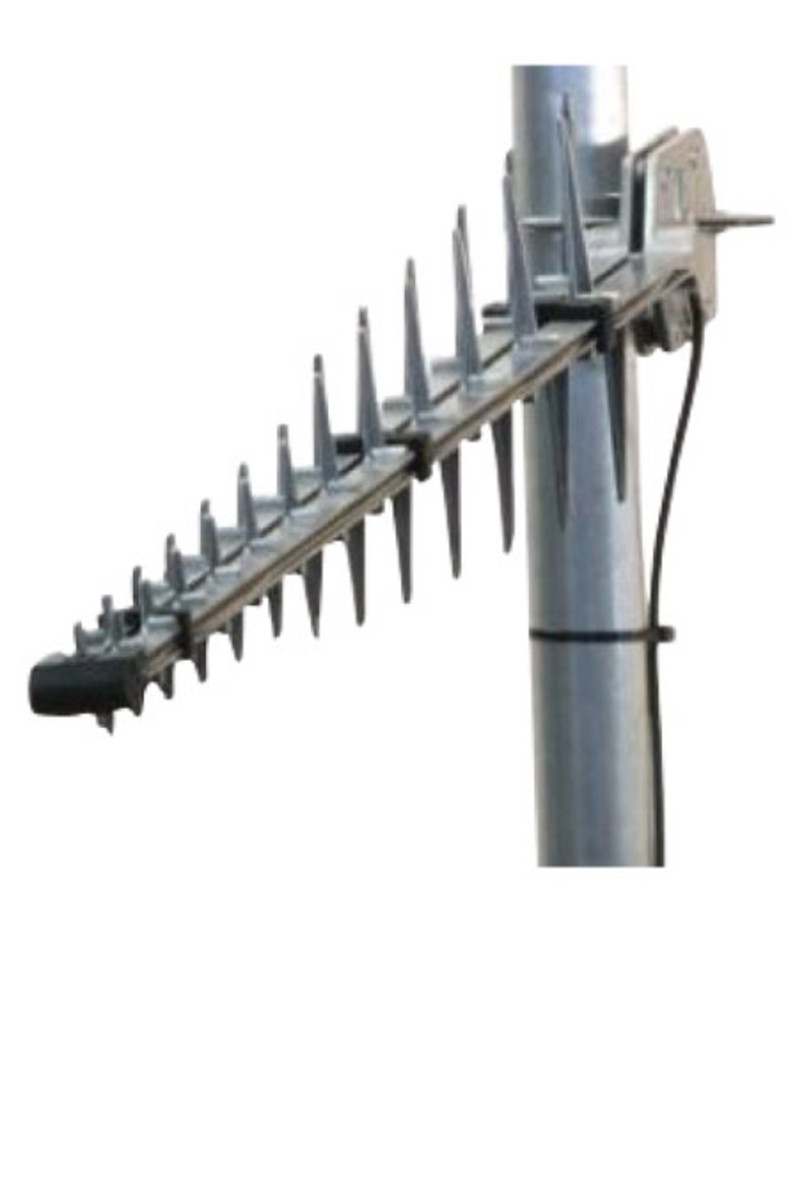

This wide-band log periodic antenna offers high gain directional coverage and is suited to all global cellular and various other wireless network applications. The unique ruggedized diecast aluminum construction ensures optimum performance and reliability in all weather and operating environments. The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suit pole diameters of up to 60mm.
