This Low PIM DAS range is a high-performance, PIM-rated DAS antenna range, offering indoor or outdoor panel antennas with great directional beam control, and a range of indoor and outdoor Omnidirectional solutions to suit indoor, outdoor requirements, with the optional low profile aesthetic. The multi-band capability of each offering covers at least 690-960MHz & 1710-2700MHz and eliminates the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications Features Include: Low Profile compact form factor Coverage across multiple cellular and WLAN bands Ideal for DAS deployment for in-building coverage solutions Excellent -153dBc PIM performance Single stud mount with 2 x 300mm tails terminated with 4.3-10 female connectors IP rated outdoor solutions.
SPECIFICATIONS:
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 4.0 / 4.3 / 5.9 / 5.9 |
| VSWR | <1.8:1 / <1.6:1 / <1.5:1 / <1.6:1 |
| Termination | 2 x 300mm tail with 4.3-10 (F) connectors |
| Radome Diameter Mm | 218 |
| Construction | UV resistant White ABS, IP67 rated* |
| Passive IM 3rd Order (2x20W) dBc | -153 |
| Horizontal Beamwidth | 360 |
| Weight [kg] | 0.7 |
$111.85

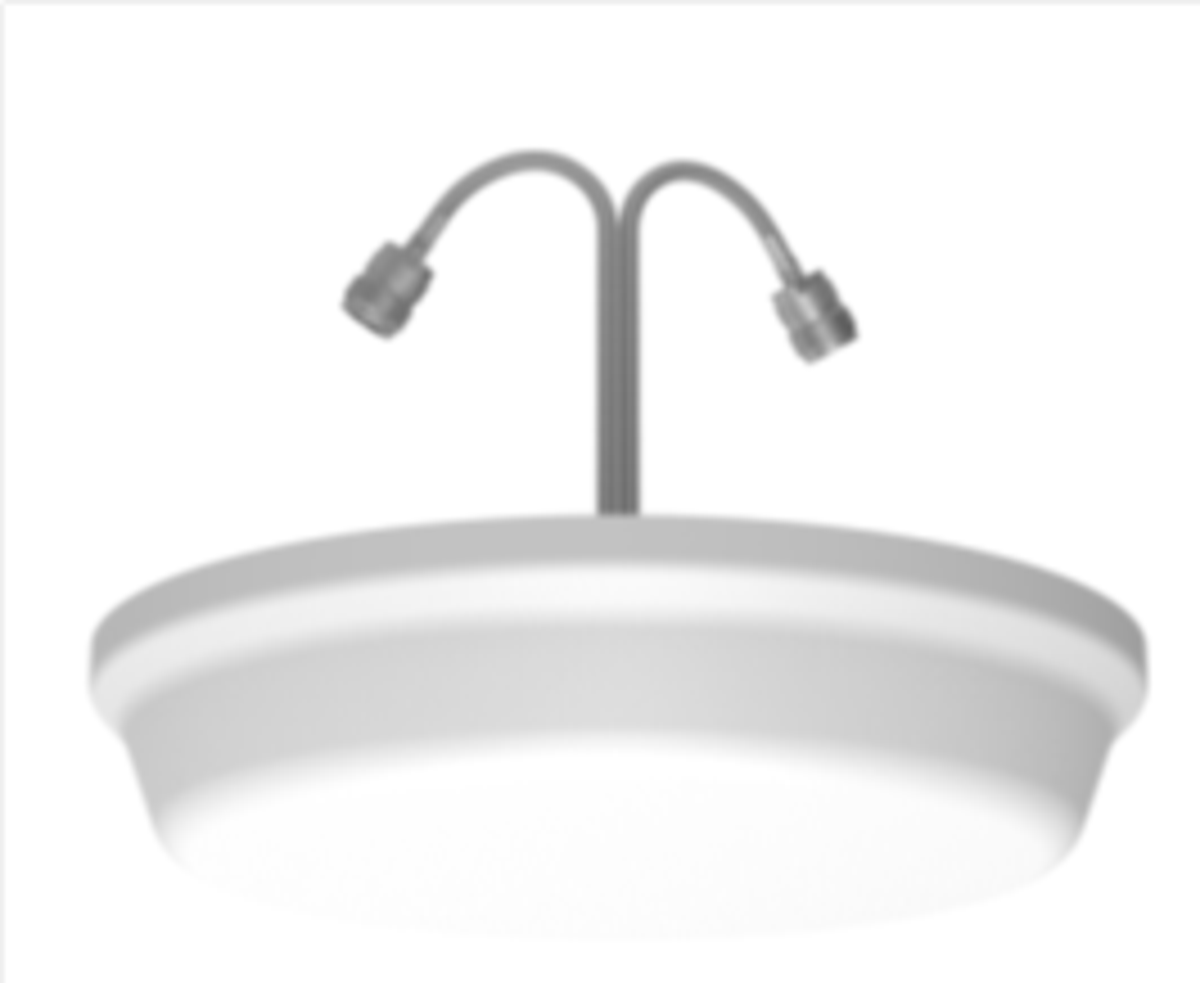

This is an indoor and outdoor, PIM rated, MIMO omnidirectional ceiling mount antenna, covering LTE Cellular bands, 689-960 MHz & 1710-2700 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications. The MIMO (multiple in multiple out) design enhances data throughput even under conditions of interference, signal fading, and multi-path.
