Description

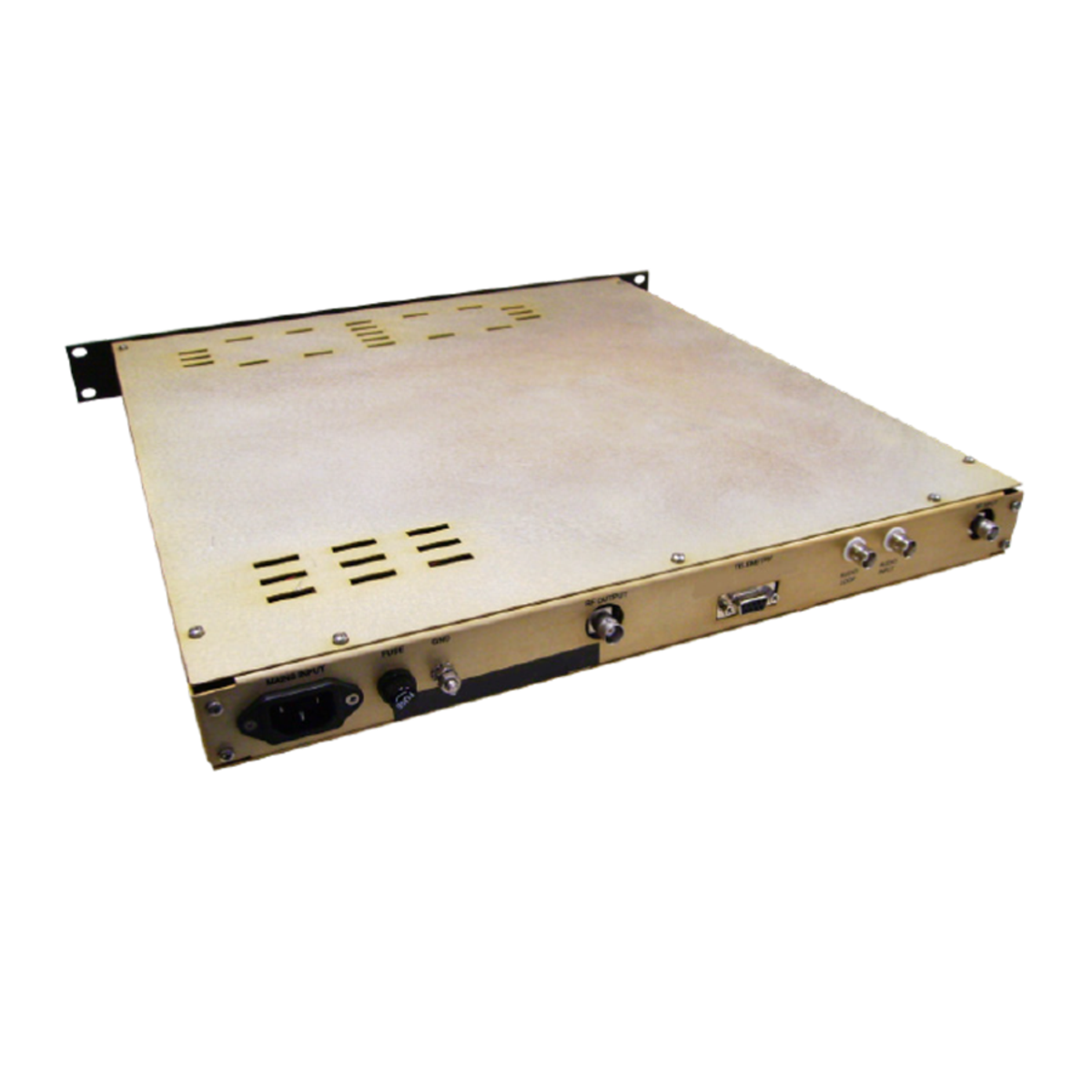

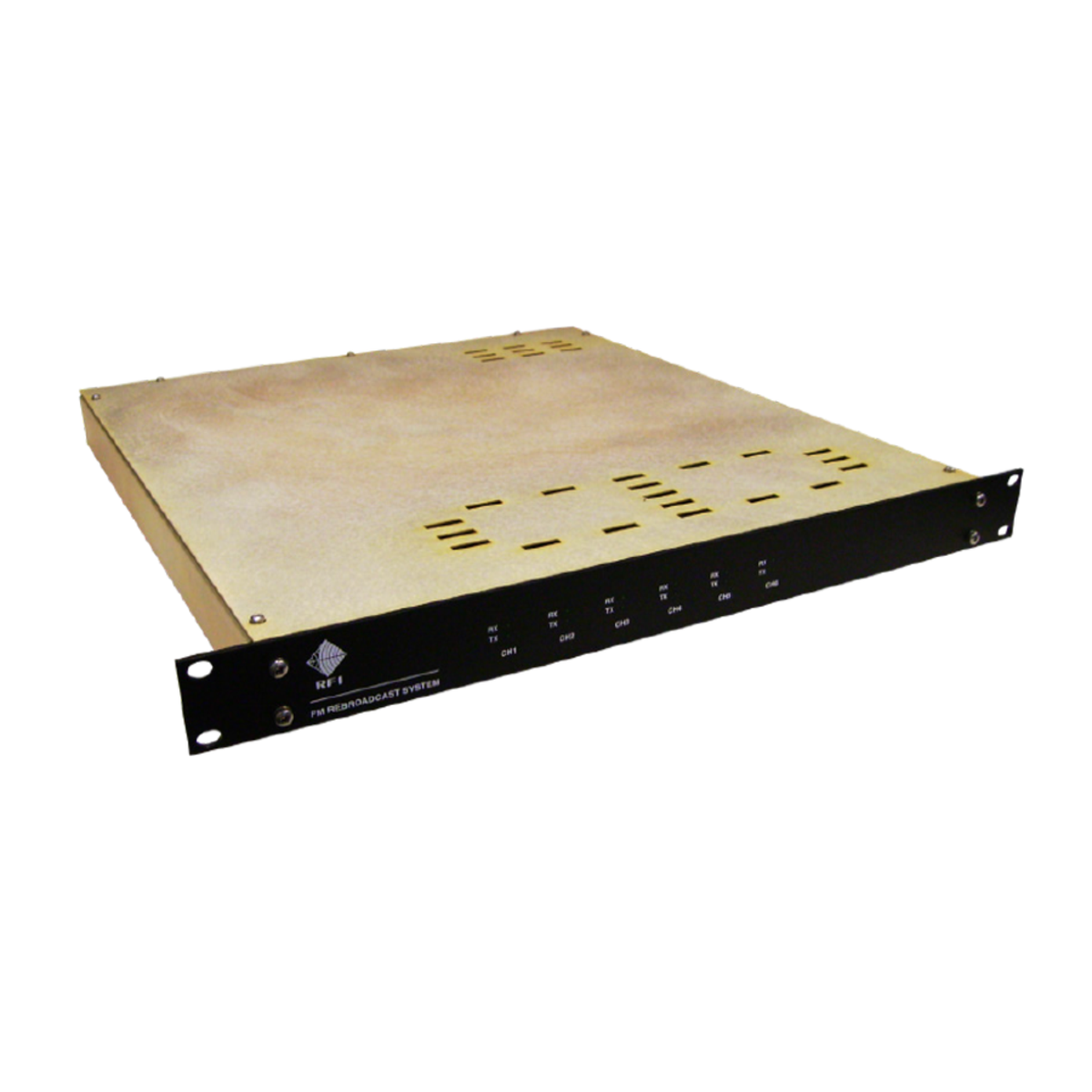

This is a 19” rack-mountable 1RU shelf, 6 Channel VHF FM Stereo rebroadcast repeater with audio break-in functionality on all channels. Internal splitting and combining of all the channels means termination is only required via a single BNC RF input and RF output connector keeping the installation simple. Mechanical user-programming capability is provided for changing the operating frequency for each channel. The audio input for all six channels is via a rear-mounted single isolated BNC balanced audio input connector with an associated audio loop connector option, facilitating daisy chain audio break-in connectivity to more than one shelf. Front-mounted LED’s provide visual operational confirmation of each of the six respective channels.

Features:

• 6Ch VHF FM Stereo on-frequency (non-translating) rebroadcast unit
• Single BNC RF Input and single BNC RF Output for all six channels
• Additional FMC88108-6-NT units can be added for additional rebroadcast frequencies.
• Audio break-in on all six channels from a single audio source
• RF Output is typically fed into a linear VHF RF Power Amplifier prior to signal distribution.
• Compact 1RU 19” rack-mountable shelf with a depth of 470mm.
• Summary Alarm and telemetry control

Specifications:
