Description

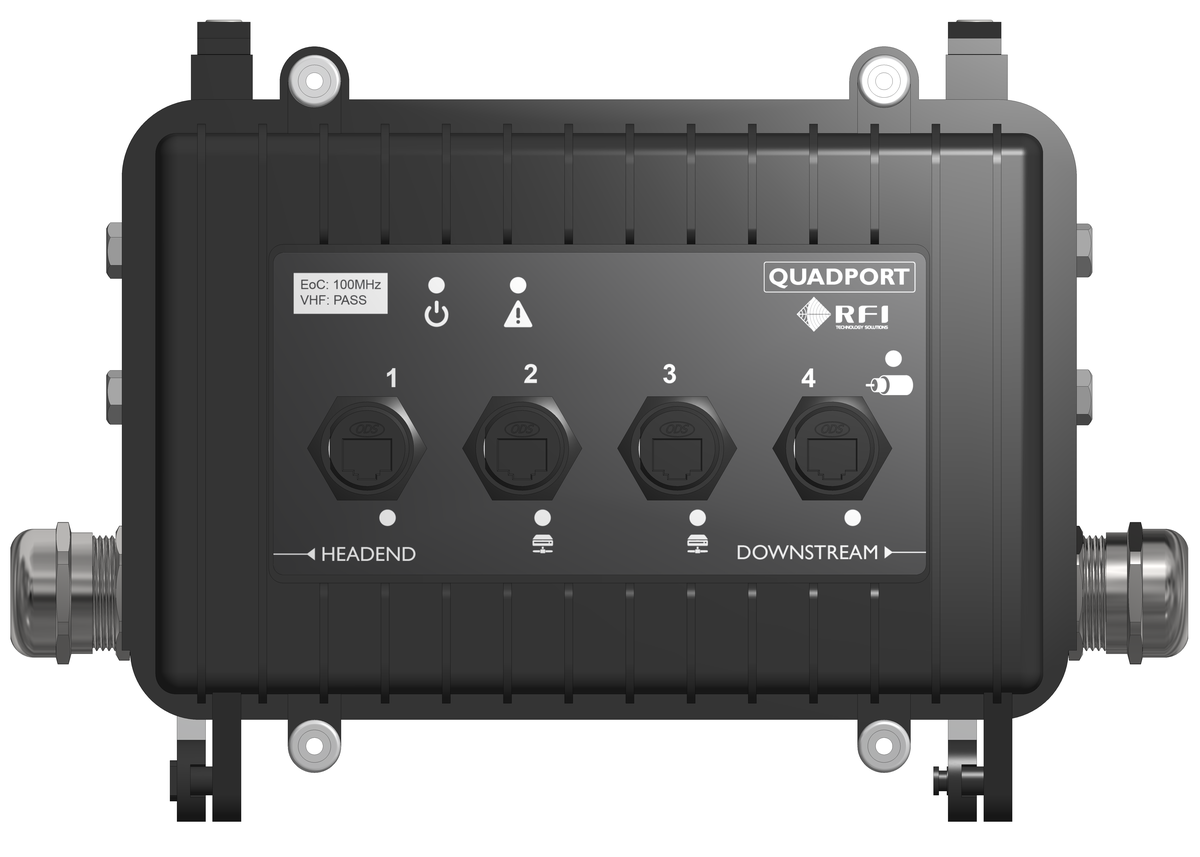

The QuadPort 2 for VHF leaky feeder systems breaks out standards-compliant Ethernet ports right where they are needed, supplying data backhaul for any industrial Ethernet device, while also passing VHF voice radio communications. Power for devices can be supplied via internal screw terminals, accessible via an M20 gland.
Features:
- Installed in-line on the VHF leaky feeder cable
- Passes VHF 2-way radio signals
- Breaks out 4 x GbE ports
- IP66 (Dust-tight and protection against powerful water jets)
- 100 MHz Eoc band plan
- 3.0 dB VHF insertion loss
- Operates from 10 to 60 V DC
Specifications:
| Input Voltage Range V | 10 to 60 V DC |
| Operational Temperature Range | -10° to +60°C |

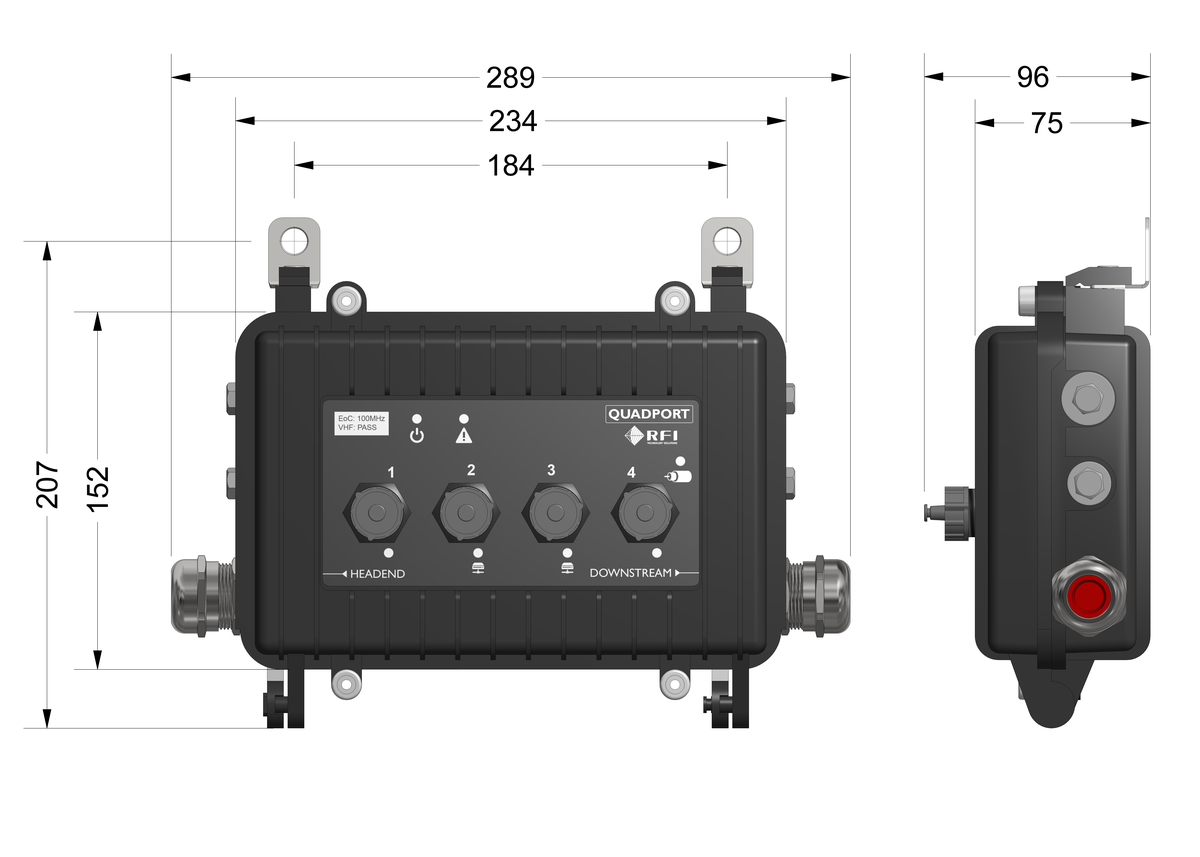

| Dimensions | 289 mm (W) x 207 mm (H) x 96 mm (D) |
| IP Rating | 66 |
