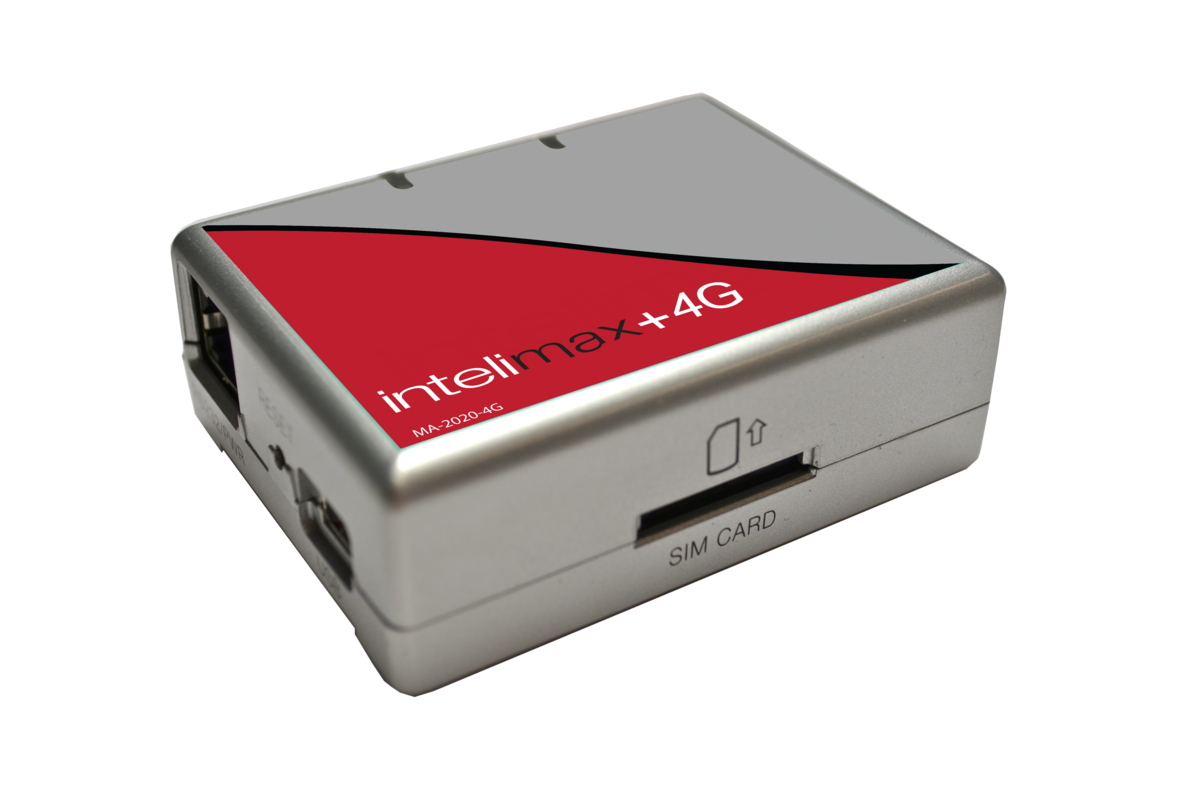

Maxon Intelimax+ 4G M2M CAT1 Serial Modem

Maxon Intelimax+ 4G M2M CAT1 Serial Modem

The Intelimax+4G is a 4G serial modem designed in Australia for remote monitoring applications, as well as data collection and controlling the flow of data between devices and control equipment. The Intelimax+4G is engineered especially to withstand Australia’s vast climate and environmental conditions. Employing an ARM processor, with battery-backed RTC, the Intelimax+4G has a full feature set. This includes extensive event recording, connection management, fault recovery, security features, and remote firmware upgradability. All of which assist in creating a highly reliable communications gateway. Enhanced capabilities also include remote AT Commands, SNMPv3, SSH, Telnet, remote management, onboard IP stack and FTP. This multi-purpose device mounts perfectly in control boxes and alongside other equipment. The Intelimax+4G is suitable for 4G LTE networks and provides a comprehensive range of features that will suit your telemetry requirements.

$500.00

Description

Features:

  • FDD-LTE CAT1, supports Band 28
  • RS232/RS485 Interface (RJ45 Connector) Software Selectable
  • Supports Packet and Circuit Data, 2 way SMS
  • Supports Modem Emulation & AT over IP • Inbuilt FTP client & PPP server
  • Remote configurable and FOTA
  • Supports TCP client, TCP server, UDP server, UDP client, FTP client
  • Supports DDNS
  • Wide input voltage range (7.5-48VDC)
  • Windows GUI for fast configuration and updates

Kit includes:

1 x Intelimax Modem (MA-2020-4G)

1 x SMA Antenna (ANT-LTE-SMA)

1 x Serial Cable (CAB-RJ45-DB9)

2 x Mounting Brackets (SP-5615)



Specifications:

Power Input 6-48VDC
RF Connectors SMA Female
Frequency FDD-LTE Band: 700MHz (B28), 850MHz (B5), 1800MHz (B3) UMTS Band: 850MHz (B5), 2100MHz (B1)
Dimensions 71 x 55 x 26mm
Operating Temperature Range [°C] -40°C – 85°C
IP Rating IP30
Brand Maxon
