Description

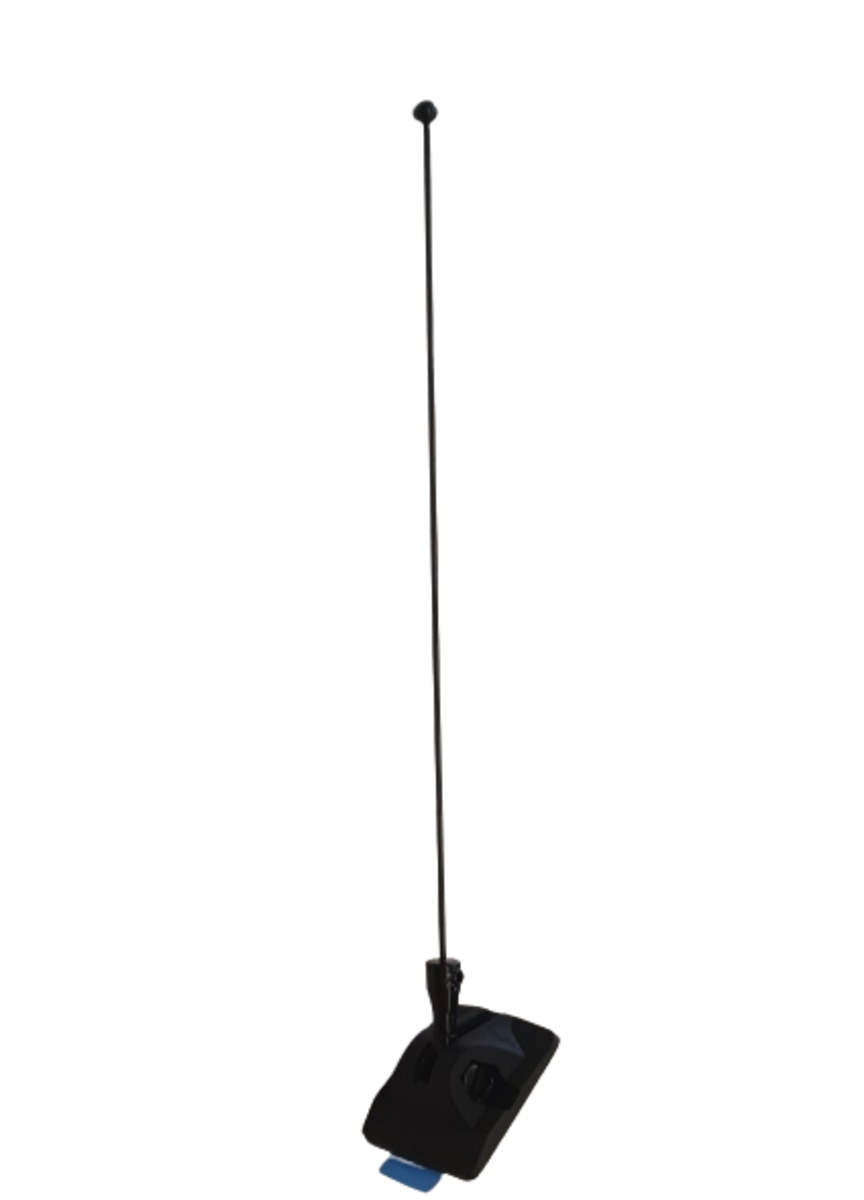

Features: The antenna has been specifically designed for broadband use with no additional tuning required across the whole band from 380-474MHz for a VSWR of less than 1.9:1.
• Unique – glass mount design transmits and receives through the glass
• Weatherproof – water cannot enter the vehicle through gasket failure or cable channels
• Efficient – mounts high on the vehicle for maximum omnidirectional radiation pattern
• Broadband – requires no field tuning across the entire frequency range
• Time-saving – simple mounting method allows no-hole installation in minutes
Specifications:
| Whip Material | Stainless steel with black high gloss finish |
| Whip Length mm | 254 |
| Cable And Connector | 5.0m RG58C/U fitted, no connector supplied |
| Tuning | Supplied tuned |
| Band | 380 – 474MHz |
| Frequency Range | 380 – 474 |
| Power w | 50 |
| Nominal Gain Dbi | Unity |
| VSWR | <1.9:1 |
| Tuned bandwidth | Full. No tuning required |
| Frequency MHz | 380 – 474 |
| Mounting | Threaded Stud |
| Brand | RFI |
