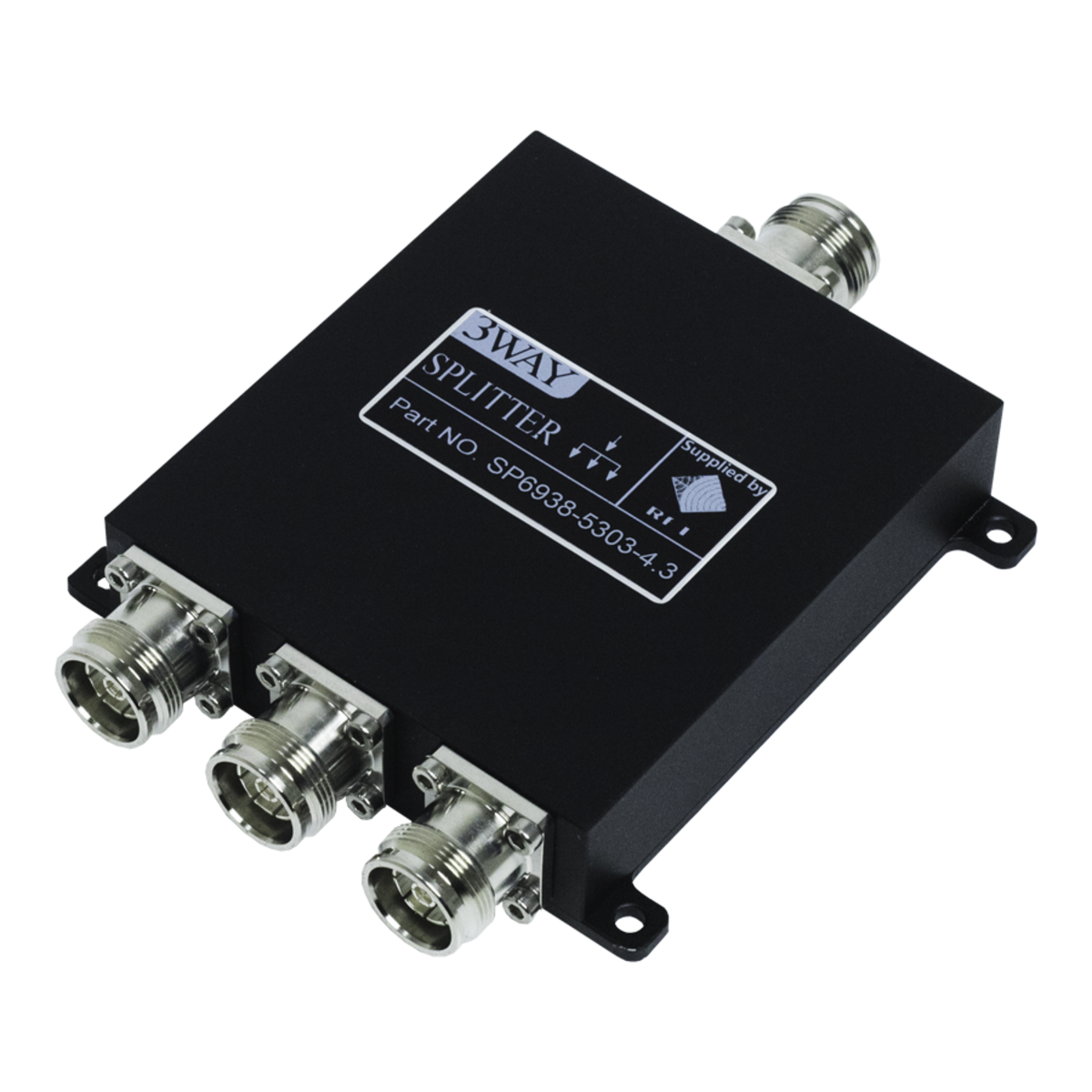

RFI 3-Way Power Splitter 698-3800MHz 300W

RFI 3-Way Power Splitter 698-3800MHz 300W

(1 customer review)

These 3-way devices may be used in a range of RF signal splitting (divider) and combining applications and are designed to split RF source power into an equal ratio of power outputs, or combine multiple inputs to a single output with isolation between the ports. These products feature broad operating frequency bandwidth and multi-carrier PIM rating, and are widely used in Distributed Antenna Systems (DAS), receiver distribution networks and low-power RF signal dividing and combining designs. Their compact size, IP rating and ease of installation suits a wide range both indoor and outdoor deployments.

$258.93

Out of stock

Description

These 3-way devices may be used in a range of RF signal splitting (divider) and combining applications and are designed to split RF source power into an equal ratio of power outputs, or combine multiple inputs to a single output with isolation between the ports. SP6938-5303-4.3 Features: – Full broadband 698-3800MHz, including 5G. – Multi-carrier PIM rating to low -155dBc – Equal ratio signal splitting or combining. – 20dB min. isolation between ports – Easy to install using in-built mounting holes – IP rated (IP65) for indoor and outdoor deployment.



Specifications:

Splits 3
Port To Port Isolation > 20dB typ.
PIM 3rd Order 2x43dBm <160dBc
Finish Black – Painted
Connector Types All Termination Ports 4.3-10 (F)
Insertion Loss dB <5.3dB
Operational Temperature Range -30°C to +60°C / -22°F to +140°F
Connector 4.3-10(F)
Frequency Range 698 – 3800
Brand RFI
Component Type Splitter/Combiner
