Description

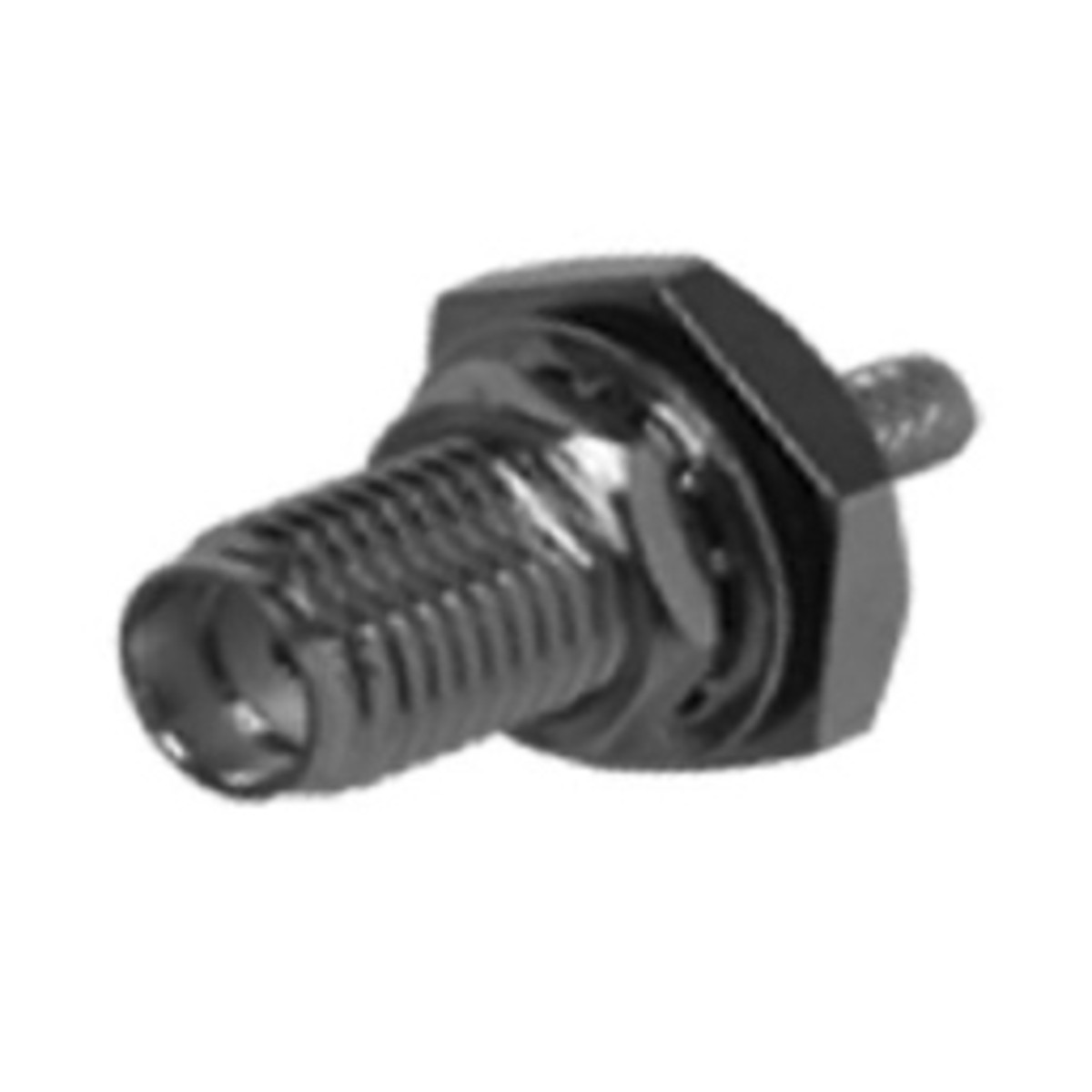

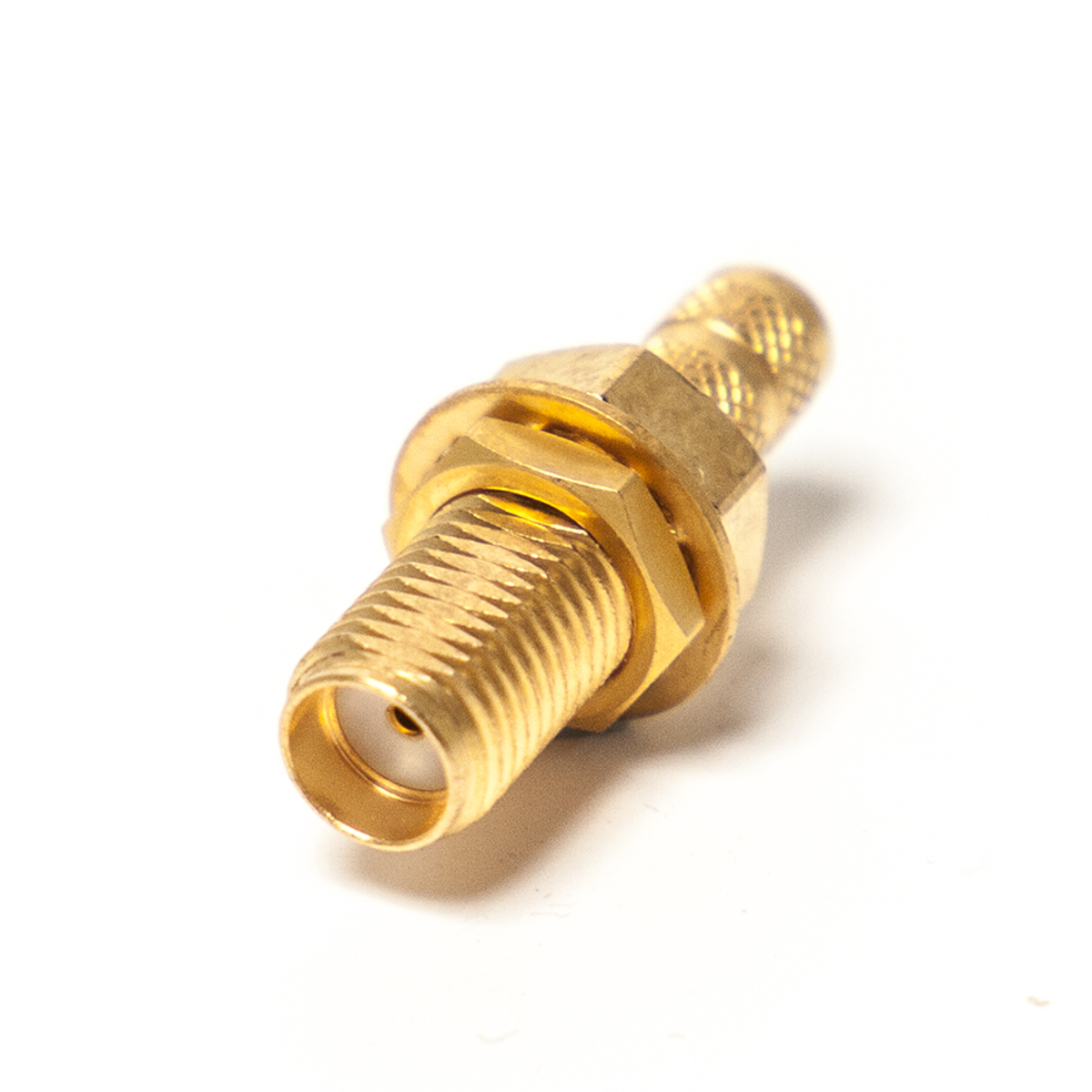

Features: SMA connectors are sub-miniature coaxial connectors used for higher frequency requirements with a precision threaded coupling mechanism. They are a lightweight, high-strength connectors capable of operation up to 18GHz.
Specifications:
| Cable Type Connectors | RG58 |
| Thermal Shock | MIL-STD-107 Test Cond B |
| Salt Spray | MIL-STD-101 Test Cond B |
| Cable Retention | 40 lbs min |
| Coupling Nut Retention | 60lbs Max |
| Durability | 500 matings |
| Mating | 1/4″ – 36 threaded coupling |
| Outer Contact | Crimp |
| Centre Contact | Crimp |
| Vibration | MIL-STD-202 Test Cond B |
| Impedance | 50 |
| Cable Type | RG58 |
| Operational Temperature Range | -65°to 165°C |
| Connector | SMA(F) |
| Frequency MHz | 11 GHz Max. |
| Brand | Pulse |
| Component Type | Connector |
