Description
Features: N Connectors are medium size threaded couplers that will operate between DC to 11 GHz. Offering consistent low broadband VSWR, they have proved very popular over the years in mobile radio applications and are often used in high vibration installations. Their threaded design guarantees a stable connection. * All listed N connectors feature the standard 50 Ohm interface dimensions. 75 Ohm interface dimensional connectors and an expanded range of other N connectors are available.
Specifications:
| Max Frequency | 1.5 GHz |
| Thermal Shock | MIL-STD-107 Test Cond B |
| Salt Spray | MIL-STD-101 Test Cond B |
| Cable Retention | 40 lbs min |
| Coupling Nut Retention | 100lbs Max |
| Durability | 500 matings |
| Mating | 5/8″ – 24 threaded coupling |
| Outer Contact | Crimp |
| Centre Contact | Crimp |
| Vibration | MIL-STD-202 Test Cond B |
| Impedance | 50 Ohm |
| Cable Type | RG59 |
| Operational Temperature Range | -65°to 165°C |

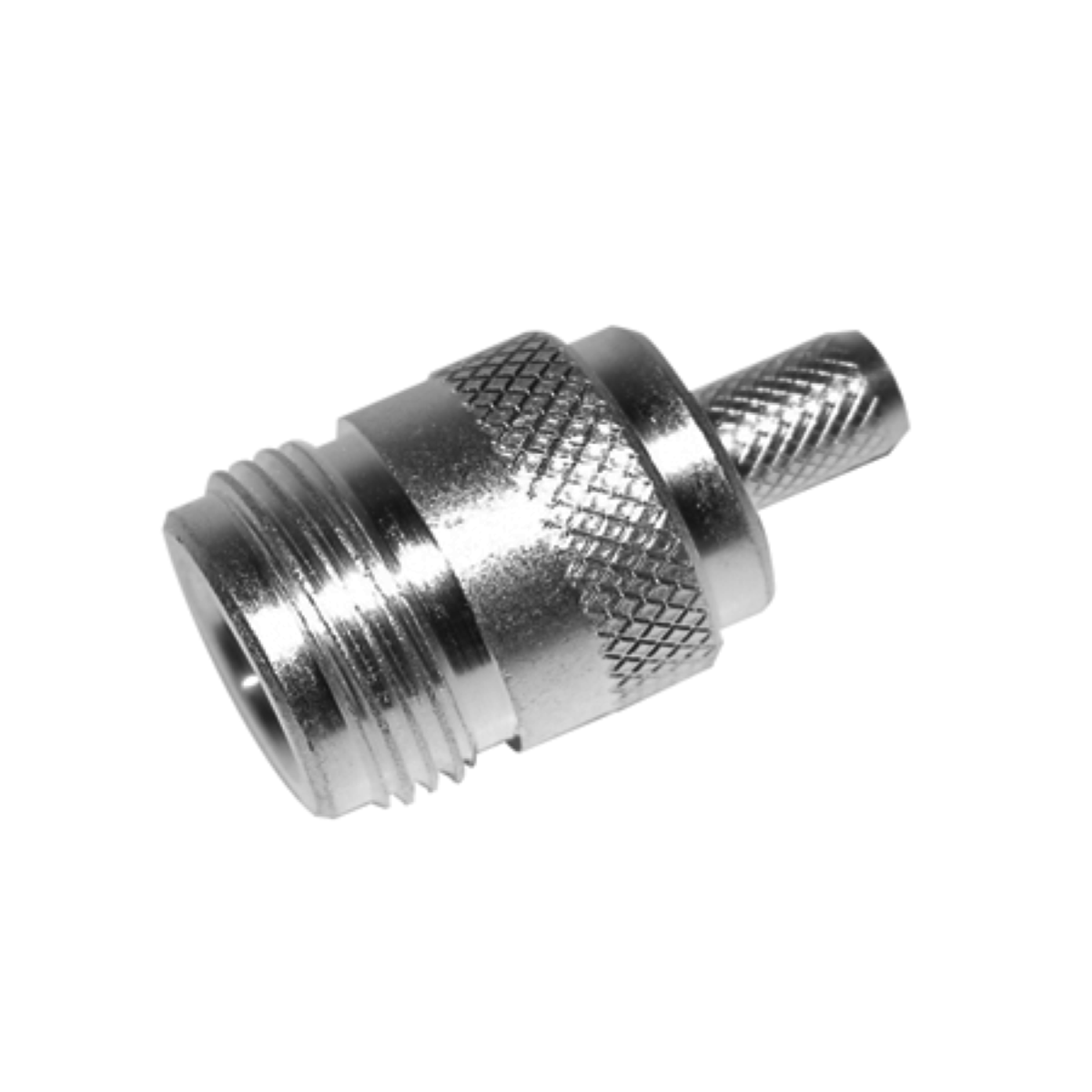

| Connector | N(F) |
| Brand | Pulse |
| Component Type | Connector |
