Description

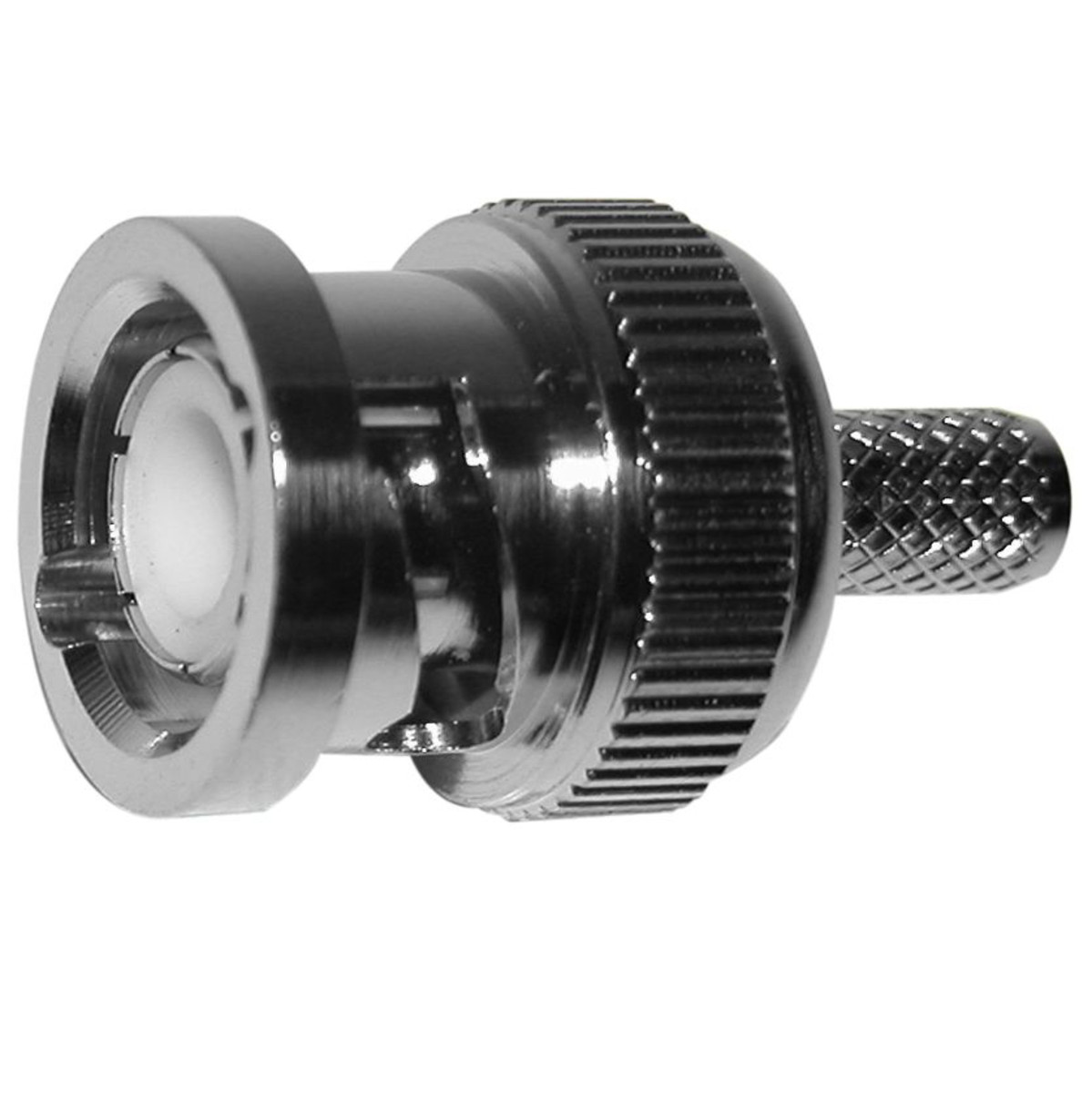

Features: BNC connectors are similar to the TNC series but instead of a thread they use a bayonet coupling mechanism allowing a quicker connect/disconnect. BNC connectors are generally used within an operating range of DC to 4 GHz and are popular with many wireless applications requiring frequent connection and disconnection such as test equipment. Also available in reverse gender versions. * All listed BNC connectors feature the standard 50 Ohm interface dimensions. 75 Ohm interface dimensional connectors and an expanded range of other BNC connectors are available.
Specifications:
| Max Frequency | 4 GHz |
| Cable Type Connectors | RG223 , RG142 |
| Thermal Shock | MIL-STD-107 Test Cond B |
| Salt Spray | MIL-STD-101 Test Cond B |
| Cable Retention | 40 lbs min |
| Coupling Nut Retention | 100lbs Max |
| Durability | 500 matings |
| Mating | Two Stud Bayonet coupling |
| Outer Contact | Crimp |
| Centre Contact | Crimp |
| Vibration | MIL-STD-202 Test Cond B |
| Impedance | 50 Ohm |
| Crimp Set or Tool | A |
| Centre Conductor | Crimp, captive |
| Cable Type | RG223 |
| Operational Temperature Range | -65°to 165°C |
| Connector | BNC(M) |
| Brand | Pulse |
| Component Type | Connector |
