Description

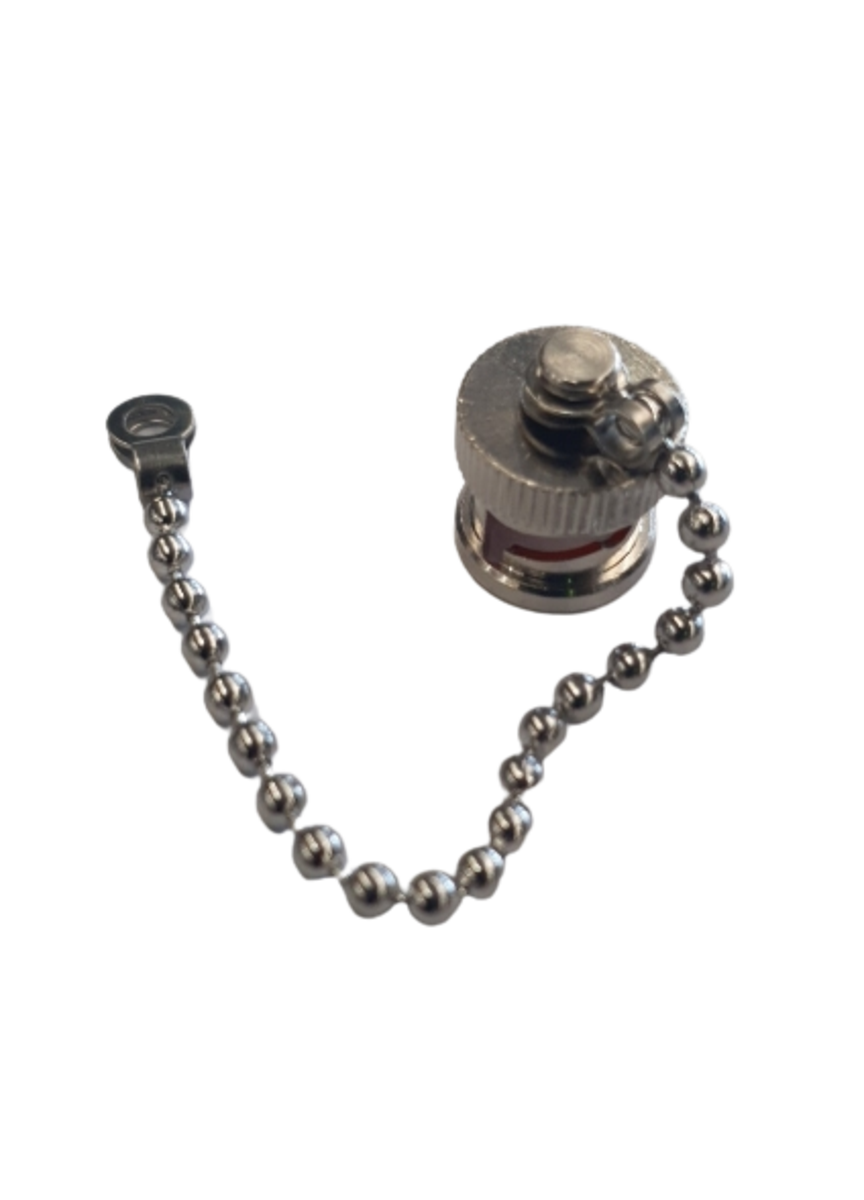

BNC connectors are similar to the TNC series but instead of a thread, they use a bayonet coupling mechanism allowing a quicker connect/disconnect. BNC connectors are generally used within an operating range of DC to 4 GHz and are popular with many wireless applications requiring frequent connection and disconnection such as test equipment. Also available in reverse gender versions.
Specifications:
| Max Frequency | 1 GHz |
| Thermal Shock | MIL-STD-107 Test Cond B |
| Salt Spray | MIL-STD-101 Test Cond B |
| Cable Retention | 40 lbs min |
| Coupling Nut Retention | 100lbs Max |
| Durability | 500 matings |
| Mating | Two stud bayonet coupling |
| Outer Contact | Crimp 3.25mm Hex Jaw |
| Centre Contact | Crimp 0.72 Sq Jaw |
| Vibration | MIL-STD-202 Test Cond B |
| Impedance | 75 Ohm |
| Operational Temperature Range | -65°to 165°C |
| Brand | Pulse |
| Component Type | Connector |
