Description

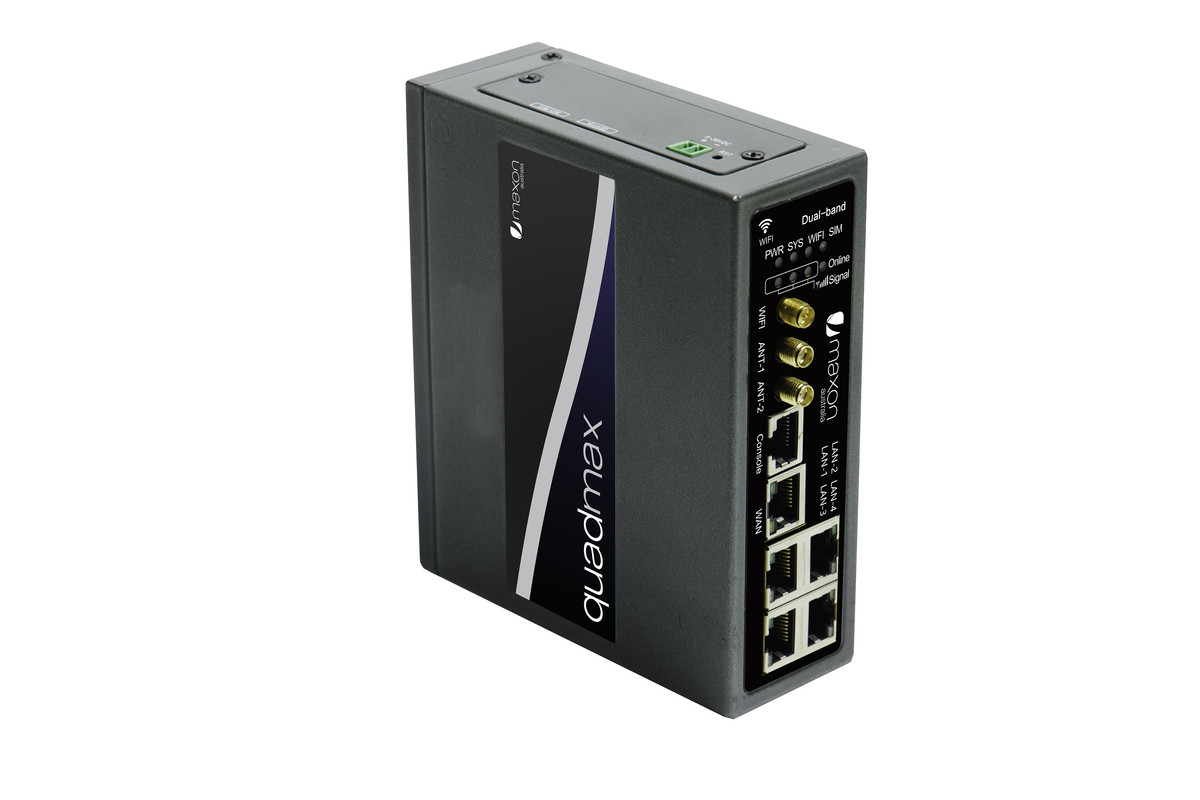

RFI’s Maxon brand of industrial modems are the perfect solution for your next IoT or M2M application. Encased in a robust metal casing, the powerful 4G router has diverse connectivity options including RS232, Wi-Fi to manage your M2M applications over high data speeds. The Wi-Fi connectivity gives this router local wireless capabilities creating an effective industrial hotspot. Failover between 4G, and fixed-wire WAN or Wi-Fi, makes configuring redundant links easy.

Key Features

• LTE – CAT6 – Band 28 Supported
• 6 band DC-HSPA+
• Dual SIM
• Dual-band inbuilt Wi-Fi (IEEE802.11 ac, compatible IEEE 802.11 b/g/n)
• 4 Port Ethernet LAN Connectivity
• 1 Port Ethernet WAN (also configurable as LAN)
• RS-232 via 3-wire console port Adaptor
• Digital I/O: 2 input, 1 output, 1 relay
• Max. 300 Mpbs Downlink, Max. 50 Mpbs Uplink
• Supports FOTA
• Supports DDNS
• Supports Remote SMS Control
• Supports SSH, TCP Server, TCP Client, UDP server, UDP Client
• Support low power consumption mode, including sleep mode, scheduled online/Offline mode
• Supports simultaneous access point/client mode Accessories
• 12 VDC Power Supply

Kit Includes:

x1 MA-6060 Modem

x2 Cellular Mag Mount Antennas

x2 Wi-Fi Elbow Antennas

x1 GPO Plug Pack

x1 Ethernet Cable

x1 Serial Cable

• Alternative external antenna options
