Name: H&S QMA(M) Solder/Crimp Style Connector For RG58 Type Cable - Digital Sydney Communications
Price: 27.73 AUD
Availability: OutOfStock
Rating: 5.00 (1 reviews)

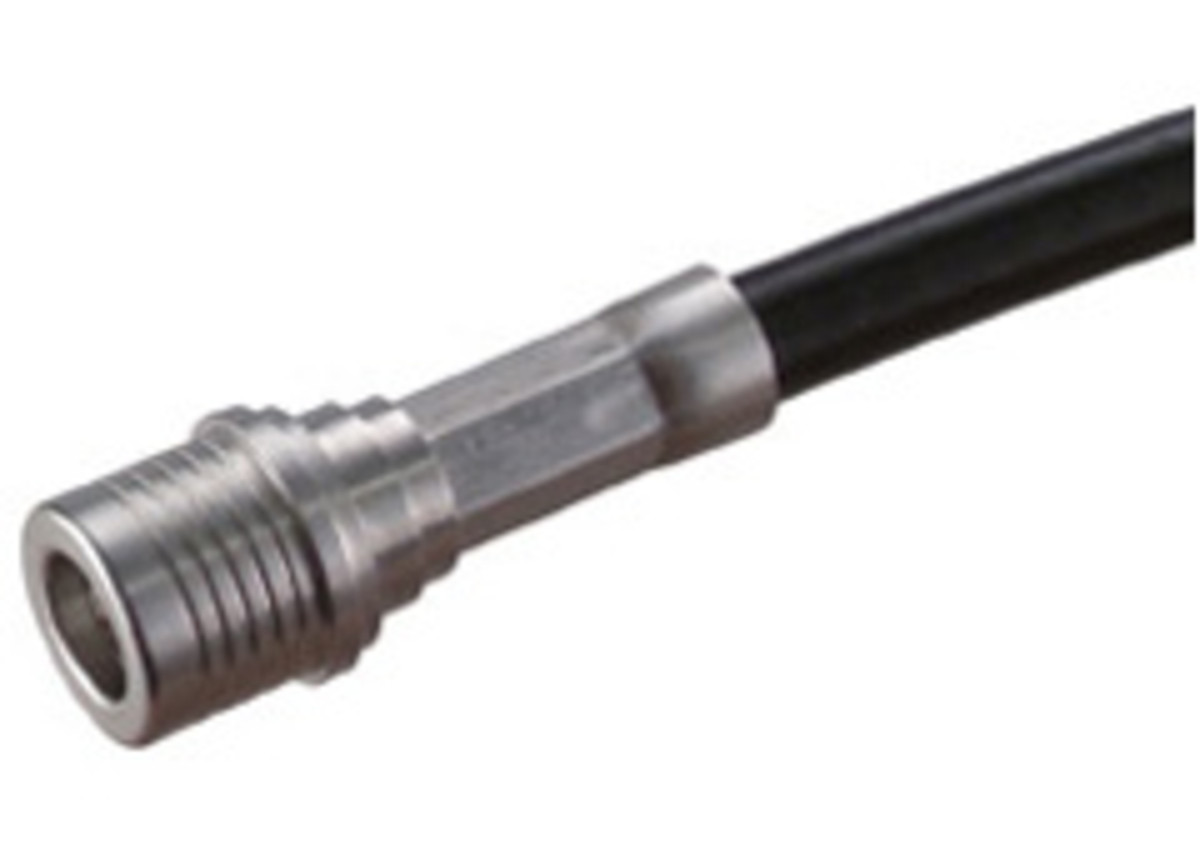

H&S QMA(M) Solder/Crimp Style Connector For RG58 Type Cable

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

HUBER+SUHNER QMA coaxial connectors are available with 50 Ohm impedance. The frequency range extends to 18 GHz, depending on the connector and cable type, however, most of the QMA connectors are Return Loss optimized for frequencies up to 6GHz. The interface is based on the SMA dimension, but, instead of a threaded coupling mechanism, a new snap-lock mechanism is used.

$27.73

Out of stock

Description

The QMA interface has a very similar performance to the SMA, but in addition, it offers an easier, faster and safer coupling operation, helping the customers to save significant time during the production of their systems. The packaging density of QMA is increased compared to SMA connectors thanks to the fact that no torque spanner is required to fasten the coupling nut. QMA is not intermateable with SMA.
Type: Plug
Impedance: 50 Ohms
Frequency: 18 GHz
Termination: Solder center, Crimp outer
Body style: Straight Body
Material: Brass Body
Finish: SUCOPLATE

Specifications:
