Description

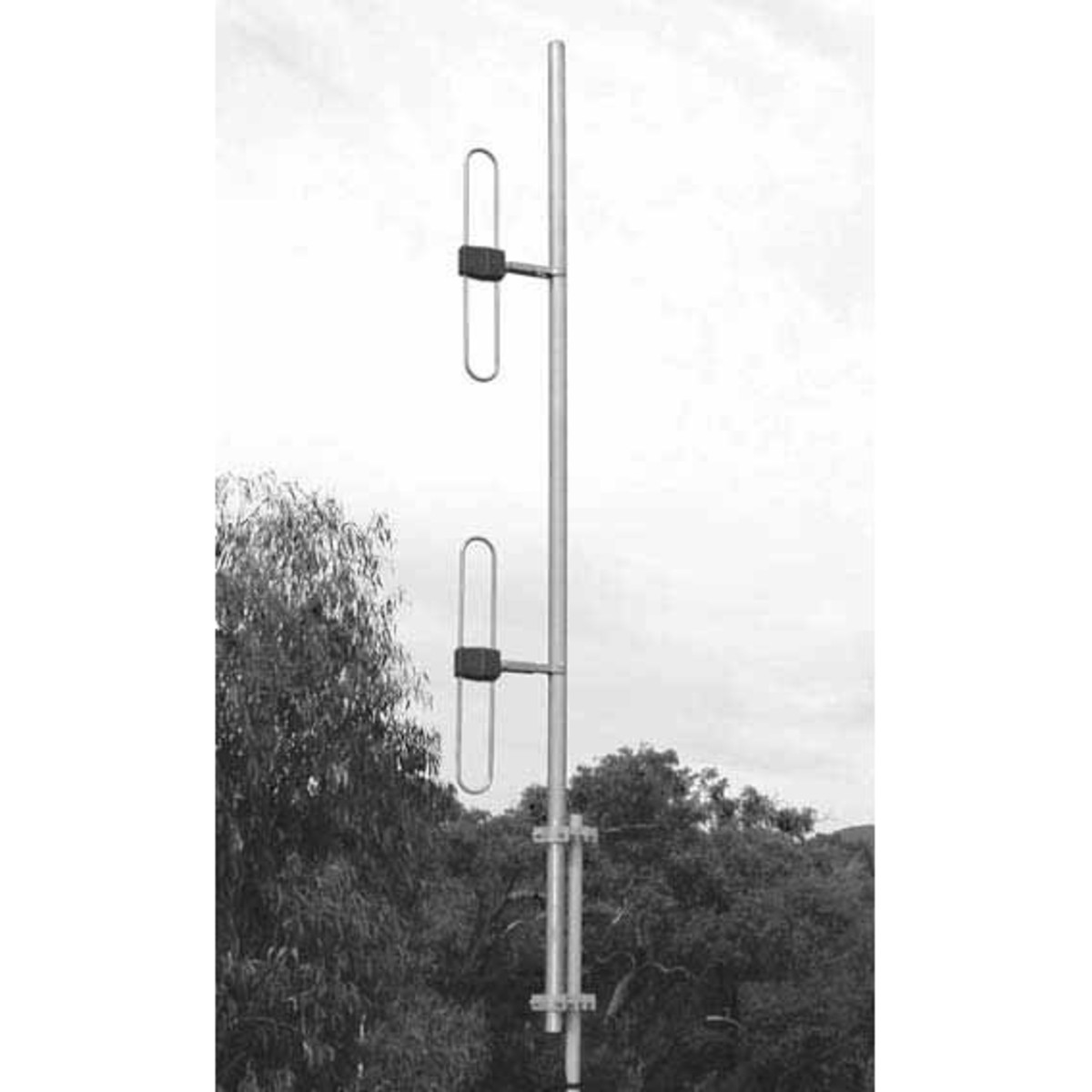

Features: OA series arrays have an almost full 180° horizontal beamwidth. This eliminates the possibility of fading at the extremities of the target coverage area. Antenna gain is approximately unity at the rear of the antenna. As would be expected from a cardioid array, the vertical beamwidth is slightly greater than its BA (omnidirectional) or EA (elliptical) pattern counterparts. OA series arrays feature the same solid construction as the BA and EA Series. The folded dipoles utilize an internal phasing harness in stable, PTFE-based double-screened coaxial cable with PE jacket for optimum weatherproofing. The offset arrays incorporate extensive sidelobe suppression, null fill, and power input level of 750 watts continuous. With all-welded construction and superior internal harness construction, these antennas provide not only excellent pattern characteristics but also high levels of intermodulation and noise suppression. The entire array rests at ground potential and offers the ultimate in lightning-resistant antennas. •New 4.3-10 high performance connector • High gain offset (cardioid) pattern. 5dBd or 9dBd versions available • Operate over entire 136-174 MHz VHF band without tuning or adjustment • Modular mix and match format allows future-proofing installations • 3° downtilt option available • Inverted mounting version available • Industry-leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum performance Options available include: •All stainless steel 316 grade construction (5dBd array only) •Inverted mounting configuration •OA40-41 may be operated as 2 x 5dBd arrays by removing external cable harness •Factory pre-set downtilt of 3° may be specified on OA20 & OA40 VHF series antennas using model no. trailer – T3 •OA20 series can be optionally supplied in all-welded 316 grade stainless steel. Dimensions vary slightly

Specifications:
