Description

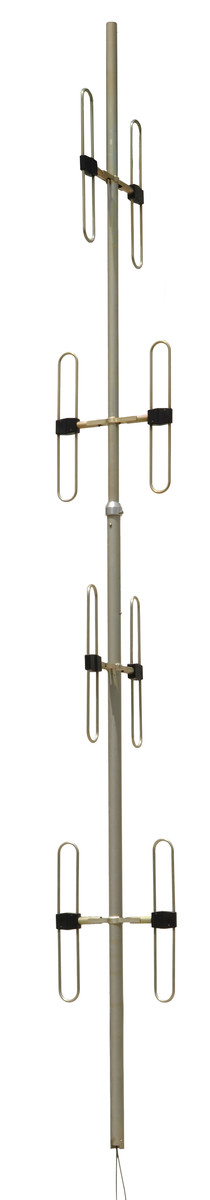

Features: Each of the dipoles (BA80-41) are fed via an internal phasing harness in stable, PTFE-based double-screened coaxial cable with jacket for optimum weatherproofing. These omnidirectional arrays incorporate extensive sidelobe suppression and null fill, and the binary phasing arrangement ensures consistent omnidirectional coverage and vertical pattern control. These arrays provide unparalleled bandwidth, covering the entire 136-174 MHz band and offer gain of 3 or 6dBd over that band with a VSWR of less than 1.5:1. With input power levels of 750 watts, the antennas are suitable for high power paging sites or high density, multi-channel installations requiring maximum performance and service life. With all-welded construction and superior internal harness construction, these antennas provide not only excellent pattern characteristics but also defined, high levels of intermodulation and noise suppression. The entire array rests at ground potential and offers the ultimate in lightning-resistant antennas. •New high performance 4.3-10 connector •High gain omnidirectional patterns • Operate over entire 136-174 MHz VHF band without tuning or adjustment • Modular mix and match format allows future-proofing installations • Inverted mounting version available • Industry-leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum performance Further options in the BA80-41-P include •BA80-41 may be operated as 2 x 3dBd arrays by removing external cable harness (PA42-41-P) • Factory pre-set downtilt of 3°, 5° & 8° may be specified on BA80 series antennas using model no. trailer -T3, -T5 & -T8 •BA40 series can be optionally supplied in all welded 316 grade stainless steel. Dimensions vary slightly

Specifications:
