Description

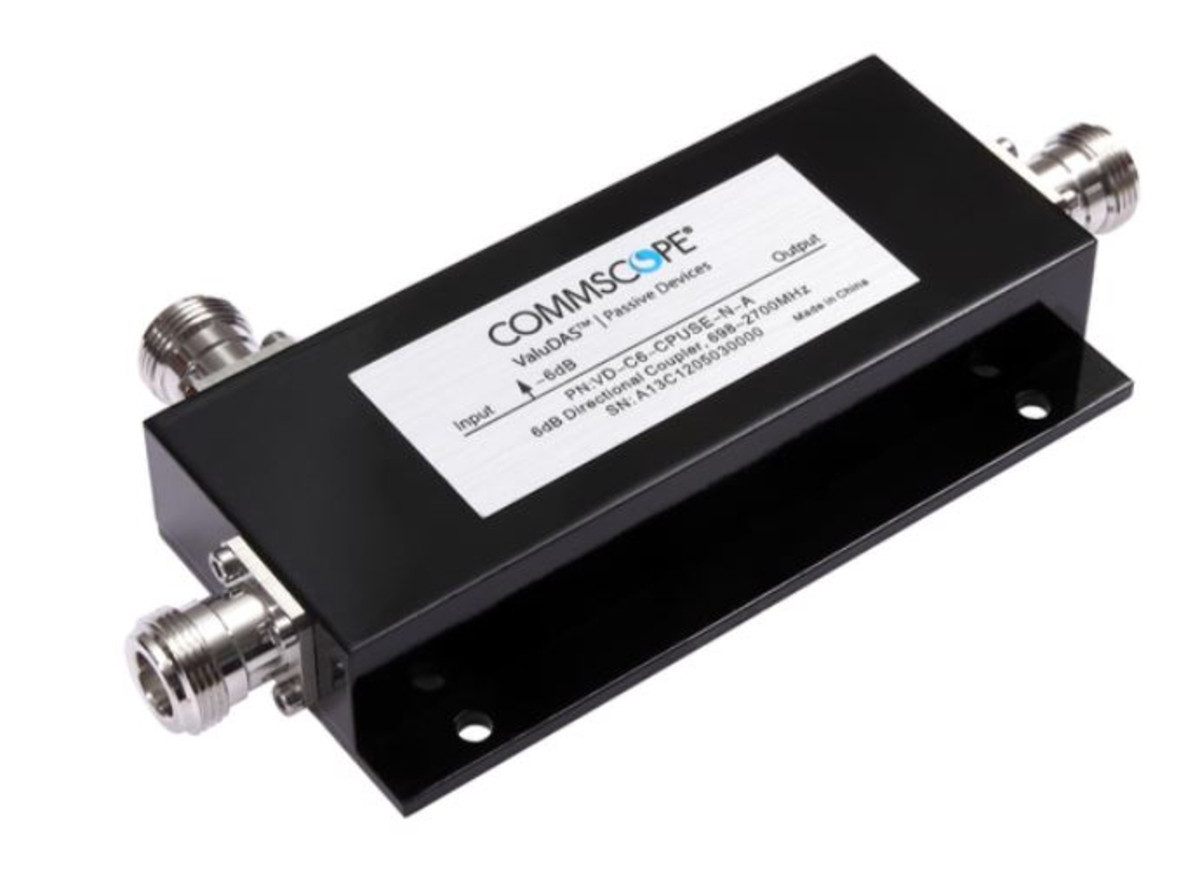

General Specifications Device Type Coupler Application Indoor Color Black Inner Contact Plating Silver Interface N Female Outer Contact Plating Trimetal Dimensions Height 22 mm | 0.866 in Width 75 mm | 2.953 in Length 155 mm | 6.102 in Electrical Specifications 3rd Order IMD -155 dBc 3rd Order IMD Test Method Two +43 dBm carriers Insertion Loss at Frequency Band 1.7 dB @ 698“2700 MHz Return Loss, minimum 20.8 dB Average Power, maximum 200 W Coupling 6 dB Coupling Tolerance ±1.0dB Impedance 50 ohm Isolation at Frequency Band 26 dB @ 698“2700 MHz Operating Frequency Band 698 “ 2700 MHz Peak Power, maximum 1 kW Reflected Power, maximum 40 W VSWR 1.2
