Description

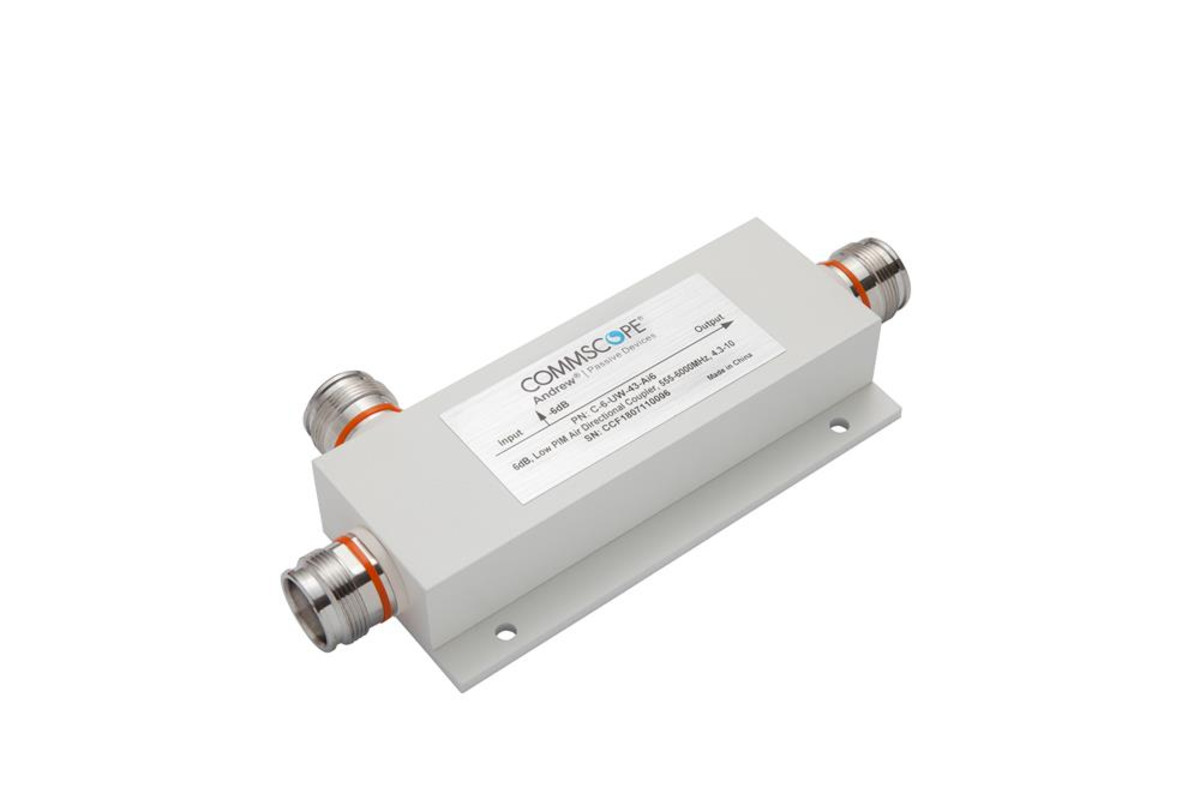

Product Classification Product Type Directional coupler General Specifications Device Type Coupler Interface 4.3-10 Female Color White Electrical Specifications Operating Frequency Band 555 “ 6000 MHz 3rd Order IMD -165.0 dBc 3rd Order IMD Test Method Two +43 dBm carriers Average Power, maximum 300 W Coupling 6.0 dB Coupling Tolerance ±1.1dB Impedance 50 ohm Insertion Loss at Frequency Band 1.8 dB @ 555“6000 MHz Isolation at Frequency Band 18 dB @ 4900“6000 MHz | 22 dB @ 3800“4900 MHz | 24 dB @ 2700“3800 MHz | 26 dB @ 555“2700 MHz Peak Power, maximum 1 kW Reflected Power, maximum 40 W VSWR at Frequency Band 1.2:1 @ 555“2700 MHz | 1.25:1 @ 2700“3800 MHz | 1.3:1 @ 3800“6000 MHz
Specifications:
| Connector | 4.3-10(F) |
| Brand | Commscope |
| Component Type | Coupler |
