Description

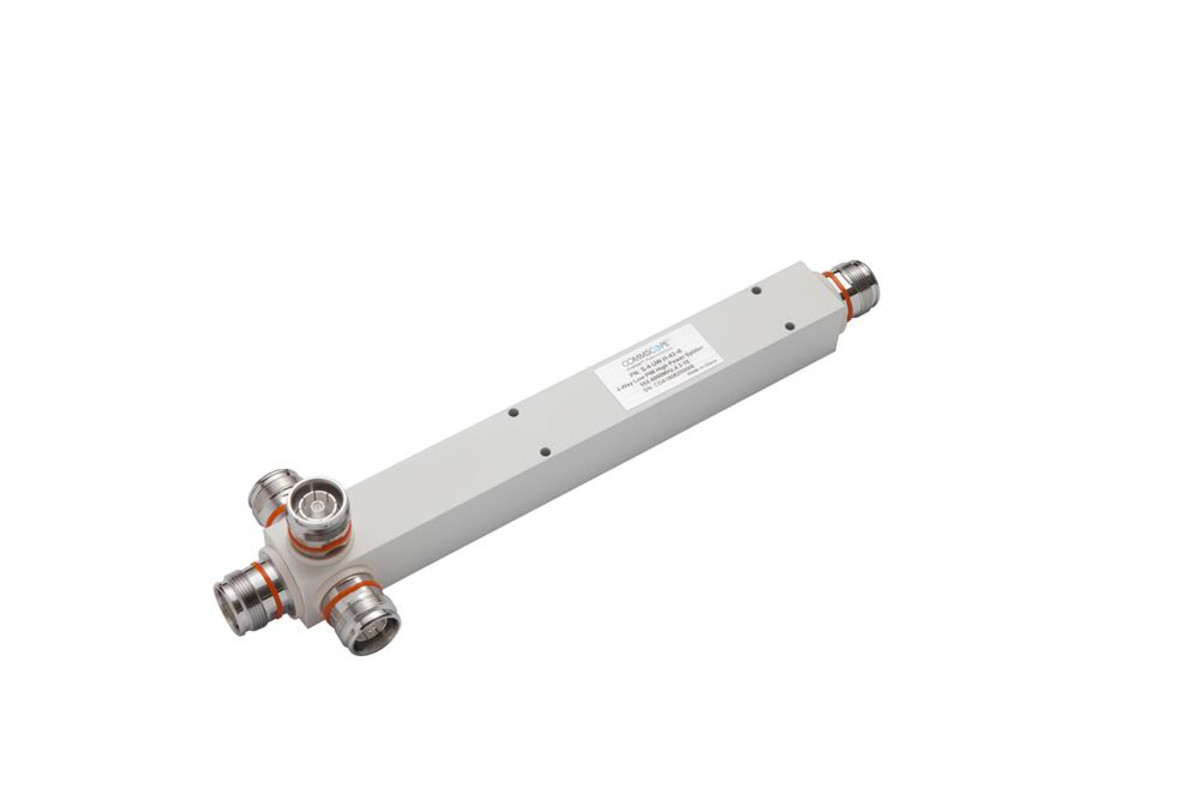

Product Classification Product Type Coaxial splitter General Specifications Device Type Splitter Interface 4.3-10 Female Color White Electrical Specifications Operating Frequency Band 555 “ 6000 MHz 3rd Order IMD -165.0 dBc 3rd Order IMD Test Method Two +43 dBm carriers Average Power, maximum 300 W Impedance 50 ohm Insertion Loss at Frequency Band 0.3 dB @ 555“2700 MHz | 0.55 dB @ 2700“3800 MHz | 0.75 dB @ 3800“4900 MHz | 1.4 dB @ 4900“6000 MHz Peak Power, maximum 3 kW Power Rating, Splitting 300 W Reflected Power, maximum 300 W Return Loss, minimum 19.1 dB Split Loss 6.0 dB VSWR at Frequency Band 1.25 @ 555“2700 MHz | 1.25:1 @ 2700“3800 MHz | 1.3:1 @ 3800“6000 MHz

Specifications:
