Description

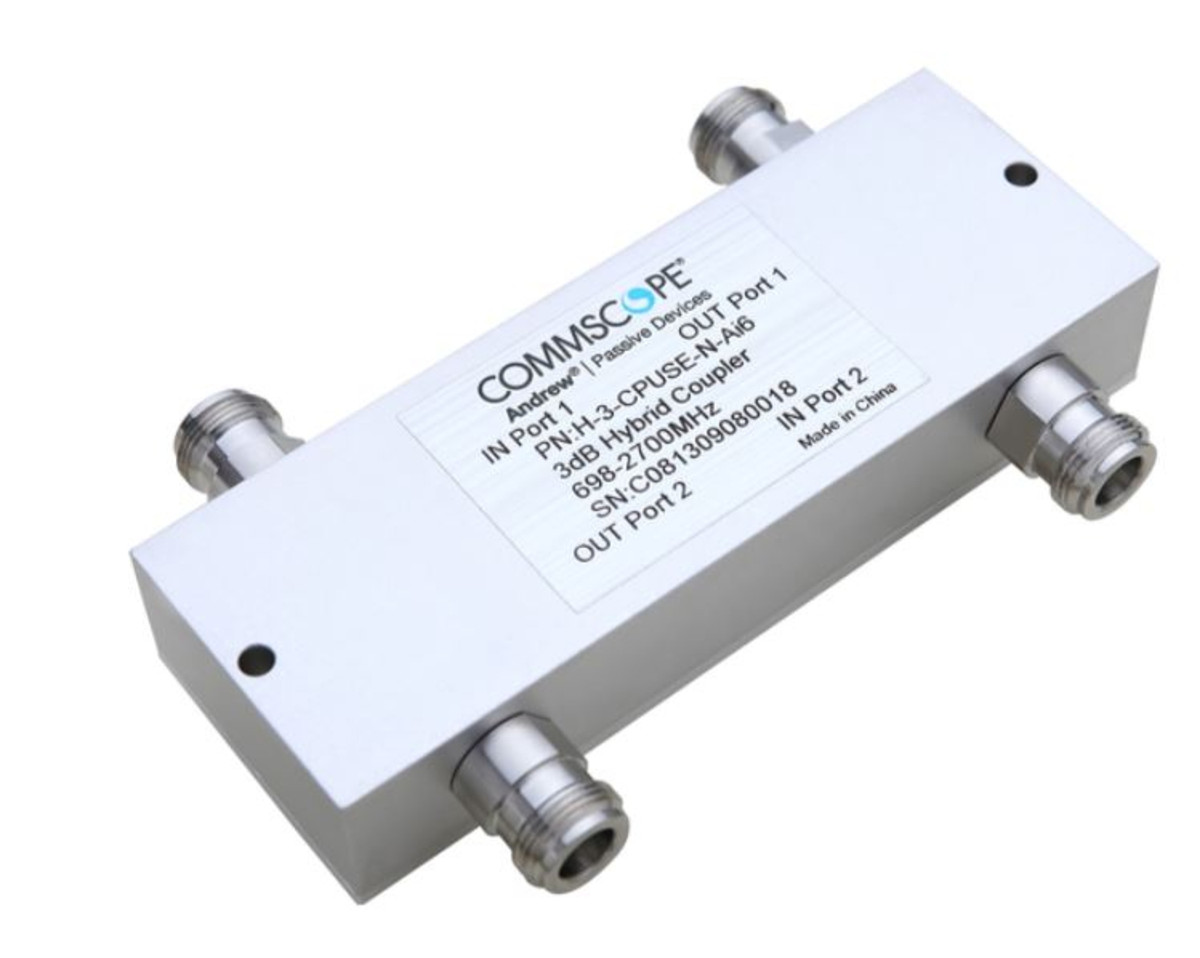

General Specifications Device Type Hybrid Application Indoor/Outdoor Color Silver Inner Contact Plating Silver Interface N Female Outer Contact Plating Trimetal Dimensions Height 26 mm | 1.024 in Width 85 mm | 3.346 in Length 138 mm | 5.433 in Electrical Specifications 3rd Order IMD -160 dBc 3rd Order IMD Test Method Two +43 dBm carriers Insertion Loss at Frequency Band 0.2 dB @ 555“2700 MHz Return Loss, minimum 20.8 dB Average Power, maximum 200 W Coupling 3.1 dB Coupling Tolerance ±0.6dB @ 698“2700 MHz | ±1.2dB @ 555“698 MHz Impedance 50 ohm Isolation at Frequency Band 26 dB @ 555“2700 MHz Operating Frequency Band 555 “ 2700 MHz Peak Power, maximum 1 kW Reflected Power, maximum 200 W VSWR 1.2

Specifications:
