Description

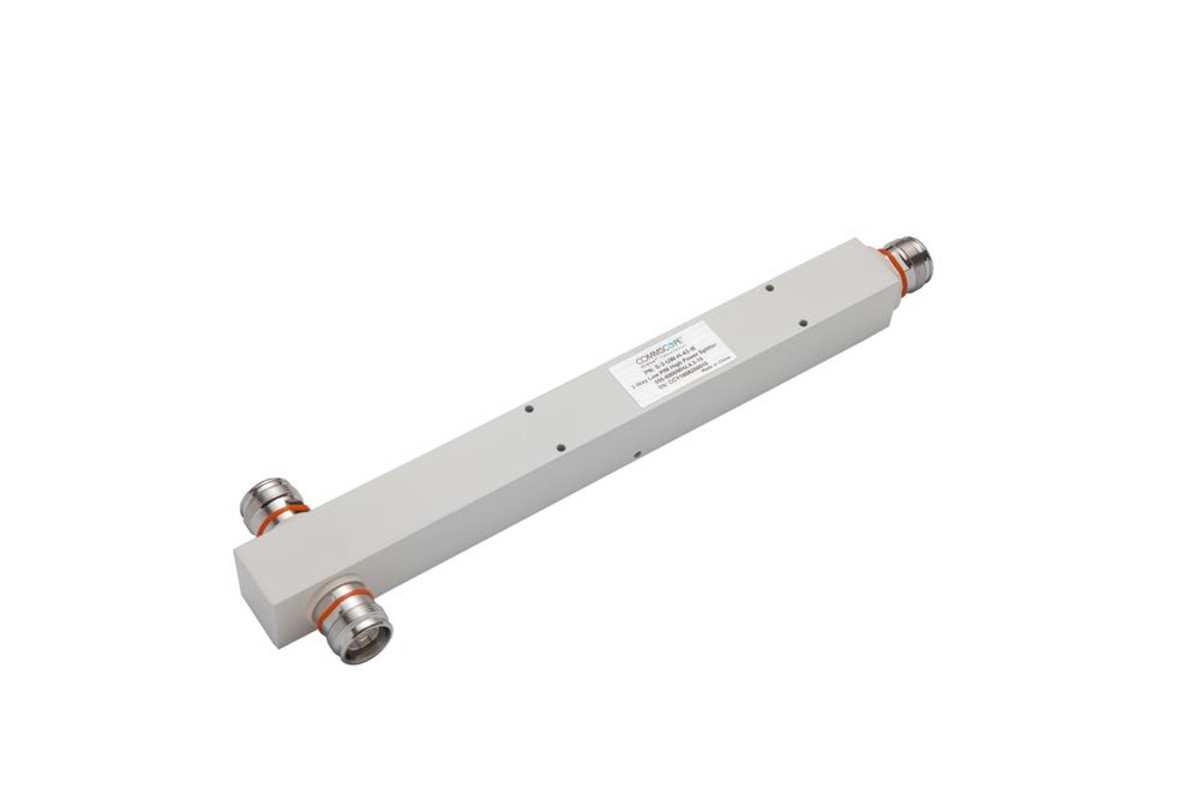

Product Classification Product Type Coaxial splitter General Specifications Device Type Splitter Interface 4.3-10 Female Color White Electrical Specifications Operating Frequency Band 555 “ 6000 MHz 3rd Order IMD -165.0 dBc 3rd Order IMD Test Method Two +43 dBm carriers Average Power, maximum 300 W Impedance 50 ohm Insertion Loss at Frequency Band 0.2 dB @ 555“2700 MHz | 0.3 dB @ 2700“6000 MHz Peak Power, maximum 3 kW Power Rating, Splitting 300 W Reflected Power, maximum 300 W Return Loss, minimum 19.1 dB Split Loss 3.0 dB VSWR 1.25
Specifications:
| Connector | 4.3-10(F) |
| Brand | Commscope |
| Component Type | Splitter/Combiner |
