Description
These Pulse Splitters / Combiners are used in a variety of RF power dividing and combining applications. Typically used in RF systems for distributing power throughout feeder cable networks where isolation between ports is required. These products feature broad operating frequency bandwidth and multi-carrier PIM rating, and are widely used in Distributed Antenna Systems (DAS), receiver distribution networks and low-power RF signal dividing and combining designs.

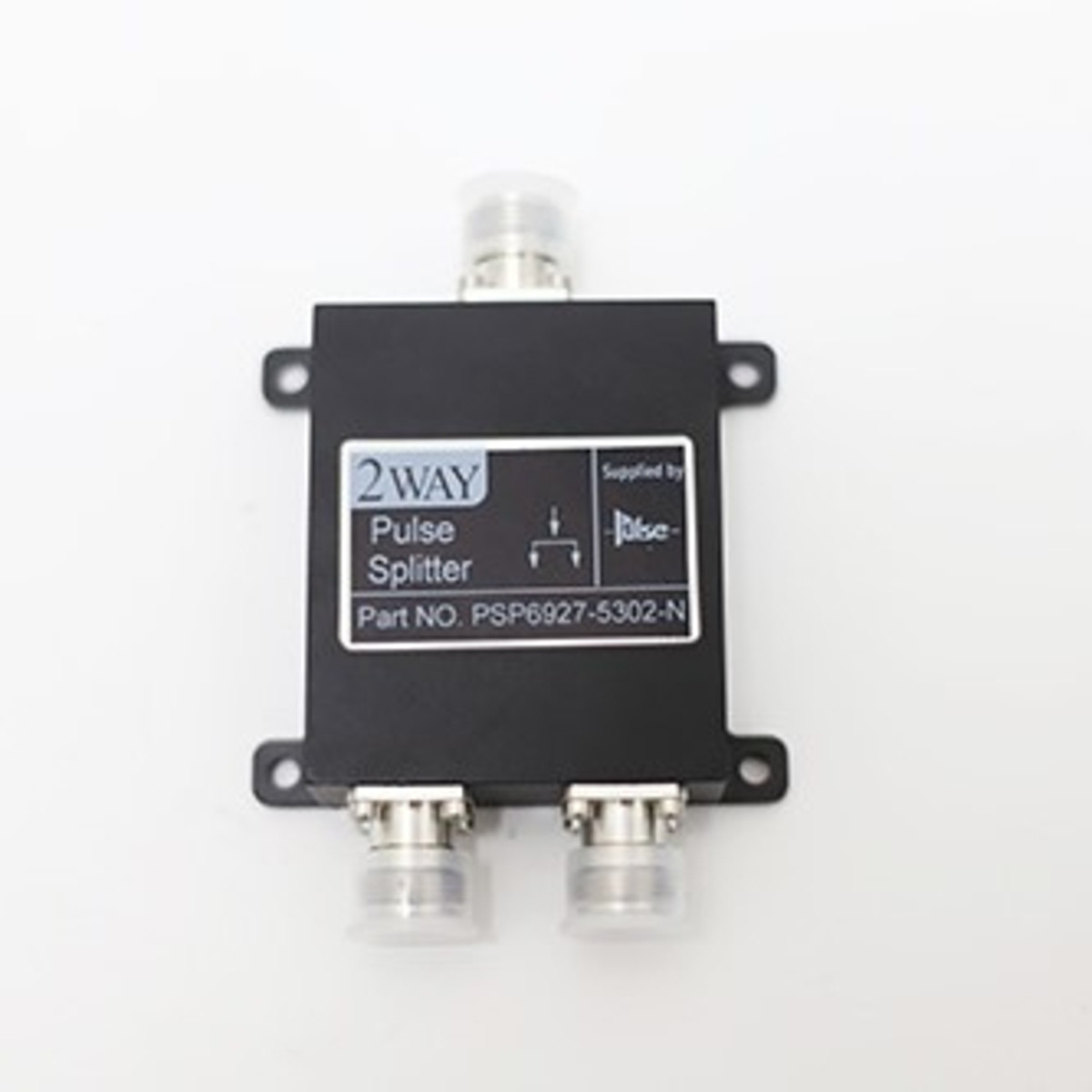

The Pulse PSP6927-5302-N Features: – Broadband 698-2700MHz operation.
– Multi-carrier PIM rating.
– Equal ratio signal splitting or combining.
– Great isolation between ports – Easy to install using provided mounting tabs.
– Three power dividing/combining options available (2, 3 & 4 Way)
| Splits | 2 |
| Port To Port Isolation | > 20dB typ. |
| Finish | Black – Painted |
| Connector Types All Termination Ports | N (F) |
| Insertion Loss dB | <3.3dB |
| Operational Temperature Range | -25° C to +65° C |
| Connector | N(F) |
| Frequency Range | 698 – 2700 |
| Weight [kg] | 0.25 |
| Component Type | Splitter/Combiner |
