Description

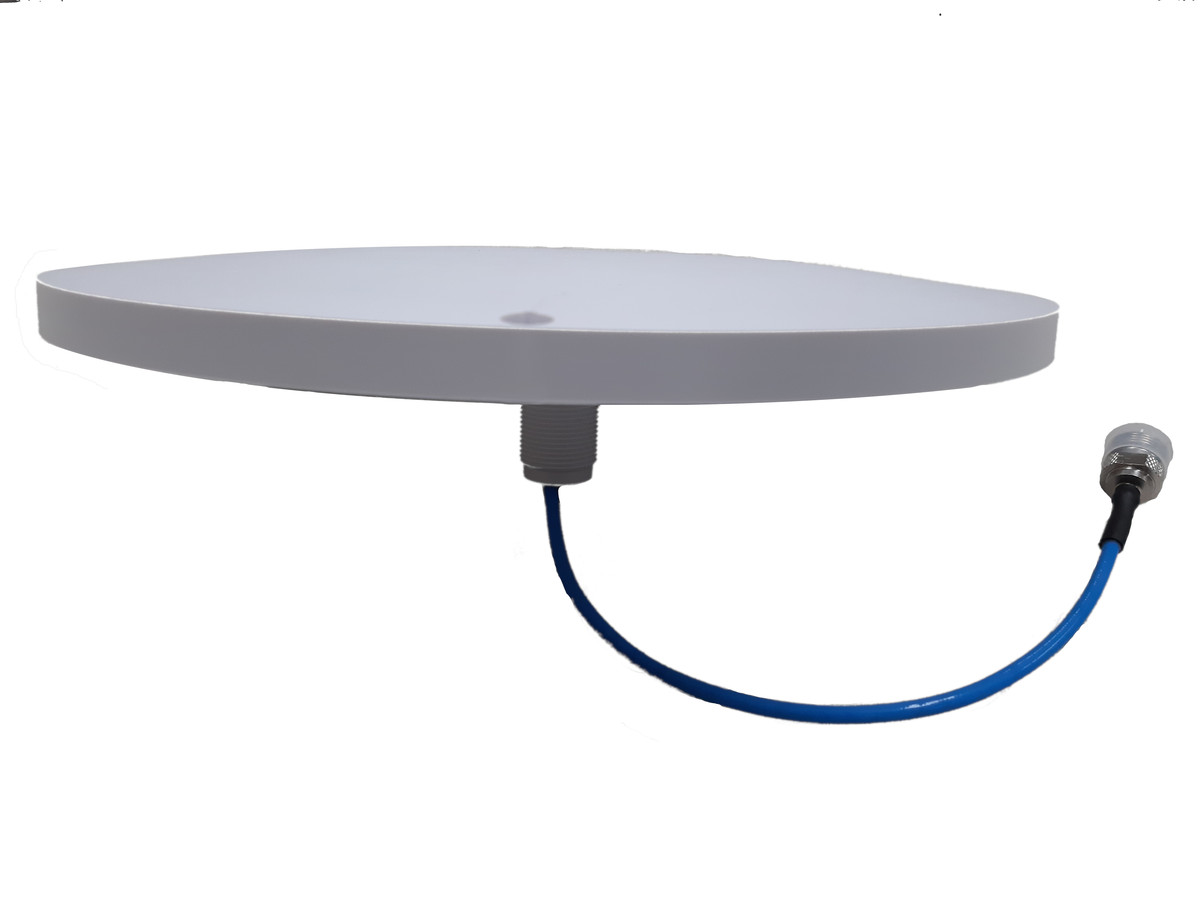

RFI’s Low profile UHF/LTE DAS antenna is a high-performance, PIM-rated DAS antenna, offering omnidirectional coverage solutions to suit indoor UHF & LTE coverage in a low-profile aesthetic. The multi-band capability covers both UHF and 4G bands including 380-520MHz, 690-960MHz & 1710-2700MHz, eliminating the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications
Features Include:
• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -150dBc PIM performance
• 1 x 300mm tail terminated with N type female connector
Specifications:
| Connector | N female |
| Frequency Range | 1710 – 2700, 380 – 520, 698 – 960 |
| Base Gain | 0 to 3 dBd |
| Nominal impedance | 50 |
| Power w | 50 |
| Nominal Gain Dbi | 2 / 2.2 / 4.5 |
| Dimensions | 266(W) x 18(H) |
| VSWR | <2.5:1 / <2.0:1 / <2.0:1 |
| Termination | Single 300mm tail with N (F) connector |
| Construction | White ABS |
| Passive IM 3rd Order (2x20W) dBc | -150 |
| Brand | RFI |
| Weight [kg] | 0.33 |
