Description

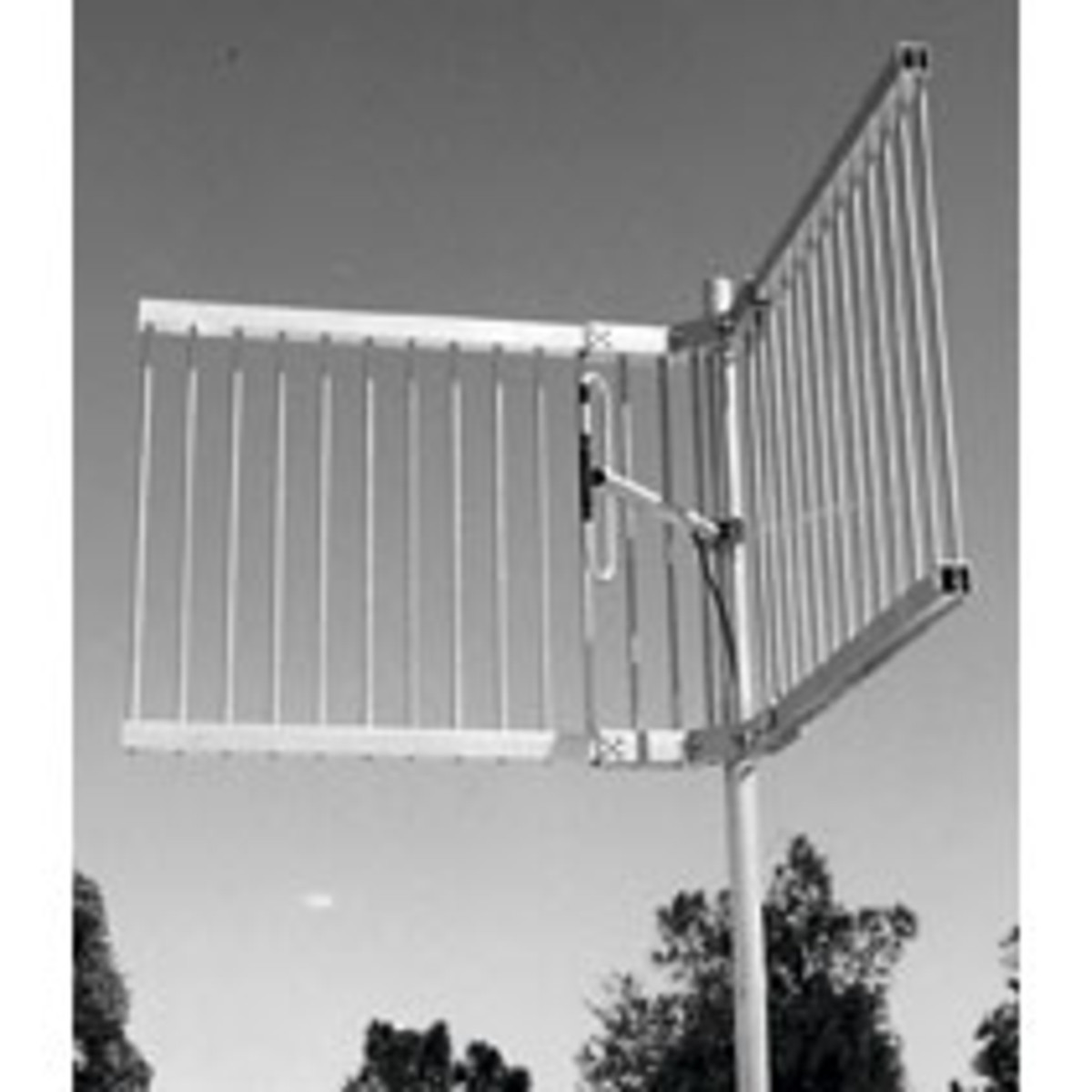

This is constructed with an aluminium grid-style back screen with close element spacing to maximise pattern control characteristics. The all-welded screen is of alodined aluminum finish for corrosion protection and the single folded dipole element is mounted using all stainless steel fittings. Features: -Extremely high front to back ratios and minimal sidelobe characteristics -Shipped unassembled for ease of handling, easily assembled on-site -Direct DC grounded for lightning protection and reduction of precipitation static noise -Covers either 136-162MHz or 148-174MHz (request band on order)
Specifications:
| Frequency Range | 136 – 174 |
| Base Gain | 8 to 11 dBd |
| Power w | 750 |
| Dimensions | 1300 x 1300 x 1200 |
| Polarisation | Vertical |
| VSWR | <1.5:1 |
| Termination | N female with short 9142 cable tail |
| Mounting area | Clamps to diam. 40-85mm, 1166mm apart (supplied) |
| Construction | Welded aluminum grid with alodined finish and stainless steel fittings |
| Passive IM 3rd Order (2x20W) dBc | <140 |
| Horizontal Beamwidth | 62° |
| Front Back ratio dB | 22 |
| Frequency MHz | 136 – 174 |
| Brand | RFI |
| Weight [kg] | 13 |
