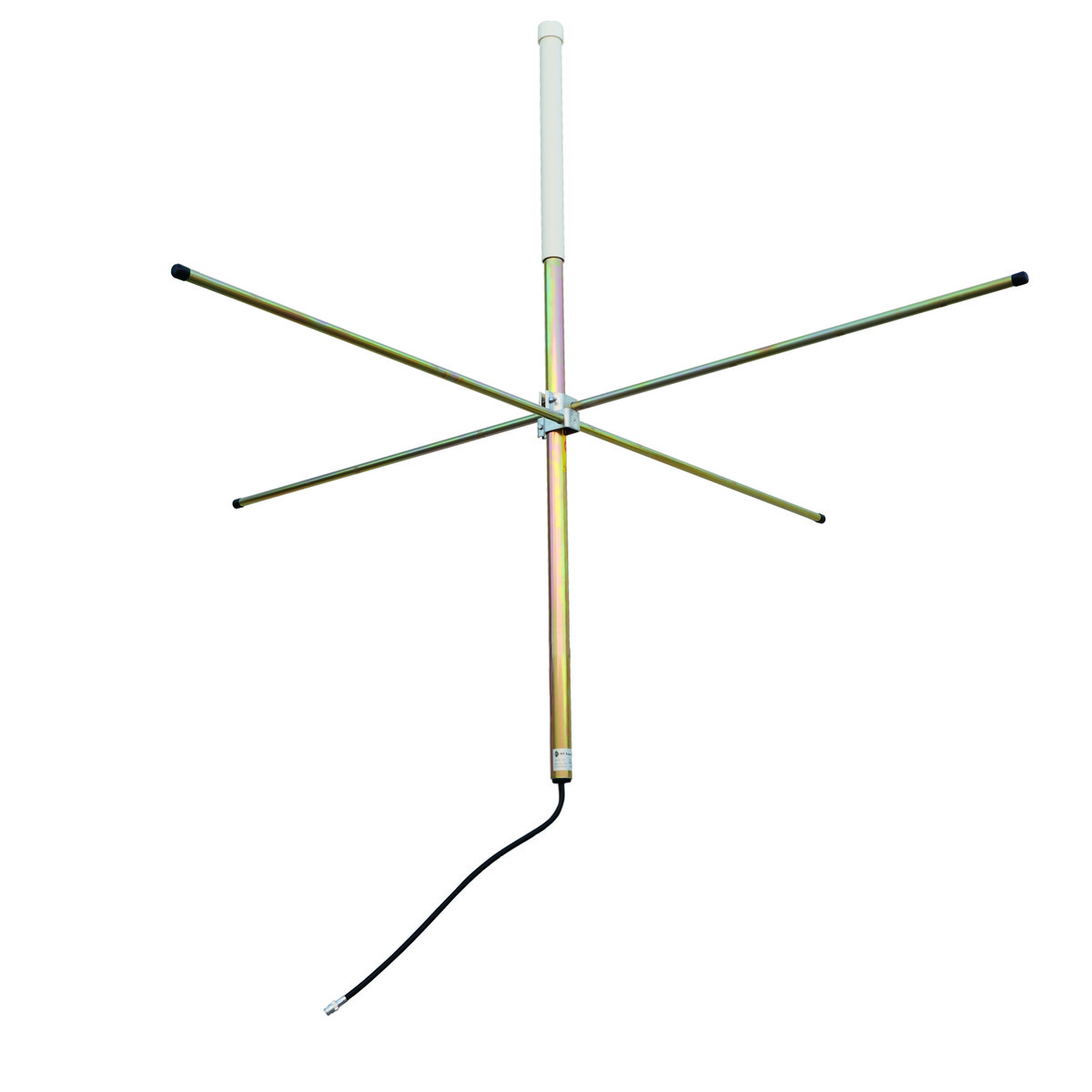

VHF Omnidirectional Unity Gain Adjustable Ground Plane 118-136MHz

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

This is a range of omnidirectional unity gain adjustable ground plane antennas ideal for local area coverage when a high gain antenna is not required or justified. The broad vertical beamwidth offers excellent null fill for consistent signal coverage. GP Series antennas are easily tuned in the field by adjusting the position of the ground plane elements.

$193.95

Description

Features: Electrically, the GP Series antenna is a quarter-wave radiating element with the radials acting as a counterpoise. These radial are of one-piece construction and utilize a unique single bolt clamping design. The antennas are DC grounded for superior lightning protection and the reduction of precipitation static noise. • Easily field tuned by adjusting the position of the radials • Lightweight and easy to mount • Broad vertical beamwidth for excellent null fill • Compact – Shipped disassembled for ease of handling

Specifications:

Frequency Range	118 – 136
Base Gain	0 to 3 dBd
Power w	200
Polarisation	Vertical
VSWR	<1.5:1
Termination	N female with 0.5m RG213 cable tail
Mounting area	500mm x 40mm diam. aluminum
Construction	Heavy-duty aluminum radiating element encased in a PVC radome
Tuned bandwidth	10MHz
Horizontal Beamwidth	Omni +/-0.5dB
Frequency MHz	118 – 136
Length [mm]	1500
Brand	RFI
Weight [kg]	3
