Description

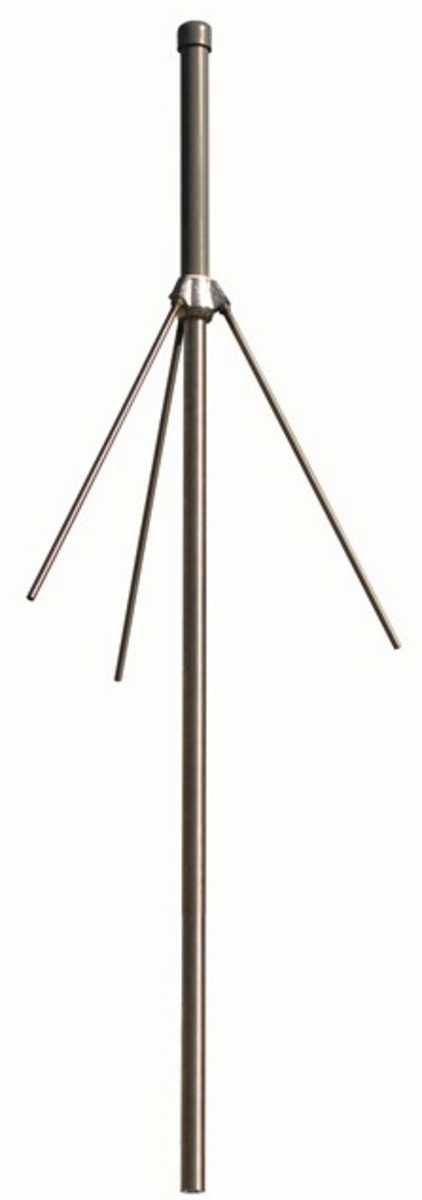

This is stainless steel, broadband, unity gain, monocone antenna offering full band coverage for the VHF Air Band. The design is rugged and long-lasting, with stainless steel radials that screw into a heavy-duty chrome plated hub, the design will withstand even the most enduring and extreme environments.The antennas are DC grounded for superior lightning protection and the reduction of precipitation static noise. • Stainless steel rugged design • Full band design • Easy to assemble. Quick deployment • Broad vertical beamwidth for excellent null fill • Shipped disassembled for ease of handling
Specifications:
| Frequency Range | 118 – 136 |
| Base Gain | 0 to 3 dBd |
| Wind Load (Thrust) @ 160km/h N | 240 |
| Torque @ 160km/h Nm | 45 |
| Power w | 200 |
| Polarisation | Vertical |
| VSWR | <1.5:1 |
| Termination | N female |
| Mounting area | 500mm x 38mm diam. aluminium |
| Construction | Stainless steel construction, with abs radome |
| Tuned bandwidth | Full band |
| Horizontal Beamwidth | Omni +/-0.5dB |
| Frequency MHz | 118 – 136 |
| Length [mm] | 1500 |
| Brand | RFI |
| Weight [kg] | 4.5 |
