Name: Unity Gain Broadband Fiberglass Enclosed Dipole Antenna 850-960MHz - Digital Sydney Communications
Price: 292.91 AUD
Availability: InStock
Rating: 5.00 (1 reviews)

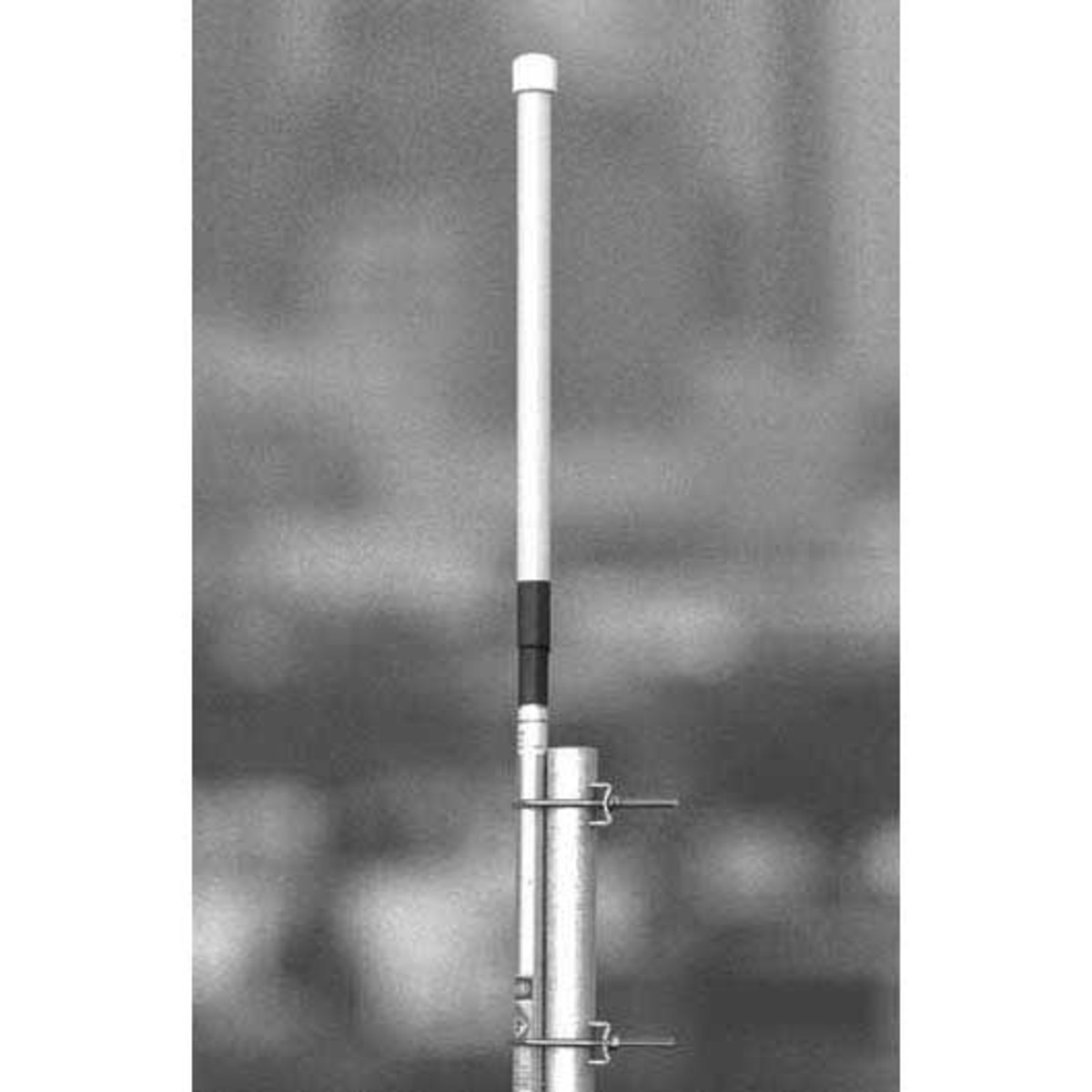

Unity Gain Broadband Fiberglass Enclosed Dipole Antenna 850-960MHz

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

These are a range of fiberglass enclosed vertical dipoles, ideal in point to multipoint, control station and local coverage area applications. The antenna has great bandwidth characteristics, making for a versatile solution easily accommodating both transmit and receive portions of many of the common 700/800MHz operating bands.

$292.91

Description

This unity gain broadband dipole antenna is designed to cover the entire 850-960MHz frequency band. Suitable applications include low power base stations, RF Control Stations, and other applications requiring a wide operating frequency bandwidth. COD8-8596 Features: • Available in wideband coverage, eliminating the need for spot tuned antennas • Excellent null fill coverage • Omnidirectional unity gain performance

Specifications:

Frequency Range	850 – 930
Base Gain	0 to 3 dBd
Wind Load (Thrust) @ 160km/h N	>240
Torque @ 160km/h Nm	5
Power w	100
Nominal Gain Dbi	2
Termination	N female bulkhead
Mounting area	315mm x 25mm diam. alodined aluminum
Construction	Alodined aluminum elements with white fiberglass radome
Tuned bandwidth	Full
Horizontal Beamwidth	Omni +/- 0.5dB
Frequency MHz	850 – 930
Length [mm]	800
Brand	RFI
Weight [kg]	0.5
