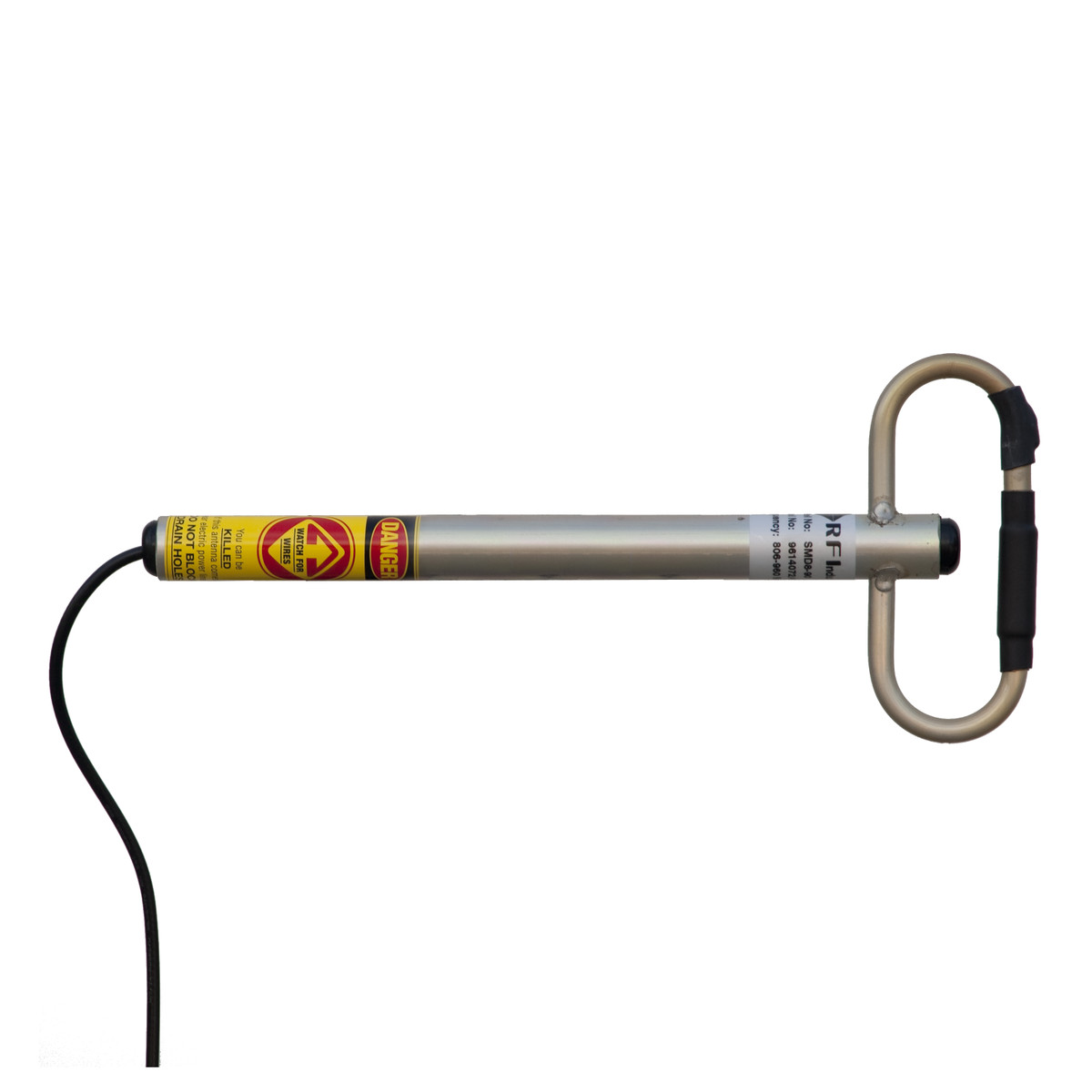

Description
Features: The antenna is internally DC grounded for lightning protection and the reduction of precipitation static noise.
• Provides either directional or largely omnidirectional radiation pattern
• All welded and alodined aluminum construction Please note, we recommend against phasing the SMD8-90 antenna as the required accuracy is far too critical to be adequately controlled in the field. Thus, we do not publish any information to assist in the phasing of our 800 MHz sides mount dipole antennas.
Specifications:
| Frequency Range | 806 – 960 |
| Power w | 200 |
| Polarisation | Vertical |
| VSWR | <1.5:1 |
| Termination | N female with short 9142 cable tail |
| Mounting area | 100mm x 25mm diam. alodined aluminum |
| Construction | All welded aluminum with alodined finish |
| Tuned bandwidth | Full. No tuning required |
| Horizontal Beamwidth | Typically 213° at ¼ ? antenna – mast spacing |
| Frequency MHz | 806 – 960 |
| Length [mm] | 300 |
| Brand | RFI |
| Weight [kg] | 0.2 |
