Description
• Performance – Exhibits 3 dB improvement in performance over a 1/4 wave whip
• Versatile – Ground independent design allows use in alternative mounting locations
• Rugged – The transformer circuit is housed within a high impact thermoplastic molding which is virtually indestructible
• Unique termination method simplifies installation and re-cabling in the field
• Designed, manufactured and patented in Australia [Australian Patent # 596830 and 656793]

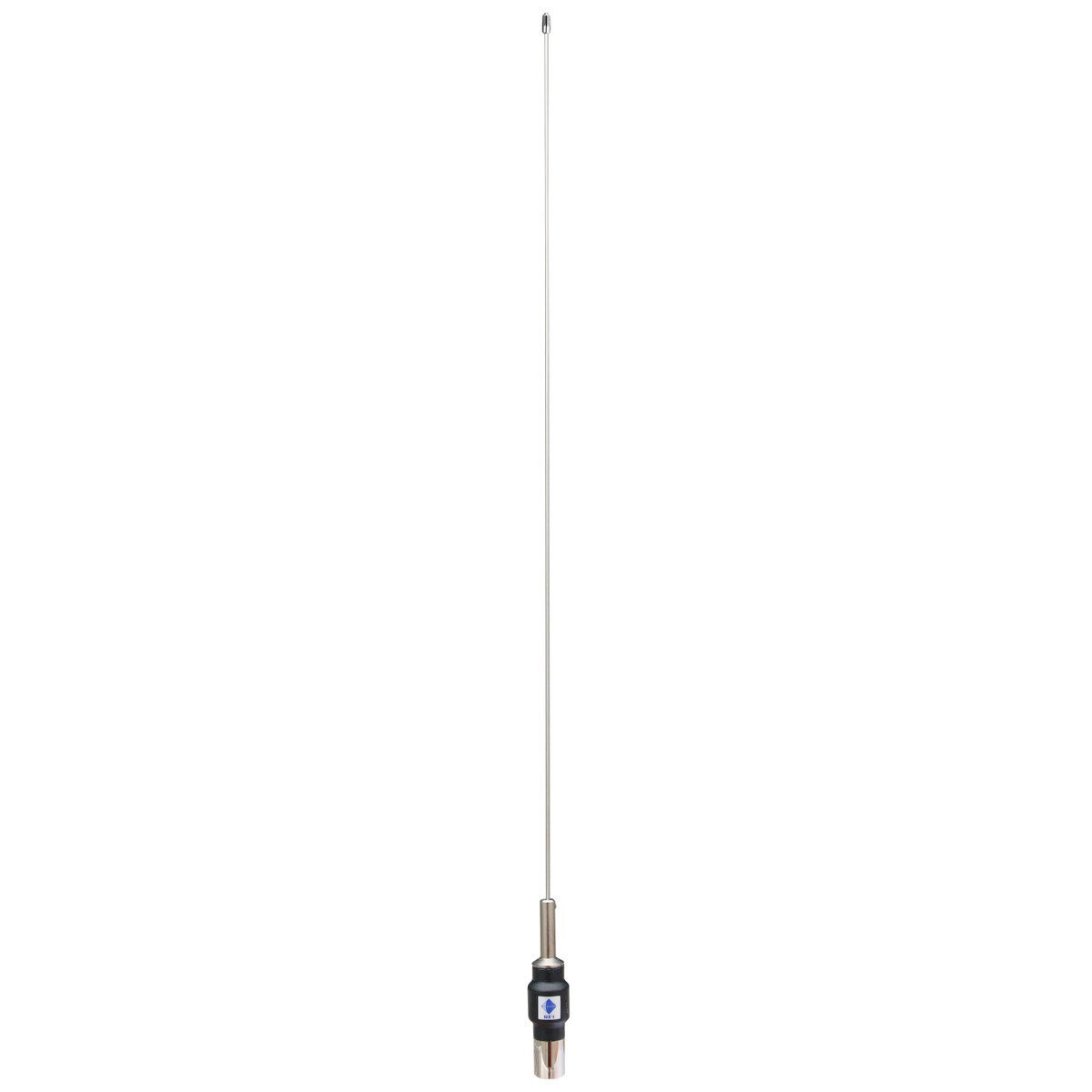

(1) Mopole antennas such as the CD28 have been shown to exhibit a 3dB improvement in received signal level in the field when compared to a ¼ wave whip however in pattern tests exhibit only 1.5 to 2dB over a ¼ wave (equivalent to 1.5-2dBi). This improvement in performance can be attributed to a lower radiation angle level of these ground-independent antennas.
(2) Available pre-terminated with 5m 8058 RG58C/U. Use -73 or -53 suffix to replace -70 or -50 suffix
Specifications:
| Nominal Gain dBq | 3 |
| Packaging | Plastic Bag |
| Whip Material | 17-7 PH tapered stainless steel |
| Whip Length mm | 1340 |
| Cable And Connector | 5m RG58C/U – No connector |
| Tuning | Factory tuned to 161 MHz |
| Nominal impedance | 50 |
| Power w | 50 |
| Polarisation | Vertical |
| VSWR | 4 MHz @ 1.5:1 / 8 MHz @ 2.0:1 |
| Tuned bandwidth | 4 MHz @ 1.5:1 / 8 MHz @ 2.0:1 |
| Brand | RFI |
