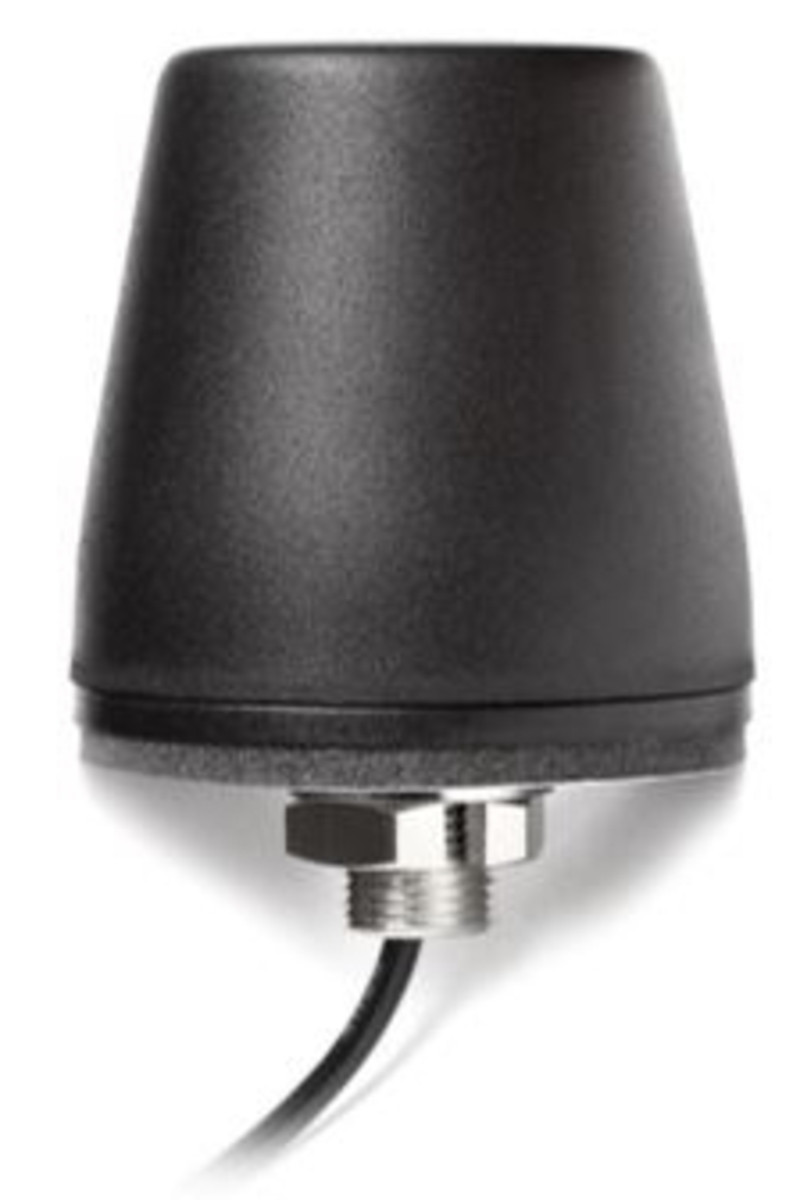

RFI Ultra-Compact Omnidirectional 4G LTE Antenna 698-2700MHz; 1.5m SMA(M)

  1. Homepage
  2. Antennas
  3. RFI Ultra-Compact Omnidirectional 4G LTE Antenna 698-2700MHz; 1.5m SMA(M)
RFI Ultra-Compact Omnidirectional 4G LTE Antenna 698-2700MHz; 1.5m SMA(M)
RFI Ultra-Compact Omnidirectional 4G LTE Antenna 698-2700MHz; 1.5m SMA(M) - Image 2
RFI Ultra-Compact Omnidirectional 4G LTE Antenna 698-2700MHz; 1.5m SMA(M) - Image 3
RFI Ultra-Compact Omnidirectional 4G LTE Antenna 698-2700MHz; 1.5m SMA(M) - Image 4
RFI Ultra-Compact Omnidirectional 4G LTE Antenna 698-2700MHz; 1.5m SMA(M) - Image 5
RFI Ultra-Compact Omnidirectional 4G LTE Antenna 698-2700MHz; 1.5m SMA(M) - Image 6

RFI Ultra-Compact Omnidirectional 4G LTE Antenna 698-2700MHz; 1.5m SMA(M)

This is an ultra-compact omnidirectional 4G LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7GHz. The antenna features an attractive, compact housing that can be used in both indoor and outdoor applications. It is fitted with an 11.9mm stud mount incorporating an integrated double-sided foam seal and is IP69 rated.

$28.38

Categories: , Tag:

Description

Features:
– Covers all 4G LTE & 3G cellular bands – Screw mount with anti-rotation mechanism
– Ground plane independent – Ultra-compact design: Ø 50 x 50.8 mm
– Weatherproof: IP69



SPECIFICATIONS:

Packaging Clear Bag
Whip Length mm 50.8
Cable And Connector 1.5m LL100 coax terminated with SMA male connector
Frequency Range 1710 – 2170, 2300 – 2700, 698 – 960
Nominal impedance 50
Power w 25
Nominal Gain Dbi 3.6dBi / 3.2 dBi / 1.9 dBi
VSWR <2.5:1
Radome Diameter Mm 50mm
Tuned bandwidth Full. No tuning required
Frequency MHz 698 – 960 / 1710 – 2170 / 2300 – 2700
Brand RFI

Reviews

There are no reviews yet.

Be the first to review “RFI Ultra-Compact Omnidirectional 4G LTE Antenna 698-2700MHz; 1.5m SMA(M)”

Your email address will not be published. Required fields are marked *
